Hope-Wish develops cooled/uncooled IR lenses, thermal modules and night vision devices, with OEM & ODM available.

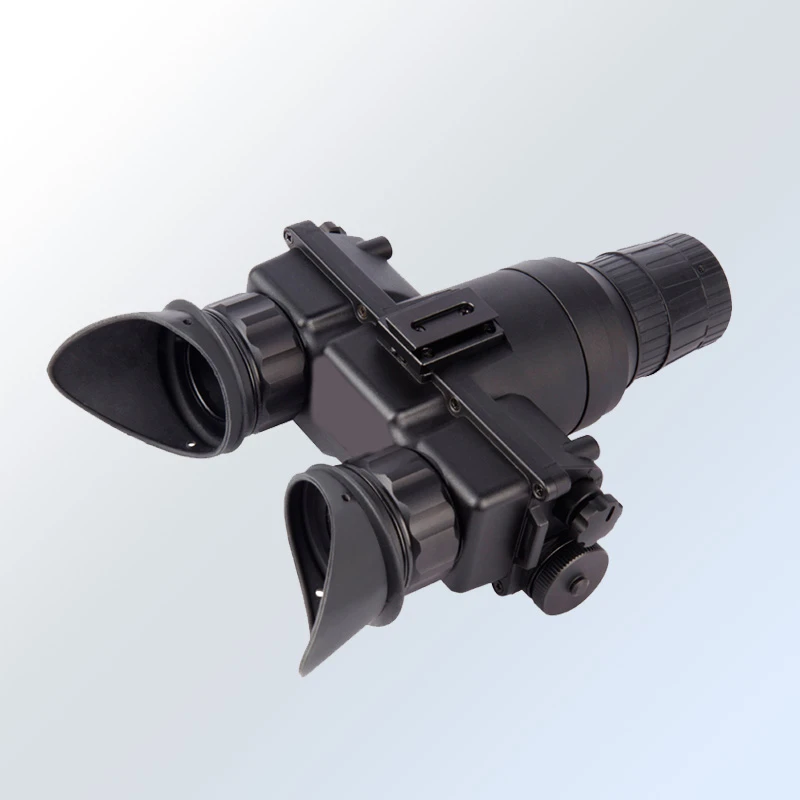

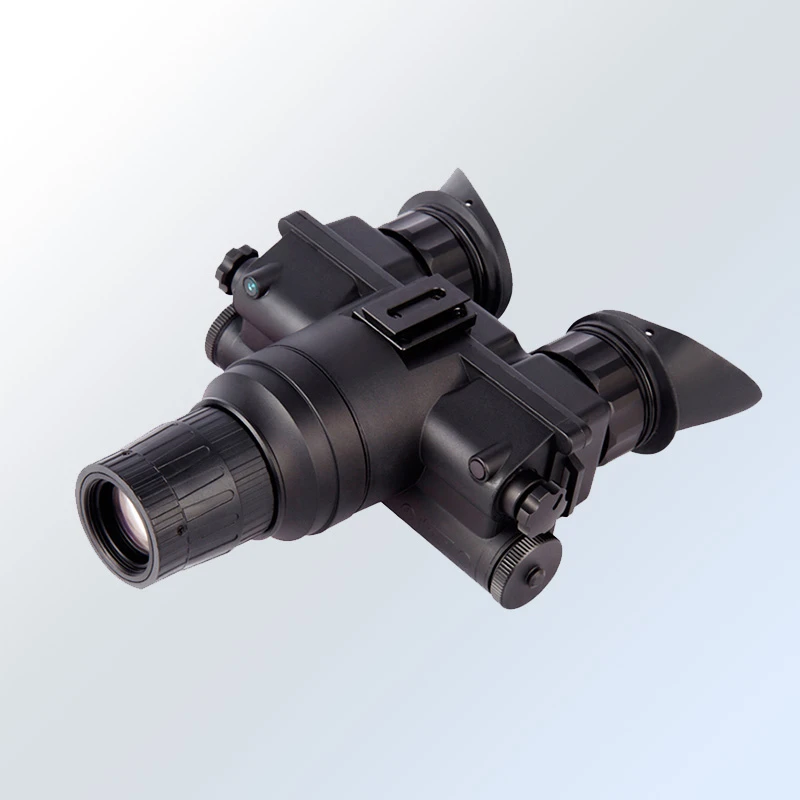

HP-DG2051 and HP-DG3051 are lightweight, compact multifunctional night-vision device. It supports head-mount and helmet-mount installation for convenient night-time observation.
Place of Origin: China
Model Number: HP-DG2051 DG3051
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW
HP-DG2051 and HP-DG3051 are lightweight, compact multifunctional night-vision device. It supports head-mount and helmet-mount installation for convenient night-time observation. Its binocular-monocular design delivers a comfortable viewing experience. The built-in long-range infrared illuminator ensures clear observation in total darkness. It works with CR123 or AA batteries without extra accessories required.
KEY FEATURES
IP67 Ingress Protection Capable of 1-hour operation under 1-meter water depth, adapting to rainy, dusty and other harsh field scenarios.
Helmet-mount Direction-sensing Power Control Smart on-off triggered by lifting/lowering the unit, realizing quick status switch for hands-free night missions.
Flexible Dual-battery Solution with Zero Standby Power Loss Works with CR123 or AA batteries directly; batteries keep full charge inside holder during long idle periods.
Intelligent Auto IR Working Mode Ambient-light triggered IR illuminator auto-on/off, saving power while ensuring observation in total darkness.
High-performance Multi-layer AR Coating Reduces lens light reflection, increases light throughput and enhances overall night-scene imaging quality.
Light-adapted Image Stabilization with Anti-glare Safeguard Consistent image brightness despite light changes; anti-glare cut-off function protects the core intensifier tube.
TECHNICAL SPECIFICATIONS TABLE
|
Model |
HP-DG2051 |
HP-DG3051 |
|
IIT |
Gen2+ |
Gen3 |
|
Resolution (lp/mm) |
57-64 |
57-64 |
|
Photocathode type |
S25 |
GaAs |
|
S/N (dB) |
17-21 |
21-24 |
|
Luminous sensitivity (μА/lm) |
500-600 |
1500-1800 |
|
MTTF (hrs) |
10,000 |
10,000 |
|
Magnification |
1x |
1x |
|
FOV (deg) |
40 |
40 |
|
Detection distance (m) |
220-240 |
220-240 |
|
Diopter (deg) |
+5/-5 |
+5/-5 |
|
Lens system |
F1.2, 25.8mm |
F1.2, 25.8mm |
|
Range of focus (m) |
0.25--∞ |
0.25--∞ |
|
Dimensions (mm) |
149x121x51 |
149x121x51 |
|
Weight (g) |
413 |
413 |
|
Power supply (v) |
2.0-4.2V |
2.0-4.2V |
|
Battery type (v) |
CR123A (1) or AA (2) |
CR123A (1) or AA (2) |
|
Battery life (hrs) |
80(w/o IR) 40(w IR) |
80(w/o IR) 40(w IR) |
|
Operating temperature(℃) |
-40/+60 |
-40/+60 |
|
Environmental rating |
IP67 |
IP67 |
CUSTOMIZATION OPTIONS
Optical customization
Adjust magnification, objective aperture, light transmittance and image intensifier parameters.
Structural customization
Modify body size, interface type, IP rating and ergonomic structure.
Function customization
Customize brightness threshold, auto-protection parameters and intelligent sensing settings.
Accessory customization
Match infrared intensifier, sight bracket, eyecup and adaptive functional accessories.
Software customization
Customize display parameters, device protocols and supporting operation manuals.
Brand customization
Custom logo, neutral packaging and personalized product documentation.
OEM & ODM full development
Exclusive structural design and customized functional integration solutions.
APPLICATION
Night patrol
Night hunting
Outdoor field exploration
Field search, rescue
