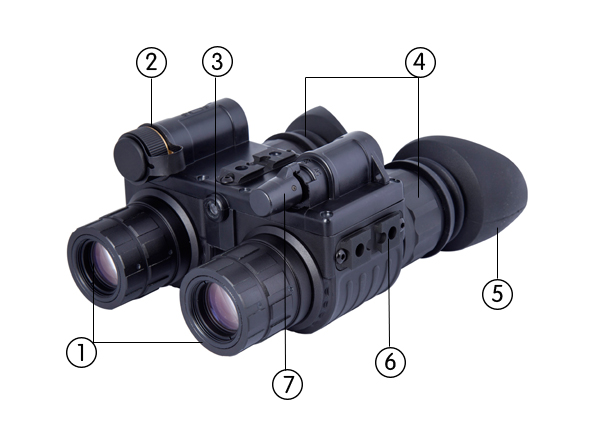

Structure name:
1. Objective lens
2. Battery compartment
3. IR illuminator
4. Eyepiece
5. Rubber eye cap
6. Mounting part
7. Operation button (switches both the monocular and IR illuminator on/off)
Products
Hope-Wish develops cooled/uncooled IR lenses, thermal modules and night vision devices, with OEM & ODM available.
HP-DB2021 Night Vision Goggles is a compact and lightweight binocular night-vision device.
Place of Origin: China
Model Number: HP-DB2021
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW
HP-DB2021 Night Vision Goggles is a compact and lightweight binocular night-vision device. Equipped with two high-performance image intensifier tubes, it delivers sharp, clear imagery even under near-total darkness. The built-in IR illuminator supports map-reading and observation in complete darkness. It supports handheld operation, head mount or helmet mount for hands-free use. It can also couple with cameras and camcorders for night-time recording and documentation for law-enforcement missions.
KEY FEATURES
IP67 Waterproof & Dustproof
Supports 1-hour submersion at 1-meter depth, ensuring stable performance in harsh outdoor conditions.
Direction-Sensing Automatic Switch
Automatically powers off when lifted up and resumes operation when lowered, delivering convenient hands-free control for helmet-mounted scenarios.
Automatic Brightness Adjustment & Anti-glare Protection
Maintains stable image output amid varying ambient light; auto-shuts down above 40Lux within 10s to protect the image intensifier tube.
Ultra-broadband Multi-layer Anti-reflection Coating
Reduces lens surface reflection and light loss, boosting light transmittance for clearer night observation.
Standby Zero-consumption Design
Battery suffers no power drain inside the holder during long-term standby, effectively extending battery service life.
Flexible Helmet Mount with Free Adjustment
The helmet bracket can be freely adjusted to fit different head sizes, realizing comfortable and reliable wearing experience.
TECHNICAL SPECIFICATIONS TABLE
|
Model |
HP-DB2021 |
|
Magnification |
1X |
|
Objective lens |
25.8mm |
|
Usage method |
Headwear/handheld |
|
IIT |
Gen2+ |
|
Weight |
798g(1100g incl helmet) |
|
Dimension |
142X110X55mm |
|
Resolution |
48-60lp/mm |
|
S/N(dB) |
17-21 |
|
Luminous sensitivity(μA/lm) |
550-650 |
|
Range of focus (m) |
0.25--∞ |
|
IR illuminator |
808nm & 850nm |
|
Image color |
Green |
|
Diopter (deg) |
+5°/-5° |
|
Power supply |
2.0-4.2V |
|
Battery type (v) |
CR123A (1) |
|
Operating temperature |
-40/+60 ℃ |
|
Storage temperature |
-30/+50 ℃ |
|
Relative humidity |
98% |
|
FOV |
40° |
|
Environmental rating |
IP66 |
Structure name:
1. Objective lens
2. Battery compartment
3. IR illuminator
4. Eyepiece
5. Rubber eye cap
6. Mounting part
7. Operation button (switches both the monocular and IR illuminator on/off)
CUSTOMIZATION OPTIONS
Optical customization
Adjust magnification, objective aperture, light transmittance and image intensifier parameters.
Structural customization
Modify body size, interface type, IP rating and ergonomic structure.
Function customization
Customize brightness threshold, auto-protection parameters and intelligent sensing settings.
Accessory customization
Match infrared intensifier, sight bracket, eyecup and adaptive functional accessories.
Software customization
Customize display parameters, device protocols and supporting operation manuals.
Brand customization
Custom logo, neutral packaging and personalized product documentation.
OEM & ODM full development
Exclusive structural design and customized functional integration solutions.
APPLICATION
Night Patrol
Night hunting
Field search, rescue
Outdoor field exploration
