Hope-Wish develops cooled/uncooled IR lenses, thermal modules and night vision devices, with OEM & ODM available.

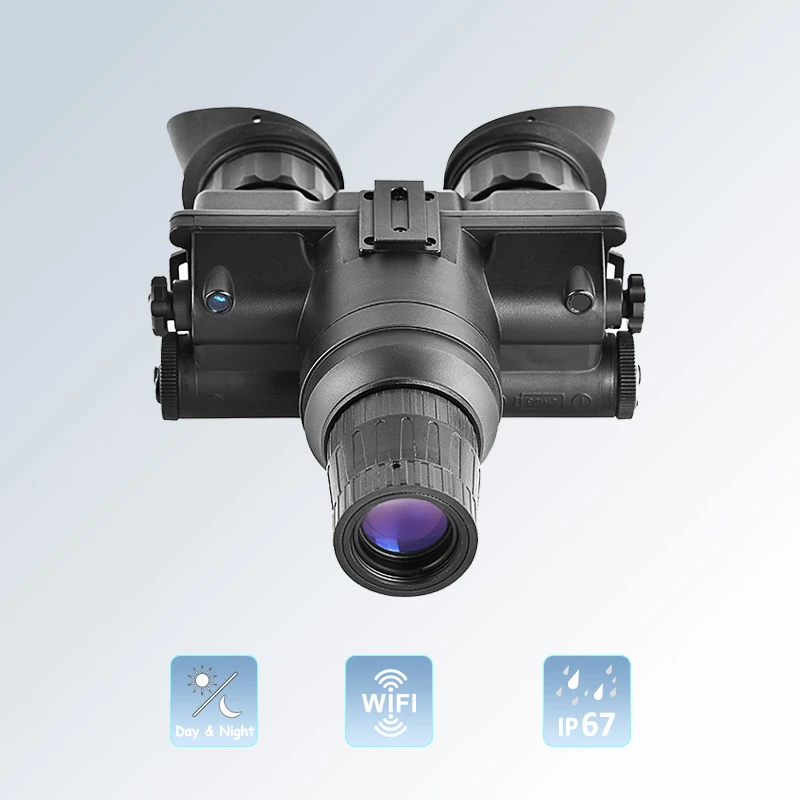

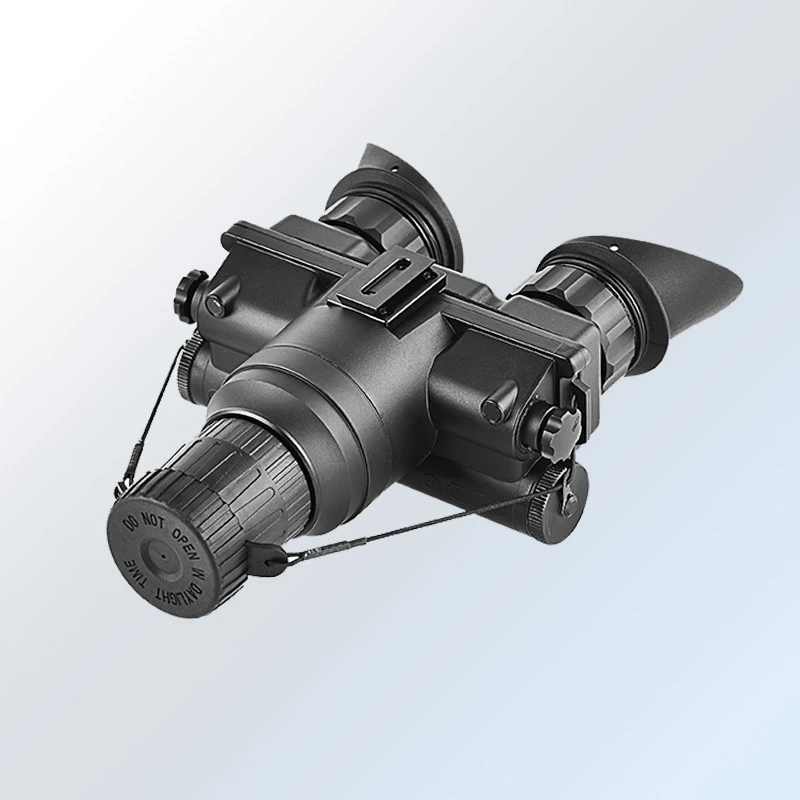

HP-NG2051 compact multifunctional night-vision unit supports head and helmet mounting for hands-free night observation.
Place of Origin: China
Model Number: HP-NG2051
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW
HP-NG2051 compact multifunctional night-vision unit supports head and helmet mounting for hands-free night observation. Adopting a comfortable binocular layout, it features built-in long-range IR illuminator for clear vision in complete darkness. Compatible with CR123 and AA batteries, it provides 80-hours long standby for outdoor operations.
KEY FEATURES
Customizable Core Image Tube Configure Gen 2+ or quasi-Gen3 intensifier tube according to actual mission and cost-control needs.
Smart Helmet-mount Operation Enable hands-free viewing via headset or helmet installation. Auto power-off triggers once the unit is flipped upward.

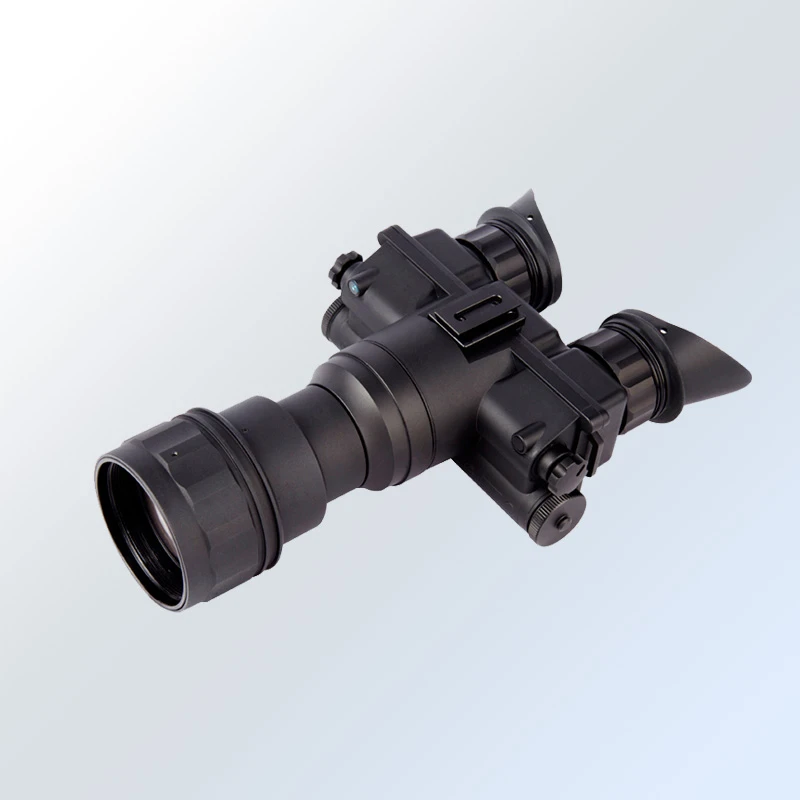

Interchangeable Optics for Variable Magnification Swap objective lenses to alter magnification; 4× extender and 6× lens are offered for long-range observation.
Automatic Light Sensing Protection Mechanism Real-time image brightness tuning; excessive incoming light triggers auto shutdown or brightness reduction for anti-dazzle protection.
High-efficiency Multi-layer AR Coating Minimizes lens-surface broadband reflection and light energy loss, maximizing light throughput for clearer night scenes.
Optimized Field-oriented Features Zero standby power loss prevents battery waste during idle periods; optional IP68 ingress protection adapts to severe outdoor conditions.
TECHNICAL SPECIFICATIONS TABLE
|
Model |
HP-NG2051 |
|
Enhancement Tube |
Gen2+/Super Gen2+ |
|
Resolution (lp/mm) |
48-65 |
|
Cathode Surface |
S25 |
|
Signal to Noise Ratio (dB) |
17-21 |
|
Optical Sensitivity (microampere/lumens) |
550-650 |
|
Trouble-free Time(h) |
10000 |
|
Magnification |
1x |
|
FOV |
40° |
|
Diopter Adjustment Range |
+5/-5 |
|
Lens system(mm) |
F1.2, 25.8 |
|
Objective Lens Adjustment Range |
0.25—∞ |
|
Volume(mm) |
150x121x58 |
|
Weight(g) |
461(770 with helmet) |
|
Power Supply Voltage (V) |
2.0-4.2 |
|
Battery Type |
CR123A (1) or AA (2) |
|
Continuous working time (h) |
80h（Without Infrared） |
|
40h（Infrared） |
|
|
Operational temp. (°C ) |
-40/+60 |
|
Dustproof and Waterproof Grade |
IP68(Optional Accessories) |
CUSTOMIZATION OPTIONS
Optical customization
Adjust magnification, objective aperture, light transmittance and image intensifier parameters.
Structural customization
Modify body size, interface type, IP rating and ergonomic structure.
Function customization
Customize brightness threshold, auto-protection parameters and intelligent sensing settings.
Accessory customization
Match infrared intensifier, sight bracket, eyecup and adaptive functional accessories.
Software customization
Customize display parameters, device protocols and supporting operation manuals.
Brand customization
Custom logo, neutral packaging and personalized product documentation.
OEM & ODM full development
Exclusive structural design and customized functional integration solutions.
APPLICATION
Night patrol
Night hunting
Outdoor field exploration
Field search, rescue
