Hope-Wish develops cooled/uncooled IR lenses, thermal modules and night vision devices, with OEM & ODM available.

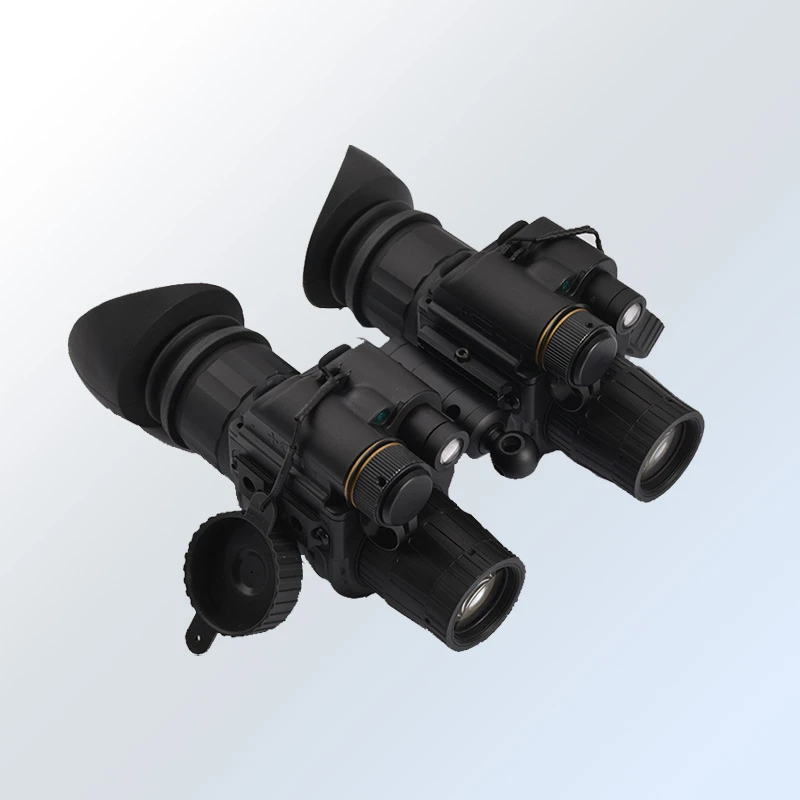

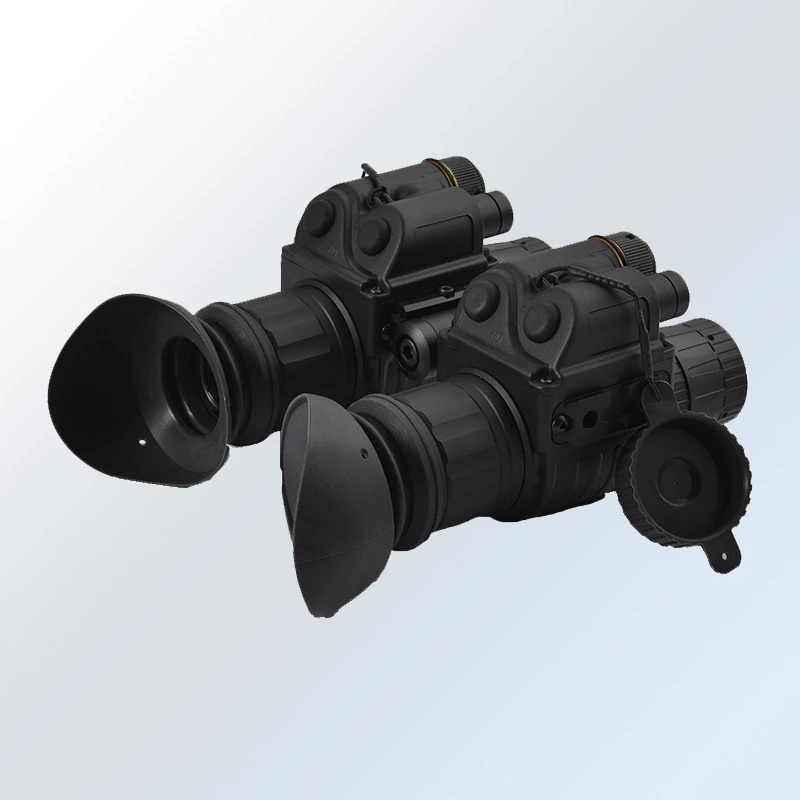

Engineered for field flexibility, the HP-DM2011 individual night-vision device supports multiple installation modes. Users can wear it on head or helmet for continuous hands-free surveillance, or connect it to imaging equipment to record night-scene evidence and observation videos.
Place of Origin: China
Model Number: HP--DM2011
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW
Engineered for field flexibility, the HP-DM2011 individual night-vision device supports multiple installation modes. Users can wear it on head or helmet for continuous hands-free surveillance, or connect it to imaging equipment to record night-scene evidence and observation videos.
KEY FEATURES
Waterproof and dustproof up to IP68 level (optional)
Direction-sensing automatic switch: When you don’t need to use the device temporarily, you can press a button on the helmet to lift the device up to the top position and then let go, and the device will automatically turn off.
When it is necessary to continue to use, press the same button to put down the device to the observation position, and the device will automatically return to the working state at this time.
The magnification can be changed by changing the objective lens, optional 3x, 5x or 6x lens
Optional separate infrared enhancer
Standby zero consumption: When not in use for a long time, the battery will not lose power when placed in the battery holder
TECHNICAL SPECIFICATIONS TABLE
|
Model |
HP-DM2011 |
|
IIT |
GEN2 |
|
Eye protection mask |
YES |
|
Anti-strong light automatically |
YES |
|
Helmet holder |
reversible and demountable easily |
|
Magnification |
1x |
|
Detective distance(M) |
200~250 |
|
Recognition distance(M) |
150~200 |
|
FOV(deg) |
40° |
|
Objective lens adjustment |
0.25~~∞ |
|
Diopter adjustment |
±5 |
|
Eye relif diameter |
15mm |
|
Eye relif distance |
15mm |
|
Eyes distance range |
57~73mm |
|
Battery type |
1.5V(CR123) lithium cells(2) |
|
Power supply |
3V |
|
Continuous working time |
40hours with the IR on,80hors with the IR off |
|
Dimensions |
145*125*65mm |
|
Net weight |
490g |
|
Operating temperature range |
-40℃~~~+40℃ |
|
Using life |
10000hours |
CUSTOMIZATION OPTIONS
Optical customization
Adjust magnification, objective aperture, light transmittance and image intensifier parameters.
Structural customization
Modify body size, interface type, IP rating and ergonomic structure.
Function customization
Customize brightness threshold, auto-protection parameters and intelligent sensing settings.
Accessory customization
Match infrared intensifier, sight bracket, eyecup and adaptive functional accessories.
Software customization
Customize display parameters, device protocols and supporting operation manuals.
Brand customization
Custom logo, neutral packaging and personalized product documentation.
OEM & ODM full development
Exclusive structural design and customized functional integration solutions.
APPLICATION
Night patrol
Night hunting
Outdoor field exploration
Field search, rescue
