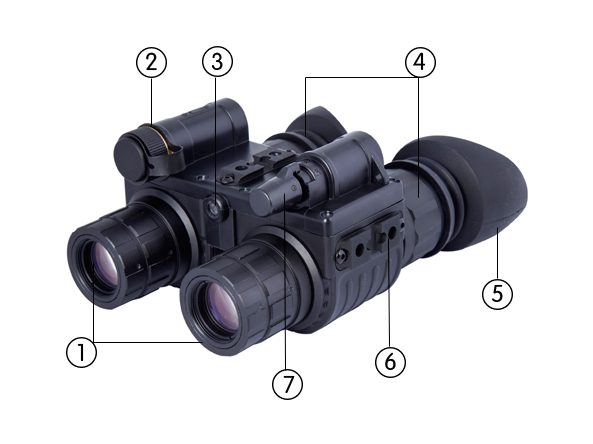

Structure name:
1. Objective lens
2. Battery compartment
3. IR illuminator
4. Eyepiece
5. Rubber eye cap
6. Mounting part
7. Operation button (switches both the monocular and IR illuminator on/off)
Products
Hope-Wish develops cooled/uncooled IR lenses, thermal modules and night vision devices, with OEM & ODM available.

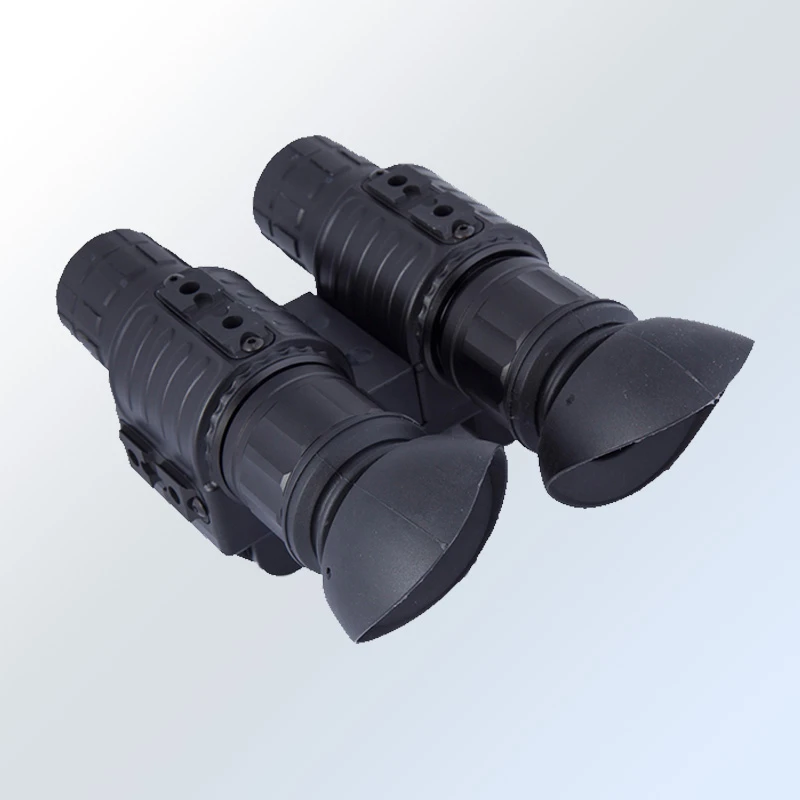

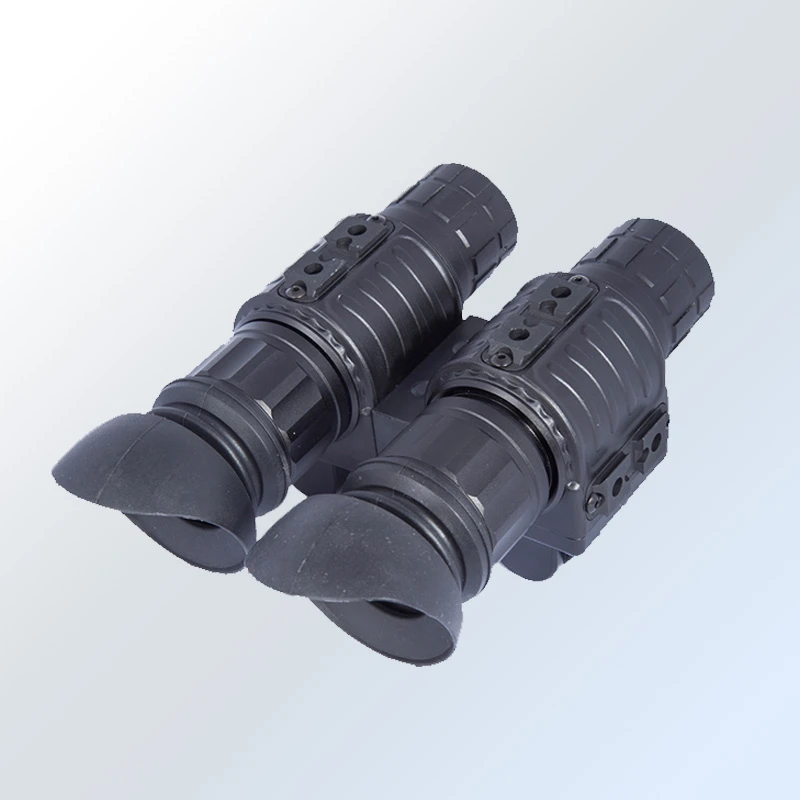

HP-NB2021 lightweight binocular night-vision goggle supports headset-mount, helmet-mount and handheld operation.
Place of Origin: China
Model Number: HP-NB2021
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW
HP-NB2021 lightweight binocular night-vision goggle supports headset-mount, helmet-mount and handheld operation. The 1× wide-field design enables fast target distance judgment. Equipped with dual high-performance image intensifier tubes, it provides clear low-light imaging. Binocular eyepiece design eases fatigue during long-time observation, suitable for night fishing, forest fire monitoring, home security and night driving.
KEY FEATURES
Flexible Operating & Mounting Options Handheld, head-wear and helmet-mount supported; high-power magnification lens can be configured upon request.
Customizable Intensifier Tube Configuration Choose Gen 2+ or quasi-Gen3 tubes to satisfy various night-observation task standards.
Night Recording with External Devices Interfaces with cameras, camcorders and smartphones to capture night-scene images and videos.
Field-oriented Optional Upgrades Auxiliary IR illuminator boosts performance in complete darkness; optional IP68 ingress protection for severe outdoor conditions.
High-efficiency Optical Coating Ultra-wideband anti-reflection coating minimizes light reflection loss and optimizes light throughput for superior imaging.
Reliable Protection & Power Management Anti-glare safeguard defends the core unit; zero-standby-consumption design avoids unnecessary battery power depletion.
TECHNICAL SPECIFICATIONS TABLE
|
Model |
HP-NB2021 |
|
Enhancement Tube |
Gen2+ |
|
Resolution (lp/mm) |
48-65 |
|
Cathode Surface |
S25 |
|
Signal to Noise Ratio (dB) |
17-21 |
|
Optical Sensitivity (microampere/lumens) |
550-650 |
|
Trouble-free Time(h) |
10000 |
|
Magnification |
1x |
|
FOV |
40° |
|
Diopter Adjustment Range |
+5/-5 |
|
Lens system(mm) |
F1.2, 25.8 |
|
Objective Lens Adjustment Range |
0.25—∞ |
|
Volume(mm) |
142X110X55 |
|
Weight(g) |
798(1100 with helmet) |
|
Power Supply Voltage (V) |
2.0-4.2 |
|
Battery Type |
1X CR123A Lithium BatteryOR AA X1 |
|
Continuous working time (h) |
80（Without Infrared） |
|
40（Infrared） |
|
|
Operational temp.(°C ) |
-40/+60 |
|
Dustproof and Waterproof Grade |
IP68(Optional Accessories) |
Structure name:
1. Objective lens
2. Battery compartment
3. IR illuminator
4. Eyepiece
5. Rubber eye cap
6. Mounting part
7. Operation button (switches both the monocular and IR illuminator on/off)
CUSTOMIZATION OPTIONS
Optical customization
Adjust magnification, objective aperture, light transmittance and image intensifier parameters.
Structural customization
Modify body size, interface type, IP rating and ergonomic structure.
Function customization
Customize brightness threshold, auto-protection parameters and intelligent sensing settings.
Accessory customization
Match infrared intensifier, sight bracket, eyecup and adaptive functional accessories.
Software customization
Customize display parameters, device protocols and supporting operation manuals.
Brand customization
Custom logo, neutral packaging and personalized product documentation.
OEM & ODM full development
Exclusive structural design and customized functional integration solutions.
APPLICATION
Night patrol
Night hunting
Outdoor field exploration
Field search, rescue
