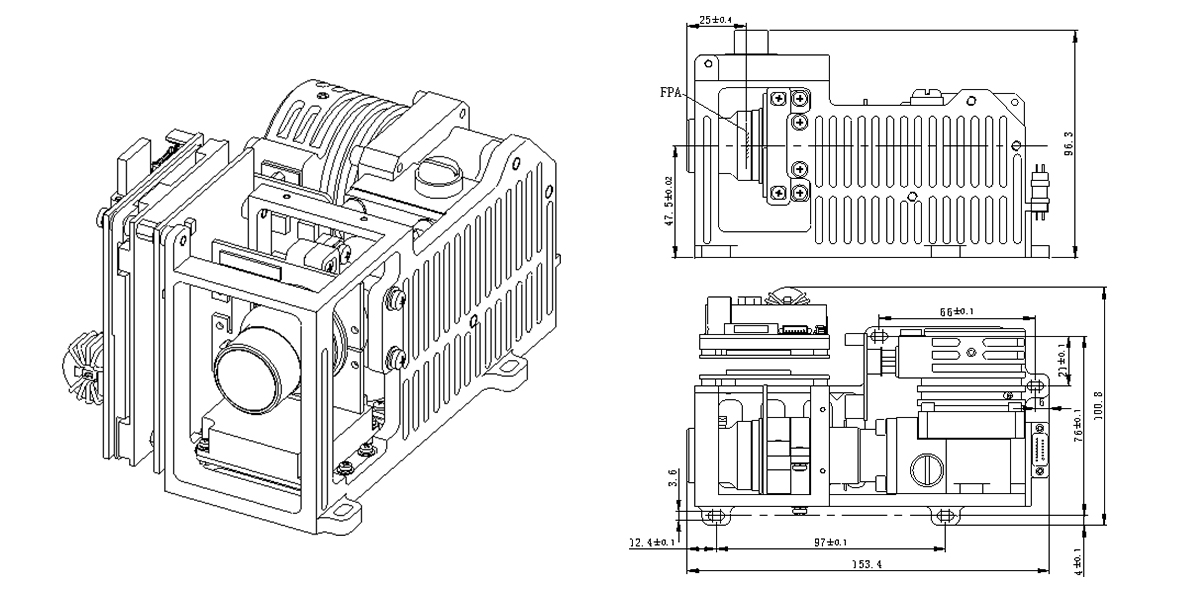

HP-CTC12 Cooled Infrared Core

The HP-CTC12 series thermal core are developed based on the latest SXGA infrared technology. They employ a high-sensitivity 1280×1024 10µm MCT focal plane array detector, and advanced digital circuitry and image processing algorithms provide fine and smooth images. They can be applied to key location deployments, urban security, border security, and other industries, and can operate stably and reliably under various complex environmental conditions.

September.04,2026

Share:

HP-CTC12 Cooled Infrared Core

KEY FEATURE

Detection sensitivity (NETD) up to 25mk, providing finer image quality, less affected by fog, rain, or snow, suitable for long-distance observation and monitoring, fire alarms, and other applications;



Excellent non-uniform image correction technology, with good image uniformity and dynamic range;



SDE image detail enhancement technology, producing smooth, noise-free images, with multiple pseudo-color and thermal black and white polar image formats available, highly adaptable, and easily detecting low-contrast hidden targets;



Supports multiple configuration scene modes to adapt to different application scenarios;

TECHNICAL PARAMETERS

Parameter

Specification

Detector

MCT detector (InSb detector optional)

Wavelength

3.7μm~4.8μm

Resolution

1280×1024

Pixel Pitch

10μm

NETD

≤20mK@25℃

Image Correction

Supports manual calibration, background calibration, automatic calibration time interval, and adjustable parameters

Electronic Magnification

1.0×~8.0× continuous electron zoom (step 0.1)

Power Supply

DC24V

Power Consumption

Maximum power consumption ≤50W, stable power consumption ≤25W

Operating Temperature

-40℃~+60℃

APPLICATION

It can be applied to industries such as key site placement and urban security, and can operate stably and reliably under various complex environmental conditions.
