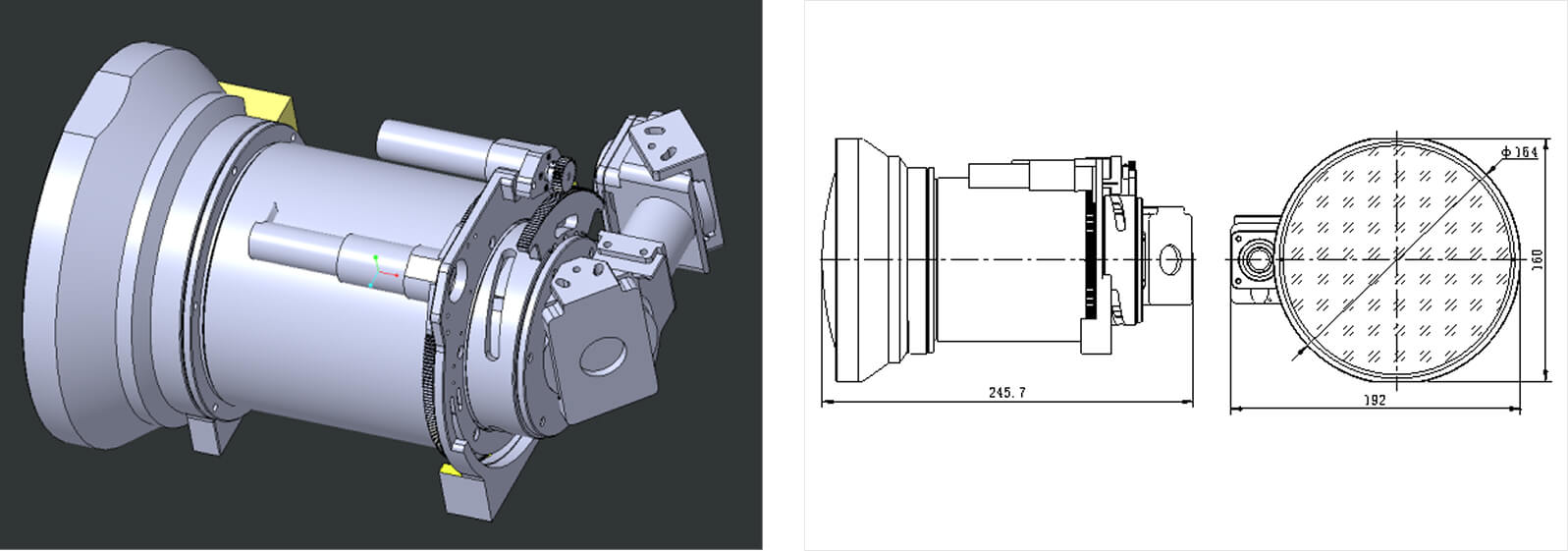

HP-CTC4060HD Cooled Continuous Zoom Thermal Lens
This is a customized high-performance mid-wave cooled continuous zoom thermal lens for long-distance high-precision monitoring. According to the client’s high-end photoelectric system integration requirements, we completed targeted optical and electrical customization, including temperature compensation optics, precise motor drive and reserved dedicated interface design.
September.11,2026
KEY FEATURE
Realize motorized continuous zoom & auto focus with accurate position feedback
Custom built-in focus temperature compensation function to eliminate ambient temperature imaging deviation
Ultra-low 0.2mrad optical axis deviation and ≤1.5% full-range low distortion
Reserved zoom drive and shutter interface for secondary system integration
Matched with high-resolution 1280×1024 / 640×512 cooled infrared detectors
TECHNICAL PARAMETERS
|
Parameter |
Specification |
|
Spectral Range |
3.7～4.8μm |
|
Resolution |
1280×1024 (10μm), 640×512 (15μm) |
|
Focal Length |
40～600mm continuous motorized zoom, auto focus |
|
FOV |
1.22°×0.98° ~ 18.2°×14.6° |
|
Distortion |
≤1.5% across all focal lengths |
|
Clear Aperture |
150mm |
|
Dimension |
246×192×160 mm |
|
Drive Voltage for Zoom/Focus |
DC12V±10% |
|
Optical Axis Deviation |
≤0.2 mrad |
|
Imaging Consistency |
Constant sharpness for infinity targets during zoom |
APPLICATION

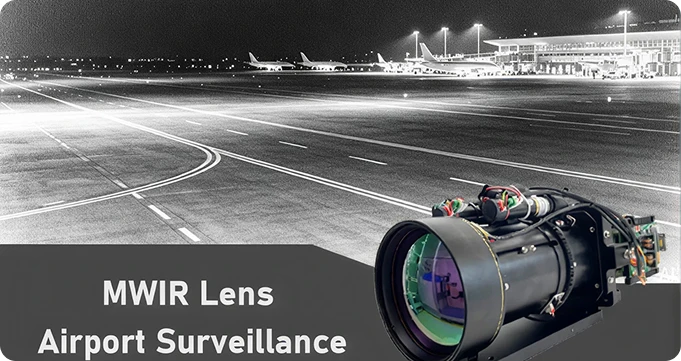

Widely applied in border coastal defense, long-range perimeter monitoring and high-end photoelectric reconnaissance equipment. This case proves our capability to provide professional ODM customized optical lens solutions for high-standard long-distance thermal imaging projects.
