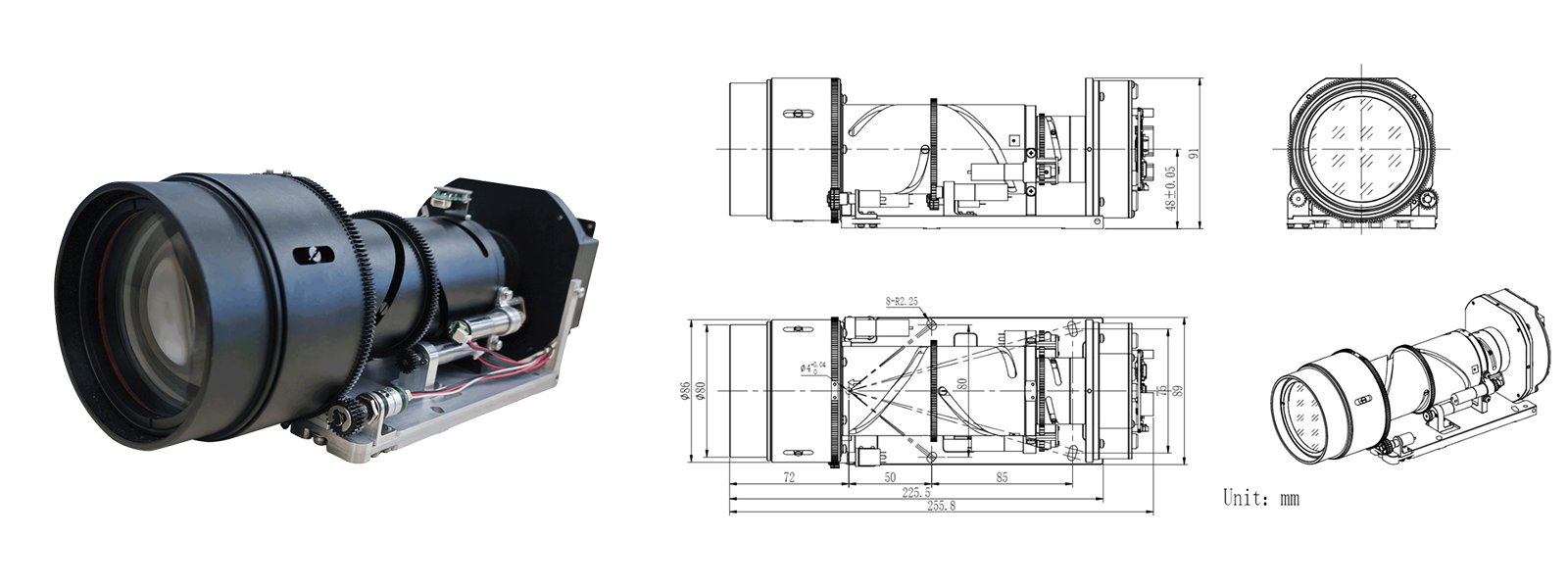

HP-HDZ4050 Long range Visible Light Module

The HP-HDZ4050 high-definition long-focus visible light camera uses a 1/1.8-inch high-performance CMOS imaging sensor with an effective pixel count of 2688×1520 (4 million). It is equipped with an anti-vibration, high coaxiality, long-focus continuous zoom infrared-corrected optical lens, which can meet the application needs of reconnaissance, surveillance, situational awareness and other applications.

September.02,2026

Share:

HP-HDZ4050 Long range Visible Light Module

KEY FEATURE

Large-aperture high-definition visible light camera, large-aperture telephoto lens, and high-magnification optical zoom meet various low-light and long-distance monitoring needs;



Built-in superior high-precision 3A algorithm, combined with a high-precision encoder, enables faster and more accurate focusing, and can quickly and automatically refocus to address blurring caused by changes in object distance, scene, and temperature;



Internal dedicated image processing enhancement algorithm enhances image details in environments with fog, moisture, and dust;



The lens features TCS temperature compensation, ensuring clear imaging even with drastic temperature changes;



The lens boasts excellent optical axis stabilization accuracy and optical axis consistency, ensuring clear and precise imaging, suitable for various scenarios such as tracking, reconnaissance, and surveillance, with stable and reliable performance;

TECHNICAL PARAMETERS

Parameter

Specification

Detection

Vehicle 18000m, Human 8000m;

Recognition

Vehicle 11000m, Human 5000m;

Image Sensor

4MP color-to-black CMOS sensor

Lens

25mm~500mm, 20× continuous optical zoom, autofocus

Mechanical Performance

Excellent low-temperature adaptability and mechanical clearance performance, 3-pixel axis drift

Network Interface

IP network interface with customizable interface

Supported Protocols

ONVIF / RTSP / GB/T28181

Weight

2 kg

APPLICATION

It is suitable for the development or integration of optoelectronic products such as turntables and pan-tilt units. After development, the products can be used for intrusion alarms in key areas such as airports, prisons, transportation routes, water conservancy facilities, financial centers, and nuclear, biological and chemical bases, as well as mobile monitoring application scenarios such as vehicle-mounted, ship-mounted, and ship-mounted systems.
