Hope-Wish develops cooled/uncooled IR lenses, thermal modules and night vision devices, with OEM & ODM available.

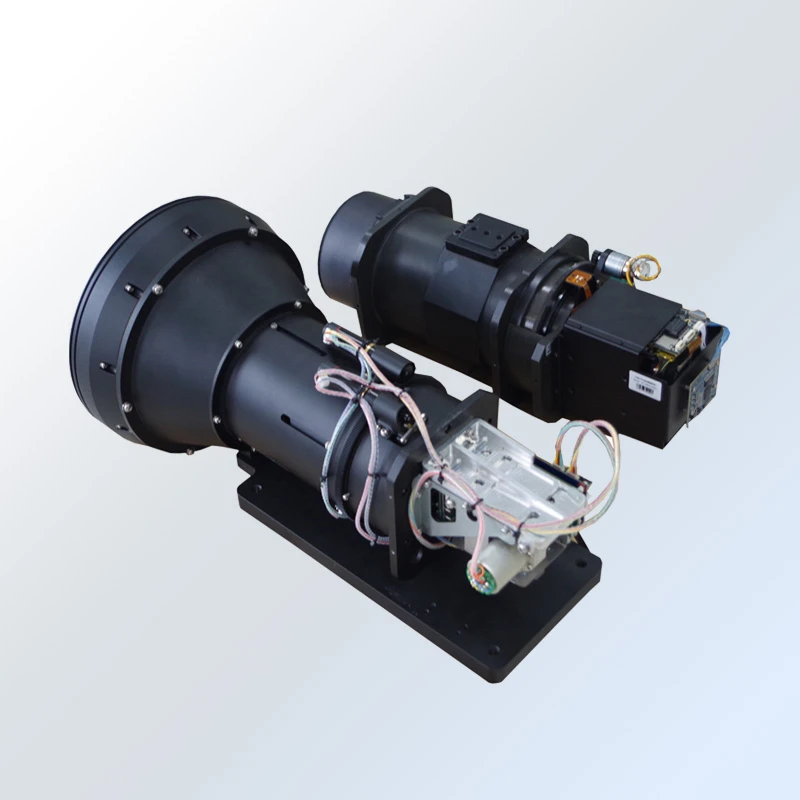

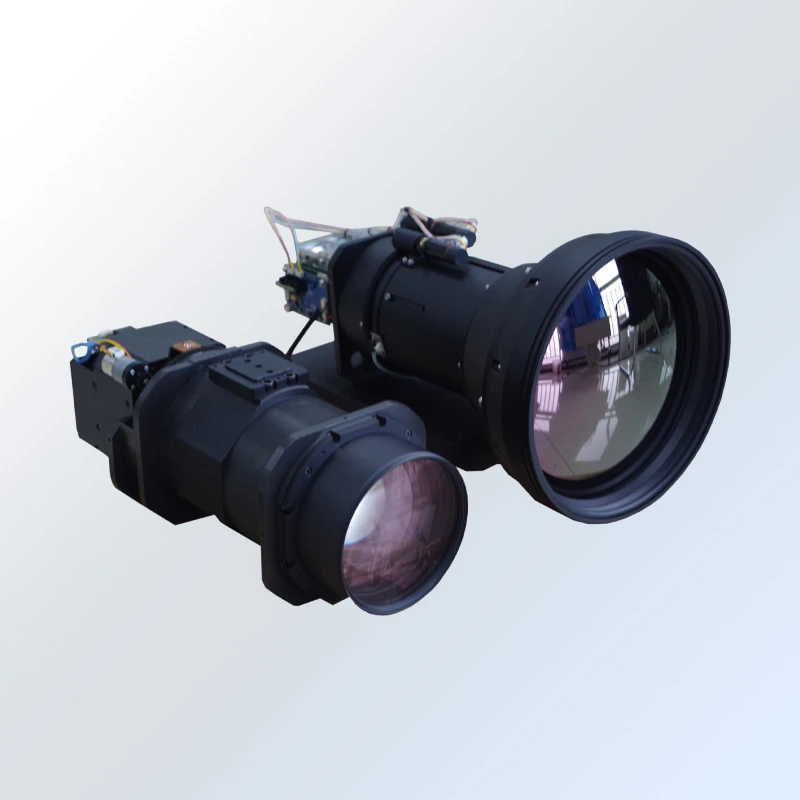

This dual-sensor module adopts dual independent optical channels, equipped with visible HD sensor and infrared thermal sensor respectively.
Place of Origin: China
Model Number: HP-TVC6510ATC-4150
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW
This dual-sensor module adopts dual independent optical channels, equipped with visible HD sensor and infrared thermal sensor respectively. By fusing visible texture features and infrared thermal radiation data, it effectively solves the limitations of single-spectrum imaging, such as poor night vision and low target contrast in complex environments. With high synchronization accuracy and stable frame output, the module achieves precise target positioning and detail restoration under various weather and light conditions.
KEY FEATURES
Adopting the latest uncooled infrared and HD visible imaging technology, this modular camera is built for long-range day & night monitoring. It reliably detects and identifies drones, vehicles and personnel under rainy, foggy and complex conditions.
Highly intelligent: It supports area intrusion alarm, cross-line alarm, motion detection, target recognition, 3D zoom positioning and PHM health management, boosting unmanned, automated and informatized operation.
Embedded with intelligent analysis, tracking and recognition algorithms, the complete unit supports direct integration for easy secondary development.
TECHNICAL SPECIFICATIONS TABLE
|
Parameter |
Specification |
|
Detection Range |
Fire Source: 5000m (2×2m fire source, 3×3 pixels) Detection：Vehicle 8600m, Human 3400m; Recognition: Vehicle 2400m,Human 1000m; |
|
Thermal module |
|
|
Detector |
VOx uncooled detector |
|
Resolution |
640×512 |
|
Lens |
22.5mm～105mm |
|
Visible Light Module |
|
|
Image Sensor |
4MP color-to-black CMOS sensor |
|
Lens |
8mm～500mm |
|
Intelligent Analysis |
Temperature display, fire detection, boundary crossing, automatic tracking, personnel & vehicle detection |
|
Image Processing |
Infrared & visible light image adjustment, dual-spectrum fusion, dual-FOV synchronous zoom |
|
AI Function |
Built-in algorithms for person, vehicle, vessel and other targets |
|
External Control |
PTZ protocol compatible |
|
Network Protocol |
IP interface, supports ONVIF / RTSP protocols |
CUSTOMIZATION OPTIONS
Optical Customization
Tailor focal length, zoom ratios, F-number, and DLC coating parameters to your specific requirements.
Structural Customization
Modify lens dimensions, interfaces, IP ratings, and thermal management designs for seamless integration.
Motor Control Optimization
Fine-tune zoom/focus speeds and customize communication protocols and drive modes.
Brand Personalization
Enhance your market presence with custom logos, neutral packaging, and branded user manuals.
Functional Customization
Access custom calibration parameters and dedicated SDKs perfectly matched to your detectors.
OEM & ODM Development
Partner with us for exclusive optical schemes and fully integrated thermal lens modules.
APPLICATION
Seaport and airport monitoring
Water system monitoring
Fire source prevention & monitoring
Ecological and environmental monitoring
Urban security and anti-UAV applications
Highways and railways monitoring
