Hope-Wish develops cooled/uncooled IR lenses, thermal modules and night vision devices, with OEM & ODM available.

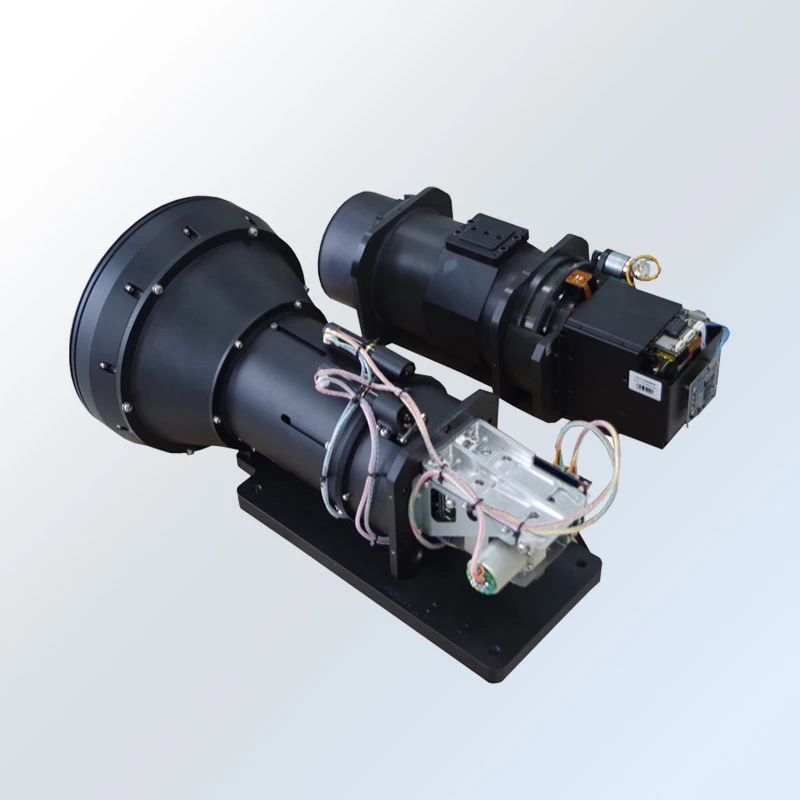

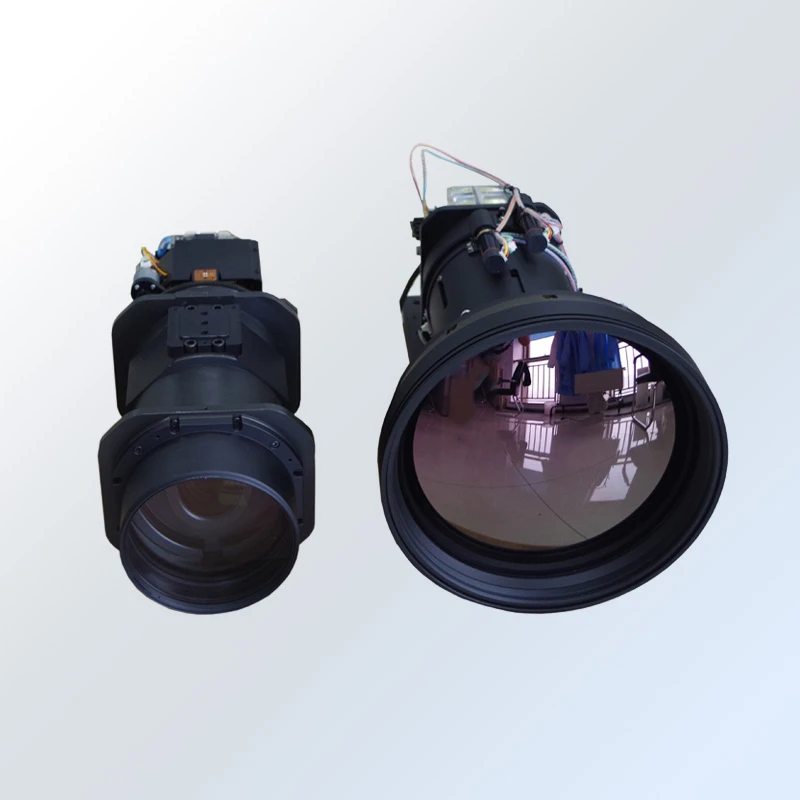

Designed for all-weather monitoring scenarios, the dual sensor module integrates visible and infrared dual-spectrum imaging system.
Place of Origin: China
Model Number: HP-TVC6615ATC-4150
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW
Designed for all-weather monitoring scenarios, the dual sensor module integrates visible and infrared dual-spectrum imaging system. It performs high-precision visual observation under sufficient light and switches to thermal detection for night or low-visibility conditions. Capable of resisting interference from dust, haze and strong ambient light, it greatly improves target recognition stability in border defense, outdoor patrol, UAV reconnaissance and intelligent alarm systems.
KEY FEATURES
Powered by uncooled infrared and HD visible imaging technology, this modular camera enables long-range all-day monitoring and identifies drones, vehicles and personnel in rain, fog and complicated scenarios.
Rich intelligent functions including intrusion alarm, cross-line detection, target recognition, 3D positioning and PHM health management realize automated unmanned surveillance.
Built-in intelligent algorithms support direct equipment integration and simplify secondary development.
TECHNICAL SPECIFICATIONS TABLE
|
Parameter |
Specification |
|
Detection Range |
Fire Source:10000m (2×2m fire source, 3×3 pixels) Detection：Vehicle 13000m, Human 4800m; Recognition: Vehicle 3400m,Human 1600m; |
|
Thermal module |
|
|
Detector |
VOx uncooled detector |
|
Resolution |
640×512 |
|
Lens |
31mm～155mm, 5x continuous optical zoom |
|
Visible Light Module |
|
|
Image Sensor |
2MP color-to-black CMOS sensor |
|
Lens |
8mm～500mm |
|
Intelligent Analysis |
Temperature display, fire detection, boundary crossing, automatic tracking, personnel & vehicle detection |
|
Image Function |
Infrared & visible light image adjustment, dual-spectrum fusion, dual-FOV synchronous zoom |
|
AI Function |
Built-in detection algorithms for personnel, vehicles, ships and other targets |
|
Control Mode |
PTZ control compatible |
|
Network Protocol |
IP network interface, supports ONVIF / RTSP protocols |
CUSTOMIZATION OPTIONS
Optical customization
Adjust focal length, zoom ratio, F-number and DLC coating parameters
Structural customization
Modify lens size, interface, IP rating and heat dissipation design
Motor control customization
Optimize zoom/focus speed, communication protocol and drive mode
Brand Personalization
logo, neutral packaging and branded user manuals
Function customization
Custom calibration parameters, matched SDK for detectors
OEM & ODM full development
Exclusive optical scheme and integrated thermal lens modules
APPLICATION
Seaport and airport monitoring
Water system monitoring
Fire source prevention & monitoring
Urban security and anti-UAV applications
Highways and railways monitoring
