Hope-Wish develops cooled/uncooled IR lenses, thermal modules and night vision devices, with OEM & ODM available.

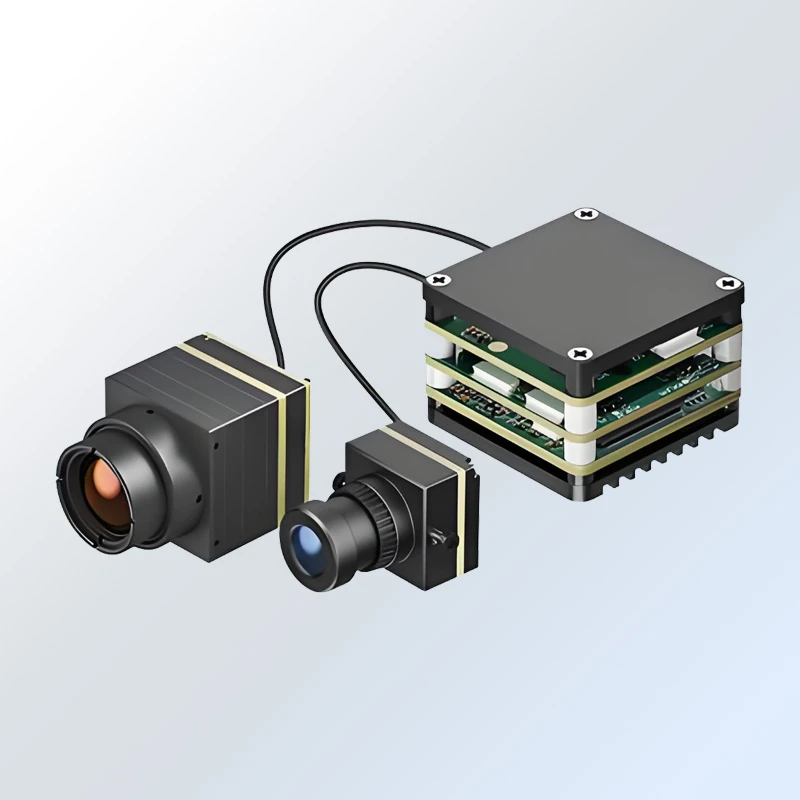

The dual sensor module is a compact dual-spectrum imaging unit integrating visible-light sensor and infrared thermal sensor in one unified structure.
Place of Origin: China
Model Number: HP-TVC610XC-410X
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW
The dual sensor module is a compact dual-spectrum imaging unit integrating visible-light sensor and infrared thermal sensor in one unified structure. It combines high-definition visible details and temperature-based thermal information, realizing complementary imaging advantages. Visible channel provides clear texture and color details, while infrared channel penetrates darkness, smoke and fog to detect hidden heat targets. Supporting synchronous dual-channel output and intelligent fusion processing, the module delivers reliable all-day, all-weather imaging for security surveillance and industrial inspection.
KEY FEATURES
High-level Intelligence: Featuring regional intrusion alarm, cross-line intrusion alarm, motion detection, target recognition, 3D zoom-in positioning and PHM health management, the system greatly boosts unmanned operation, automation and informatization capabilities. Built-in intelligent analytics, tracking and recognition algorithms enable seamless integration of the complete unit for customers, supporting convenient secondary-development.
TECHNICAL SPECIFICATIONS TABLE
|
Parameter |
Specification |
|
Infrared Lens |
9.1mm / 15mm / 19mm / 25mm / 35mm / 50mm |
|
Visible Light Lens |
4mm / 6mm / 8mm / 12mm / 16mm |
|
Detector |
VOx uncooled detector |
|
Resolution |
640×512 / 384×288 |
|
Intelligent Analysis |
Temperature display, fire detection, boundary crossing, auto tracking, human& vehicle detection |
|
Image Function |
Infrared & visible light image adjustment, dual-spectrum fusion |
|
AI function |
Built-in algorithms for detection of human, vehicle, vessel, etc. |
|
Control |
PTZ control compatible |
|
Network Interface |
IP network interface, supports ONVIF / RTSP protocols |
CUSTOMIZATION OPTIONS
Optical customization
Adjust focal length, zoom ratio, F-number and DLC coating parameters
Structural customization
Modify lens size, interface, IP rating and heat dissipation design
Motor control customization
Optimize zoom/focus speed, communication protocol and drive mode
Brand customization
logo, neutral packaging and branded user manuals
Function customization
Custom calibration parameters, matched SDK for detectors
OEM & ODM full development
Exclusive optical scheme and integrated thermal lens modules
APPLICATION
Seaport and airport monitoring
Water system monitoring
Oilfield & oil depot security
Fire source prevention & monitoring
Ecological and environmental monitoring
Urban security and anti-UAV applications
Highways and railways monitoring
