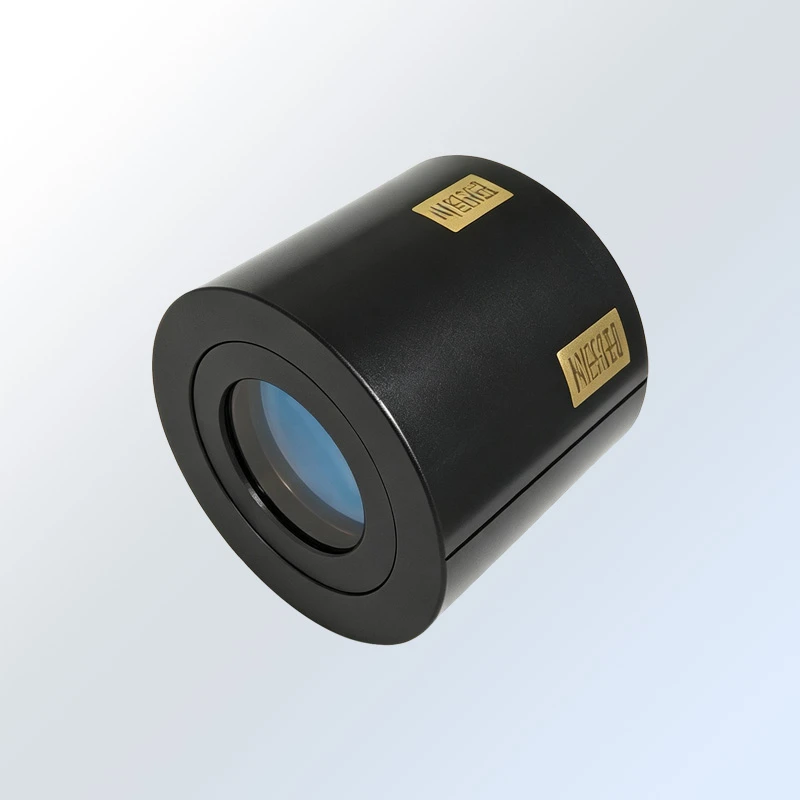

HP-Gen 3 Image intensifiers is the core of the low-light-level night vision system. Gen 3 Image intensifiers features a high-efficiency GaAs photocathode bonded to a glass input window, a micro-channel plate electron multiplier. It has important application value in observation at night and other extremely low illumination conditions.
PRODUCT OVERVIEW
HP-Gen 3 Image intensifiers is the core of the low-light-level night vision system. Gen 3 Image intensifiers features a high-efficiency GaAs photocathode bonded to a glass input window, a micro-channel plate electron multiplier. It has important application value in observation at night and other extremely low illumination conditions.
KEY FEATURES
The output image is inverted 180°to the input image
Type of photocathode: GaAs
Fluorescent type: P43/P45/P31
External brightness/Gain adjustment function, Electrical interface mode
Electromagnetic compatibility, Metal housing can be optional
TECHNICAL SPECIFICATIONS TABLE
Technical Specifications Table:
|
Parameter |
S12H |
S14H |
S16H |
S18H |
S20H |
|
Photocathode Sensitivity μA/lm |
≥1600 |
≥1600 |
≥1800 |
≥1800 |
≥2000 |
|
Resolution lp/mm |
≥51 |
≥55 |
≥60 |
≥64 |
≥64 |
|
Signal-to-Noise ratio |
≥22 |
≥25 |
≥25 |
≥28 |
≥32 |
|
Luminous Gain |
8000~ |
8000~ |
8000~ |
8000~ |
8000~ |
|
cd/m2/lx |
20000 |
20000 |
20000 |
20000 |
20000 |
|
Output Brightness cd/m2 |
4～12 |
4～12 |
4～12 |
4～12 |
4～12 |
|
Photocathode Diameter mm |
≥17.5 |
≥17.5 |
≥17.5 |
≥17.5 |
≥17.5 |
|
Uniformity |
≤3:1 |
≤3:1 |
≤3:1 |
≤3:1 |
≤3:1 |
|
Input Voltage V |
2.2~3.4 |
2.2~3.4 |
2.2~3.4 |
2.2~3.4 |
2.2~3.4 |
|
Input Current mA |
≤35 |
≤35 |
≤35 |
≤35 |
≤35 |
CUSTOMIZATION OPTIONS
Performance Grade Customization
Multiple performance grades (S12H, S14H, S16H, S18H, S20H) are selectable, covering different levels of photocathode sensitivity, resolution and signal-to-noise ratio to match varied application requirements.
Fluorescent Screen Customization
Support optional P43 / P45 / P31 phosphor screen types for different observation and recording demands.
Mechanical & Housing Customization
Metal housing is available upon request; custom electrical interface modes can be realized.
Function Configuration
External brightness and gain adjustment function can be configured according to project needs, with optimized electromagnetic compatibility performance.
Parameter Tuning
Luminous gain and output brightness can be fine-tuned within specification ranges; matching power-supply scheme with auto-gating function is configurable.
Application-oriented Tailoring
Custom-calibrated Gen3 image intensifier tubes for low-light night-vision systems, adapting to helmet-mount, handheld and weapon-mount night-vision devices.
APPLICATION
Monocular/Binocular night vision device etc.
