LWIR lenses are specialized thermal‑optical assemblies. They gather thermal radiation from ambient‑temperature objects and focus it onto uncooled VOx microbolometer FPA detectors.
Place of Origin: China
Model Number: HP-TC1018
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW

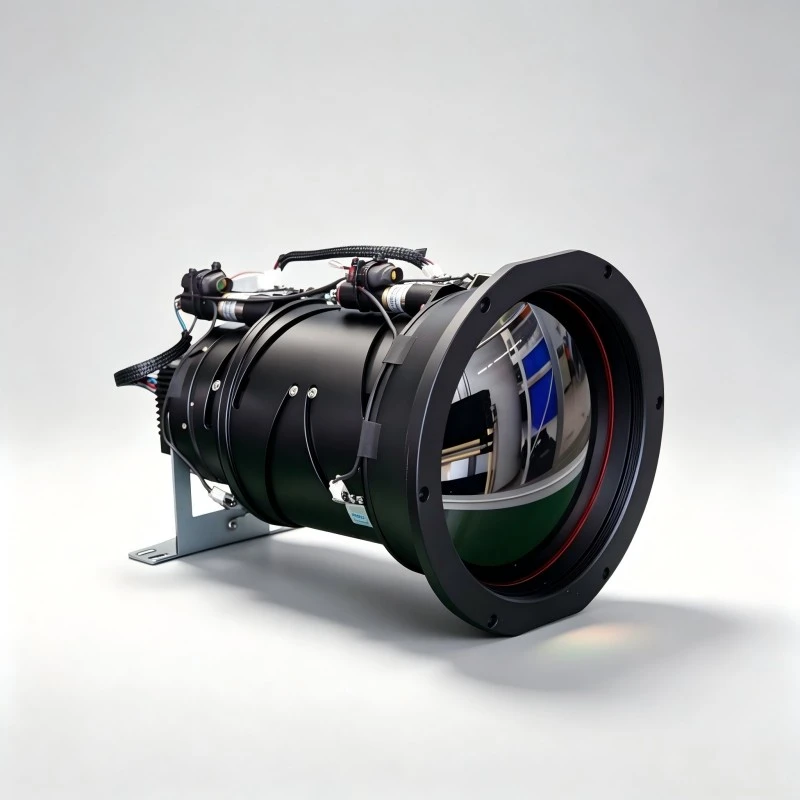

LWIR lenses are specialized thermal‑optical assemblies. They gather thermal radiation from ambient‑temperature objects and focus it onto uncooled VOx microbolometer FPA detectors. Conventional optical glass completely blocks 8‑14 μm infrared light, so only IR‑transparent crystals and chalcogenide glass can be adopted.
Designed to maximize camera performance, the infrared zoom lens assemblies provide the competitive advantages required in the field and market space for a wide range of defense and commercial applications.
KEY FEATURES
13x Continuous Optical Zoom: High-versatility imaging for long-range precision.
Advanced AS+DOE Design: Ensures superior image clarity and maximum transmission.
Rock-Solid Stability: 3-CAM zoom structure maintains boresight precision within 3 pixels.
Industrial-Grade Durability: High-precision brushless drive with a 10-million-cycle lifespan.
Ruggedized for Outdoors: Sealed, waterproof front element for the harshest environments.
HD Optimized: Fully supports 1280-resolution detectors with zero vignetting.
TECHNICAL SPECIFICATIONS TABLE
|
Parameter Item |
Specification |
|
Wavelength |
8μm～14μm |
|
Resolution |
640×512 |
|
Pixel pitch |
12μm |
|
Lens Focal Length |

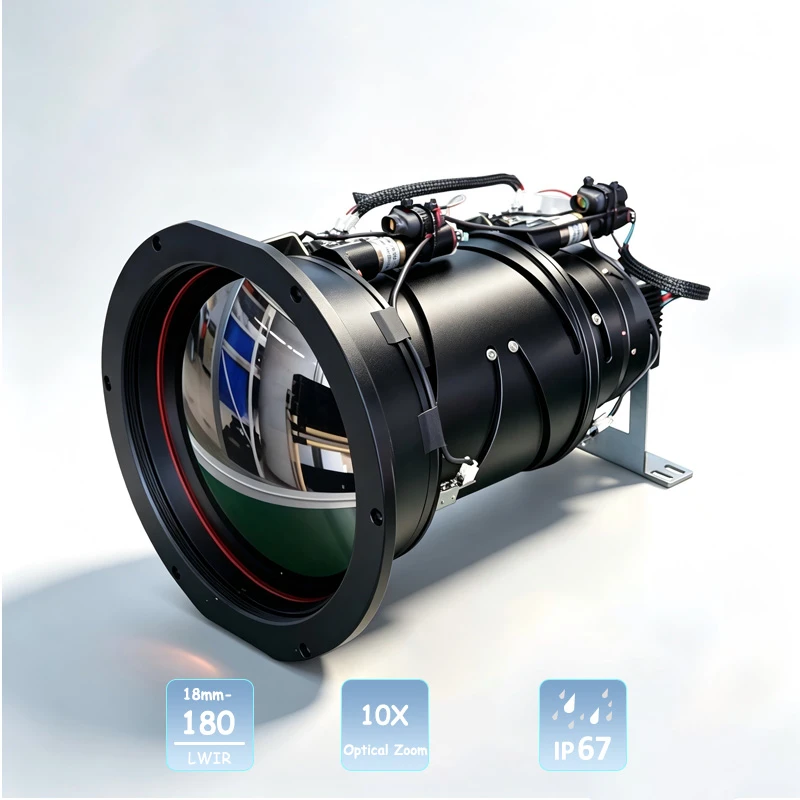

18～180mm, 10× continuous optical zoom, F1.0～F1.2 |
|
Angular Resolution |
0.67～0.07 mrad |
|
Field of View |
24.1°×19.4° ~ 2.4°×2° |
|
Surface Coating |
DLC coating |
|
Optical Transmittance |
≥81% |
|
Lens Control |
Motorized zoom + motorized focus |
|
Operating Temperature |
-40℃ ~ +60℃ |
|
Protection Grade |
IP67 (front lens only) |
CUSTOMIZATION OPTIONS
Optical customization
Adjust focal length, zoom ratio, F-number and DLC coating parameters
Structural customization
Modify lens size, interface, IP rating and heat dissipation design
Motor control customization
Optimize zoom/focus speed, communication protocol and drive mode
Brand customization
Logo, neutral packaging and branded user manuals
Function customization
Custom calibration parameters, matched SDK for detectors
OEM & ODM full development
Exclusive optical scheme and integrated thermal lens modules
Application
Seaport and airport monitoring
Water system monitoring
Oilfield & oil depot security
Fire source prevention & monitoring
Ecological and environmental monitoring

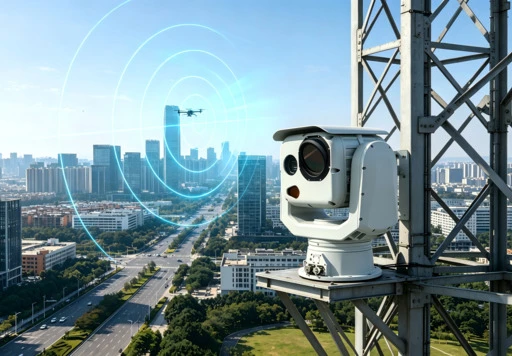

City security and anti-UAV applications
Highways and railways monitoring
