Hope-Wish develops cooled/uncooled IR lenses, thermal modules and night vision devices, with OEM & ODM available.

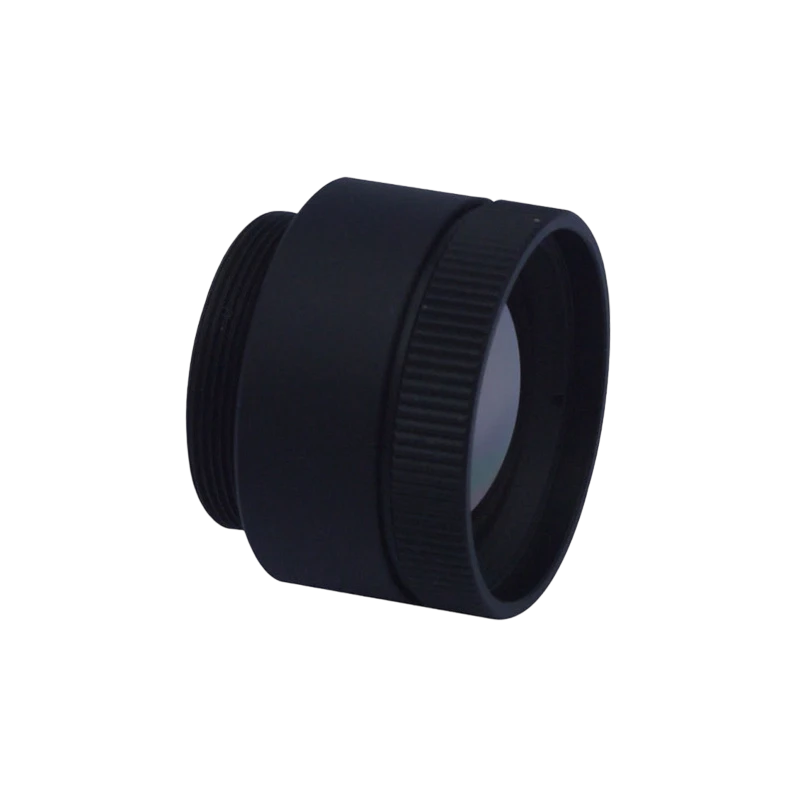

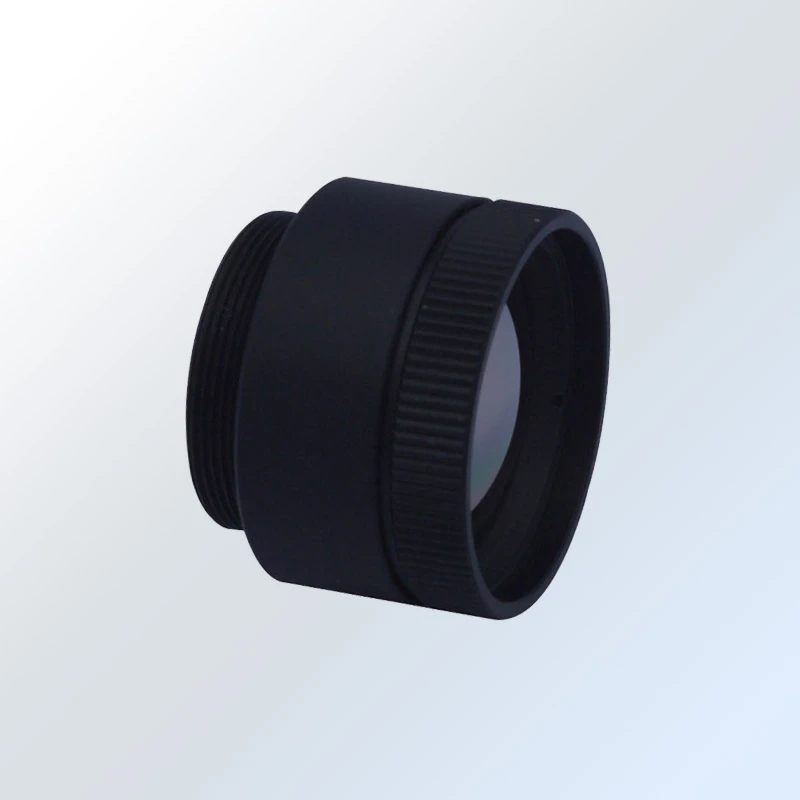

LWIR lenses are specialized thermal‑optical assemblies. They gather thermal radiation from ambient‑temperature objects and focus it onto uncooled VOx microbolometer FPA detectors.
Place of Origin: China
Model Number: HP-TC102(19)
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW
LWIR lenses are specialized thermal‑optical assemblies. They gather thermal radiation from ambient‑temperature objects and focus it onto uncooled VOx microbolometer FPA detectors. Conventional optical glass completely blocks 8‑14 μm infrared light, so only IR‑transparent crystals and chalcogenide glass can be adopted.
Designed to maximize camera performance, the infrared zoom lens assemblies provide the competitive advantages required in the field and market space for a wide range of defense and commercial applications.
KEY FEATURES
AS+DOE hybrid optical design for outstanding image quality and high transmittance
3CAM zoom structure guarantees high optical-axis precision; zoom-axis stabilization accuracy reaches 3 pixels
Brushless drive + high-precision feedback, motor lifespan up to 10 million cycles
Front-panel sealed construction for waterproof performance, suited for harsh outdoor environments
Supports 1280-resolution detectors; sharp uniform imaging with no vignetting or dark corners
TECHNICAL SPECIFICATIONS TABLE
|
Parameter |
Specification |
|
Spectral range |
8μm～14μm |
|
Resolution |
640×512 |
|
Pixel pitch |
12μm |
|
Focal Length |
19mm, F1.0 |
|
Angular Resolution |
0.6mrad～0.2mrad |
|
Field of view |
21.7°×17.4°～7.3°×5.9° |
|
Operating temperature range |
-40~60℃ |
|
Protection rating |
IP67 (front lens only) |
CUSTOMIZATION OPTIONS
Optics
Custom-tune focal length, zoom ratio, F-number, DLC coating parameters
Mechanics
Adjust lens size, mounting interface, IP rating, heat-dissipation structure
Motor control
Optimize zoom/focus speed, communication protocol, drive mode
Branding
Custom logo, neutral packaging, branded user manuals
Functions
Custom calibration parameters, detector-compatible SDK
OEM & ODM
Exclusive optical design and complete integrated thermal lens modules
Application
Seaport and airport monitoring
Water system monitoring
Oilfield & oil depot security
Fire source prevention & monitoring
Ecological and environmental monitoring
City security and anti-UAV applications
Highways and railways monitoring
