Hope-Wish develops cooled/uncooled IR lenses, thermal modules and night vision devices, with OEM & ODM available.

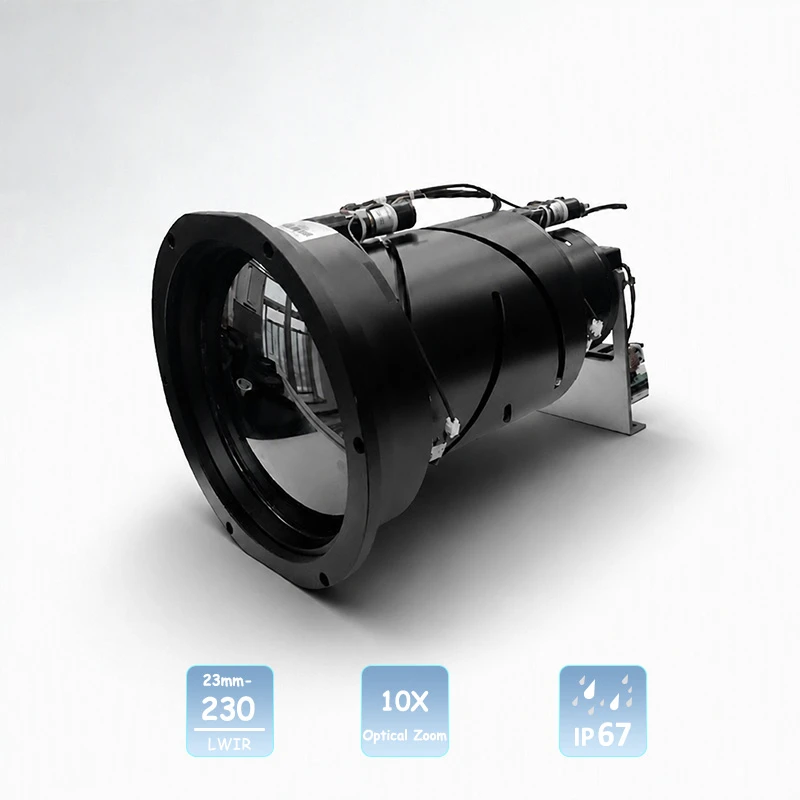

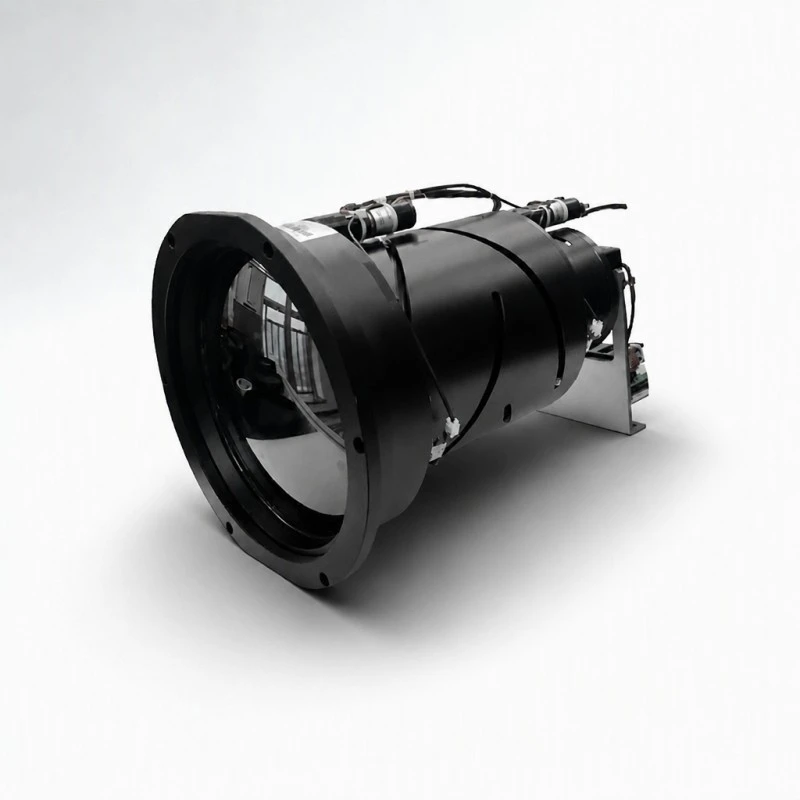

Hope-Wish Long-Wave Infrared (LWIR) lenses are dedicated thermal optical assemblies that capture thermal radiation from ambient-temperature objects and focus it onto high-sensitivity uncooled VOx microbolometer FPA detectors.
Place of Origin: China
Model Number: HP-TC1023HD
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW
Hope-Wish Long-Wave Infrared (LWIR) lenses are dedicated thermal optical assemblies that capture thermal radiation from ambient-temperature objects and focus it onto high-sensitivity uncooled VOx microbolometer FPA detectors.Conventional optical glass blocks the 8-14 μm infrared spectrum, so we adopt high-performance IR-transparent crystals and chalcogenide glass for high transmittance and sharp imaging.
Core Advantages of 8-14 μm Band
• Optimized for -40°C ~ 300°C target thermal emission
• Zero-illumination operation, resistant to fog & smoke
• Widely-adopted standard for civil & industrial thermal imaging
KEY FEATURES
13x Continuous Optical Zoom: High-versatility imaging for long-range precision.
Advanced AS+DOE Design: Ensures superior image clarity and maximum transmission.
Rock-Solid Stability: 3-CAM zoom structure maintains boresight precision within 3 pixels.
Industrial-Grade Durability: High-precision brushless drive with a 10-million-cycle lifespan.
Ruggedized for Outdoors: Sealed, waterproof front element for the harshest environments.
HD Optimized: Fully supports 1280-resolution detectors with zero vignetting.
TECHNICAL SPECIFICATIONS TABLE
|
Parameter |
Specification |
|
Spectral range |
8μm～14μm |
|
Resolution |
1280×1024 |
|
Pixel pitch |
12μm |
|
Lens focal length |
23～230mm, 10x continuous optical zoom, F1.0～F1.5 |
|
Angular resolution |
0.05～0.52mrad (milliradians) |
|
FOV |
36.9°×29.9°～3.8°×3.1° |
|
Transmittance |
≥81% |
|
Lens control |
Motorized zoom, motorized focus |
|
Operating temperature range |
-40~60℃ |
|
Protection rating |
IP67 (front lens only) |
CUSTOMIZATION OPTIONS
Optics
Custom-tune focal length, zoom ratio, F-number, DLC coating parameters
Mechanics
Adjust lens size, mounting interface, IP rating, heat-dissipation structure
Motor control
Optimize zoom/focus speed, communication protocol, drive mode
Branding
Custom logo, neutral packaging, branded user manuals
Functions
Custom calibration parameters, detector-compatible SDK
OEM & ODM
Exclusive optical design and complete integrated thermal lens modules
Application
Seaport and airport monitoring
Water system monitoring
Oilfield & oil depot security
Fire source prevention & monitoring
Ecological and environmental monitoring
Urban security and anti-UAV applications
Highways and railways monitoring
