Hope-Wish develops cooled/uncooled IR lenses, thermal modules and night vision devices, with OEM & ODM available.

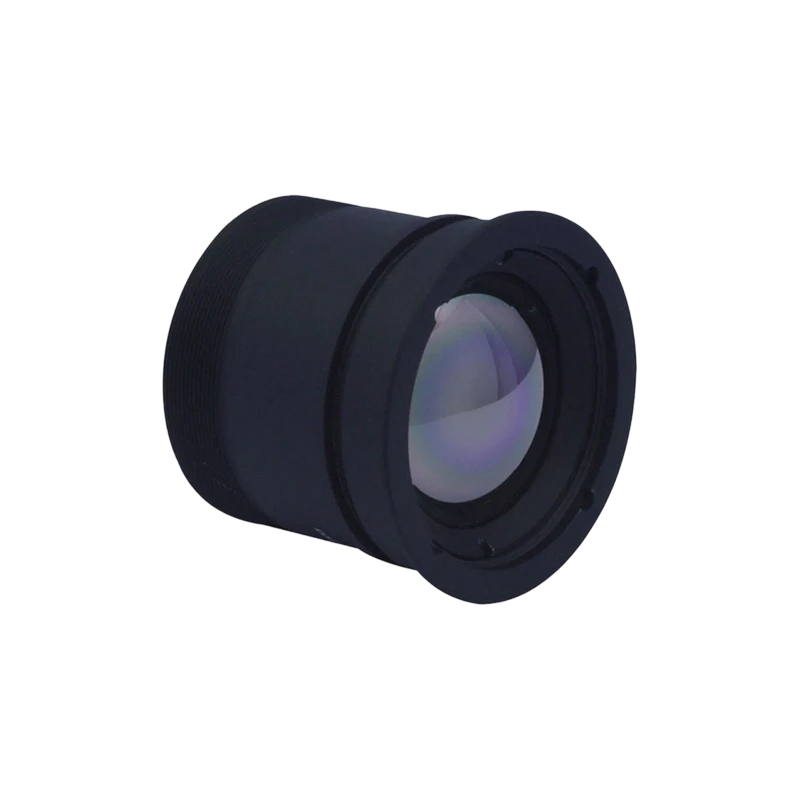

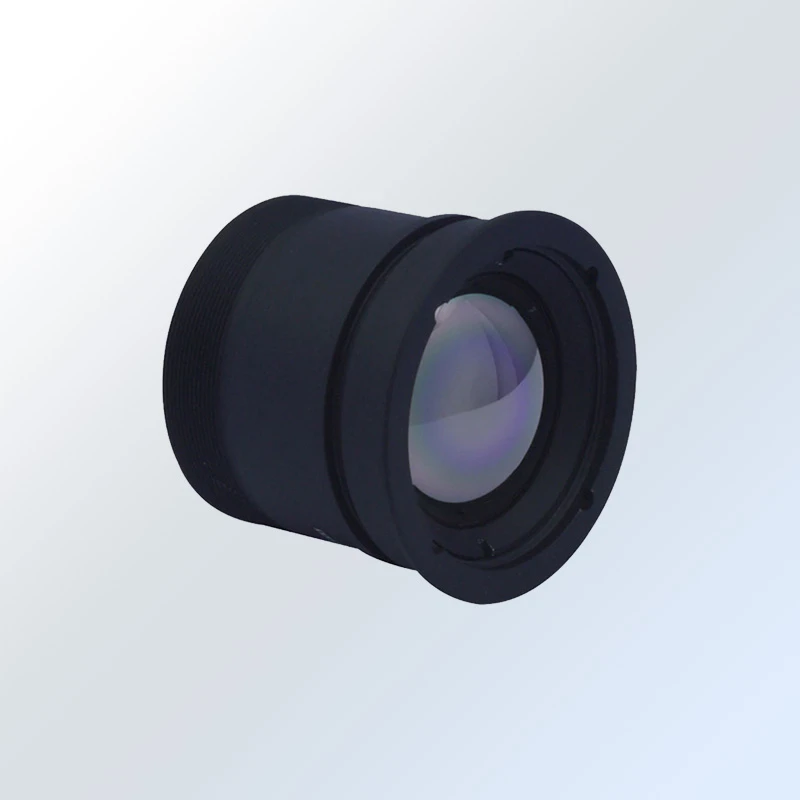

Our high-performance LWIR lenses are precision-engineered thermal optical assemblies designed to capture radiation from room-temperature objects, focusing it onto advanced uncooled microbolometer FPA detectors (VOx).
Place of Origin: China
Model Number: HP-TC102(25)
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW
Our high-performance LWIR lenses are precision-engineered thermal optical assemblies designed to capture radiation from room-temperature objects, focusing it onto advanced uncooled microbolometer FPA detectors (VOx). Since standard glass is opaque to the 8–14 μm spectrum, we utilize specialized IR-transparent crystals and chalcogenide glass to ensure maximum transmission.
Core Advantages of the 8–14 μm Band:
Peak Detection: Optimized for objects between -40°C and 300°C, where thermal emission peaks.
Unmatched Clarity: Operates flawlessly in total darkness, thick fog, or smoke without any external illumination.
Industry Standard: The leading choice for mainstream civilian and industrial thermal imaging.
KEY FEATURES
AS+DOE hybrid optical design for outstanding image quality and high transmittance
3CAM zoom structure guarantees high optical-axis precision; zoom-axis stabilization accuracy reaches 3 pixels
Brushless drive + high-precision feedback, motor lifespan up to 10 million cycles
Front-panel sealed construction for waterproof performance, suited for harsh outdoor environments
Supports 1280-resolution detectors; sharp uniform imaging with no vignetting or dark corners
TECHNICAL SPECIFICATIONS TABLE
|
Parameter |
Specification |
|
Spectral range |
8μm～14μm |
|
Resolution |
640×512 |
|
Pixel pitch |
12μm |
|
Focal Length |
25mm, F1.0 |
|
IFOV (mrad) |
0.63 |
|
Field of view |
23°×18.4° |
|
Operating temperature range |
-40~60℃ |
|
Protection rating |
IP67 (front lens only) |
CUSTOMIZATION OPTIONS
Optics
Tailored focal length, zoom ratio, F-number, and high-durability DLC coatings
Mechanics
Adjustable lens sizing, mounting interfaces, and IP67-rated environmental sealing
Motor control
Optimized high-speed zoom/focus via standard RS422/RS232 protocols
Branding
Private-label logos, neutral packaging, and custom-branded manual
Software
Custom calibration parameters and detector-compatible SDK
OEM & ODM
Exclusive optical design and complete thermal lens module integration
Application
Seaport and airport monitoring
Water system monitoring
Oilfield & oil depot security
Fire source prevention & monitoring
Ecological and environmental monitoring
Urban security and anti-UAV applications;
Highways and railways monitoring
