Hope-Wish develops cooled/uncooled IR lenses, thermal modules and night vision devices, with OEM & ODM available.

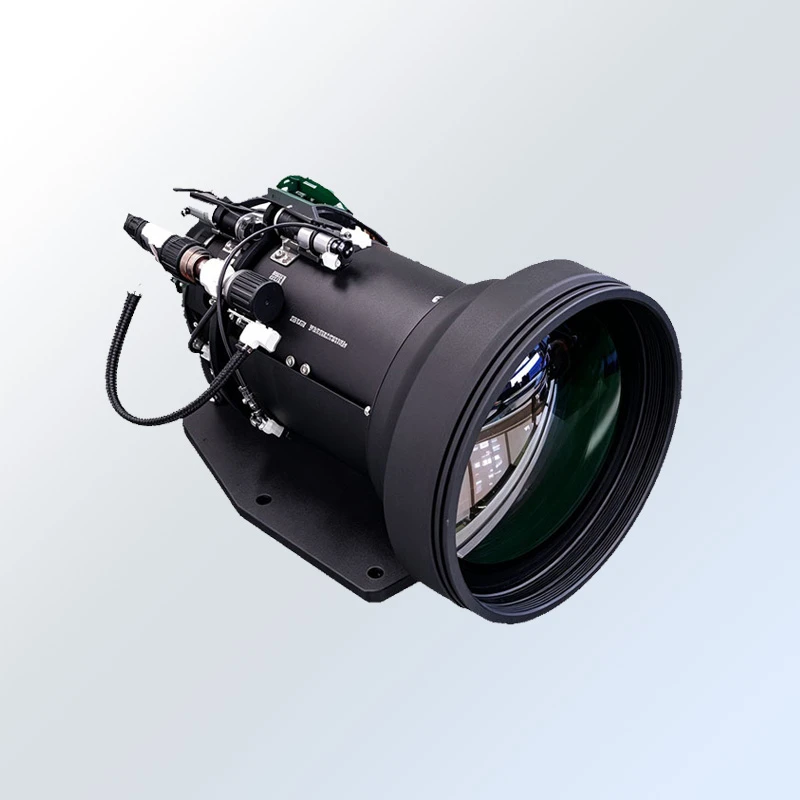

HP-TC6519C 38-190mm Continuous Zoom LWIR Themral Module
Place of Origin: China
Model Number: HP-TC6519C
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW
• Elite Imaging: High-sensitivity 640×512 VOx resolution and advanced algorithms deliver ultra-fine, smooth thermal clarity.
• Compact Precision: Cutting-edge AS+DOE continuous zoom optics (38-190mm) packed into a miniaturized, lightweight frame for effortless installation.
• Total All-Weather Dominance: Effortlessly penetrate dust, smoke, and storms. Whether it's total darkness or heavy rain, maintain perfect situational awareness.
KEY FEATURES
Elite Clarity, Weather-Defying Performance With ultra-high sensitivity (NETD ≤40mK) and SDE detail enhancement, this module captures crisp thermal imagery and locks onto concealed targets, even in the most unforgiving weather.
Fluid Zooming, Remote Precision The AS+DOE optics and 3CAM high-precision design ensure seamless zooming, perfectly balancing wide-area situational awareness with pinpoint long-range identification.
Autonomous AI Intelligence Enable 24/7 unattended monitoring with integrated analytics, featuring real-time fire alarms and perimeter intrusion detection for total peace of mind.
Ruggedized for the Extremes Housed in an IP67-rated, high-strength aluminum alloy chassis with sun-damage protection, it is engineered to thrive in scorching heat and freezing cold.
TECHNICAL SPECIFICATIONS TABLE
|
Parameter |
Specification |
|
Detection |
Vehicle 16400m, Human 5800m; |
|
Recognition |
Vehicle 4200m, Human 1900m； |
|
Detector |
VOx uncooled detector |
|
Resolution |
640×512 pixels |
|
Lens |
38～190mm continuous optical zoom lens |
|
Network Interface |
IP network interface, supports ONVIF / RTSP / GB/T28181 protocols |
|
Intelligent Analysis Function |
Temperature display, hotspot alarm, motion detection, intrusion detection, boundary crossing, object entry & departure, loitering detection, focus detection, rapid movement detection, obstruction detection |
CUSTOMIZATION OPTIONS
Optical Customization
Tailor focal length, zoom ratios, F-number, and DLC coating parameters to your specific requirements.
Structural Customization
Modify lens dimensions, interfaces, IP ratings, and thermal management designs for seamless integration.
Motor Control Optimization
Fine-tune zoom/focus speeds and customize communication protocols and drive modes.
Brand Personalization
Enhance your market presence with custom logos, neutral packaging, and branded user manuals.
Functional Customization
Access custom calibration parameters and dedicated SDKs perfectly matched to your detectors.
Full OEM & ODM Development
Partner with us for exclusive optical schemes and fully integrated thermal lens modules.
APPLICATION

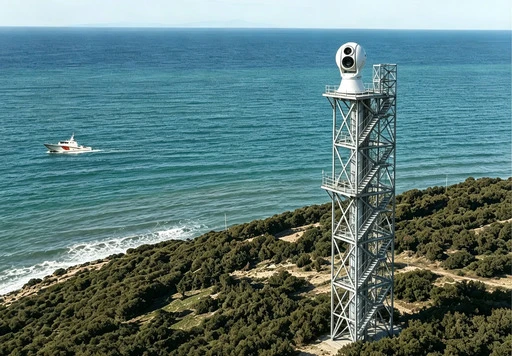

Seaport and airport monitoring

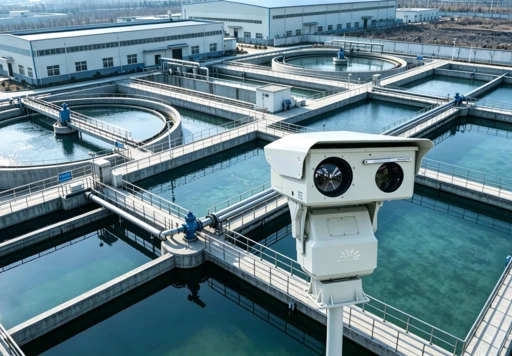

Water system monitoring
Fire source prevention & monitoring
Anti-UAV applications
Highways and railways monitoring
