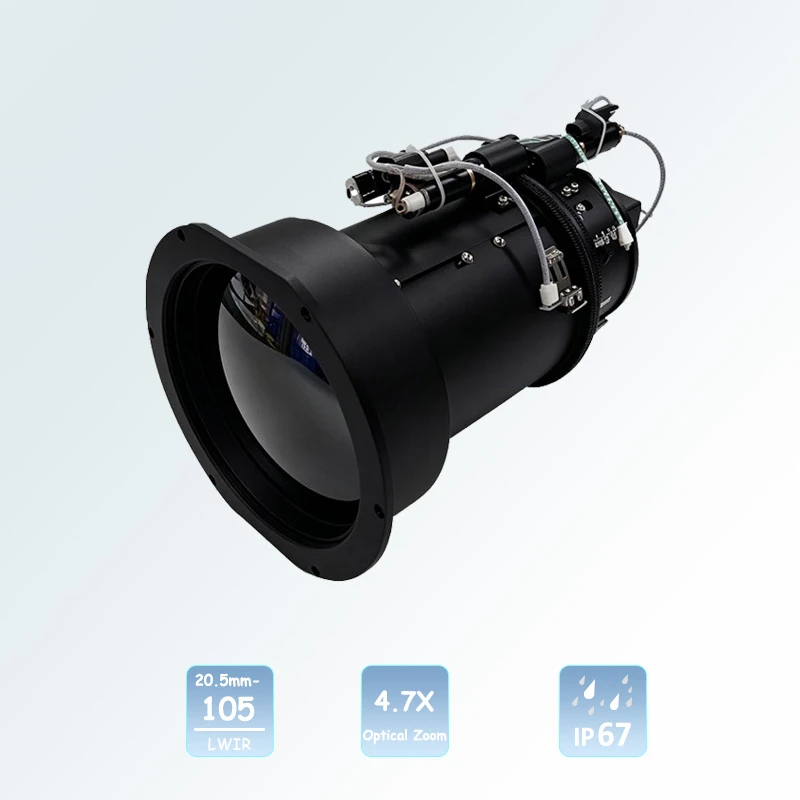

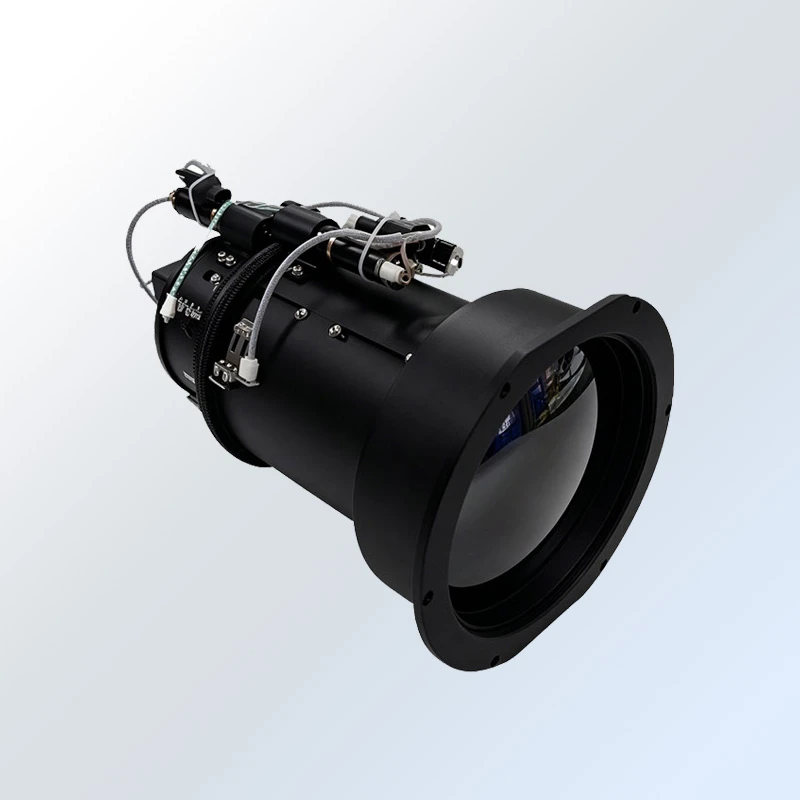

HP-TC6511C LWIR Modules 22.5-105mm Continuous Zooming

Place of Origin: China

Model Number: HP-TC6511C(F1.2)

Minimum Order Quantity: 1 set

Inquire Now

Next Products

PRODUCT OVERVIEW

HP-TC6511C LWIR Thermal Module developed with state-of-the-art uncooled infrared technology and continuous zoom infrared optical technology, the HP-TC6511C thermal module is equipped with a high-sensitivity ultra-fine 640×512 resolution vanadium oxide (VOx) focal plane array detector. Supported by sophisticated digital circuitry and optimized image processing algorithms, the module outputs delicate, smooth and high-fidelity thermal images.

Its miniaturized infrared lens adopts AS+DOE continuous zoom optical design. Featuring compact dimension and lightweight structure, the product satisfies both target searching and detailed observation requirements simultaneously, greatly simplifying equipment assembly and on-site deployment for end users.

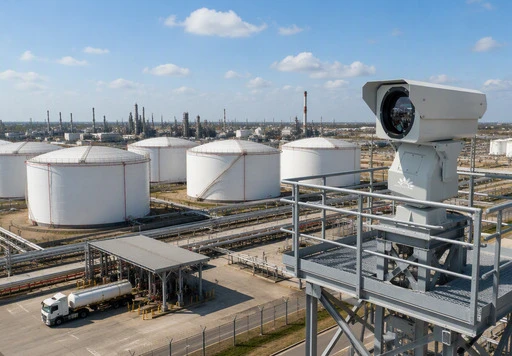

Integrated with ultra-sensitive infrared detector, cutting-edge electronic framework and premium optical system in one compact unit, HP-TC6511C LWIR thermal module penetrates dust, smog, rain, snow and total darkness efficiently to deliver stable visual monitoring around the clock under all weather conditions.

KEY FEATURES

High Sensitivity (NETD ≤40mK)

Produces delicate thermal images, less affected by bad weather; perfect for long-distance surveillance.

AS+DOE Continuous Zoom Optics + 3CAM High-Precision Optomechanics
High infrared transmittance, smooth zoom, suitable for wide-area search & remote identification.

Optimized Non-Uniformity Correction
Superior image uniformity and wide dynamic range.

SDE Detail Enhancement Algorithm
Low-noise smooth images, 255-level enhancement adjustment; multiple palettes (Black Hot / White Hot) for capturing hidden low-contrast targets.

Sun Damage Prevention & Multi-Scene Presets
Strong light protection function; configurable scene modes for different application scenarios.

Built-in Intelligent Analytics
Hotspot alarm, intrusion & cross-border detection, realizing unattended monitoring.

Robust Hardware Design
High-strength aluminum alloy structure; IP67-rated front window, dustproof and rainproof for harsh environments.

TECHNICAL SPECIFICATIONS TABLE

Parameter	Specification
Detection	Vehicle 8600m,Human 3400m,；
Recognition	Vehicle 2400m; Human 1000m；
Detector	VOx uncooled detector,
Resolution	640×512 pixels
Lens	22.5～105mm continuous optical zoom lens
Network Interface	IP network interface, supports ONVIF/RTSP/GB/T28181 protocols
Intelligent Analysis Function	Temperature display, hotspot alarm, motion detection, intrusion detection, boundary crossing, object entry & departure, loitering detection, focus detection, rapid movement detection, obstruction detection
