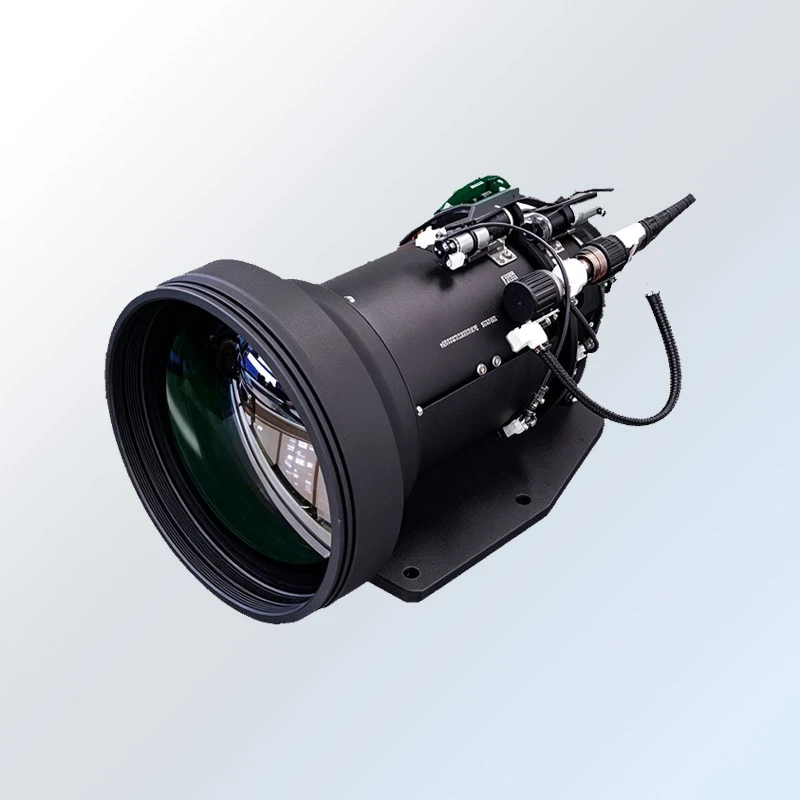

HP-TC6516C 31–155 mm continuous zoom LWIR thermal module built upon state-of-the-art uncooled infrared technology and continuous zoom infrared optical design.
Place of Origin: China
Model Number: HP-TC6516C
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW
HP-TC6516C 31–155 mm continuous zoom LWIR thermal module built upon state-of-the-art uncooled infrared technology and continuous zoom infrared optical design. Equipped with a highly sensitive 640×512 ultra-fine VOx focal plane array detector, paired with sophisticated digital circuits and professional image processing algorithms, it delivers crisp, seamless thermal imagery.
Its compact infrared lens adopts AS+DOE continuous zoom optical architecture, making the entire module compact and lightweight. Ideal for search & surveillance scenarios, it significantly lowers installation difficulty and simplifies deployment for end users.
Integrating an ultra-sensitive infrared detector alongside cutting-edge electronics and optical systems, the HP-TC6516C uncooled thermal imaging module sees clearly through dust, smoke, rainfall, snow and total darkness, supporting reliable round-the-clock observation in all weather conditions.
KEY FEATURES
High Sensitivity (NETD ≤40mK)
Produces delicate thermal images, less affected by bad weather; perfect for long-distance surveillance.
AS+DOE Continuous Zoom Optics + 3CAM High-Precision Optomechanics
High infrared transmittance, smooth zoom, suitable for wide-area search & remote identification.
Optimized Non-Uniformity Correction
Superior image uniformity and wide dynamic range.
SDE Detail Enhancement Algorithm
Low-noise smooth images, 255-level enhancement adjustment; multiple palettes (Black Hot / White Hot) for capturing hidden low-contrast targets.
Sun Damage Prevention & Multi-Scene Presets
Strong light protection function; configurable scene modes for different application scenarios.
Built-in Intelligent Analytics
Hotspot alarm, intrusion & cross-border detection, realizing unattended monitoring.
Robust Hardware Design
High-strength aluminum alloy structure; IP67-rated front window, dustproof and rainproof for harsh environments.
TECHNICAL SPECIFICATIONS TABLE
|
Parameter |
Specification |
|
Detection |
Vehicle 13000m, Human 4800m; |
|
Recognition |
Vehicle 3400m, Human 1600m； |
|
Detector |
VOx uncooled detector, |
|
Resolution |
640×512 pixels |
|
Lens |
31～155mm continuous optical zoom lens |
|
Network Interface |
IP network interface, supports ONVIF / RTSP / GB/T28181 protocols |
|
Intelligent Analysis Function |
Temperature display, hotspot alarm, motion detection, intrusion detection, boundary crossing, object entry & departure, loitering detection, focus detection, rapid movement detection, obstruction detection |
CUSTOMIZATION OPTIONS
Optical customization
Adjust focal length, zoom ratio, F-number and DLC coating parameters
Structural customization
Modify lens size, interface, IP rating and heat dissipation design
Motor control customization
Optimize zoom/focus speed, communication protocol and drive mode
Brand customization
logo, neutral packaging and branded user manuals
Function customization
Custom calibration parameters, matched SDK for detectors
OEM & ODM full development
Exclusive optical scheme and integrated thermal lens modules
APPLICATION
Seaport and airport monitoring
Water system monitoring
Oilfield & oil depot security
Fire source prevention & monitoring
Anti-UAV applications
Highways and railways monitoring
