Hope-Wish develops cooled/uncooled IR lenses, thermal modules and night vision devices, with OEM & ODM available.
HD Thermal Vision: 1280×1024 Uncooled Thermal Module
Place of Origin: China
Model Number: HP-TC12410C
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW

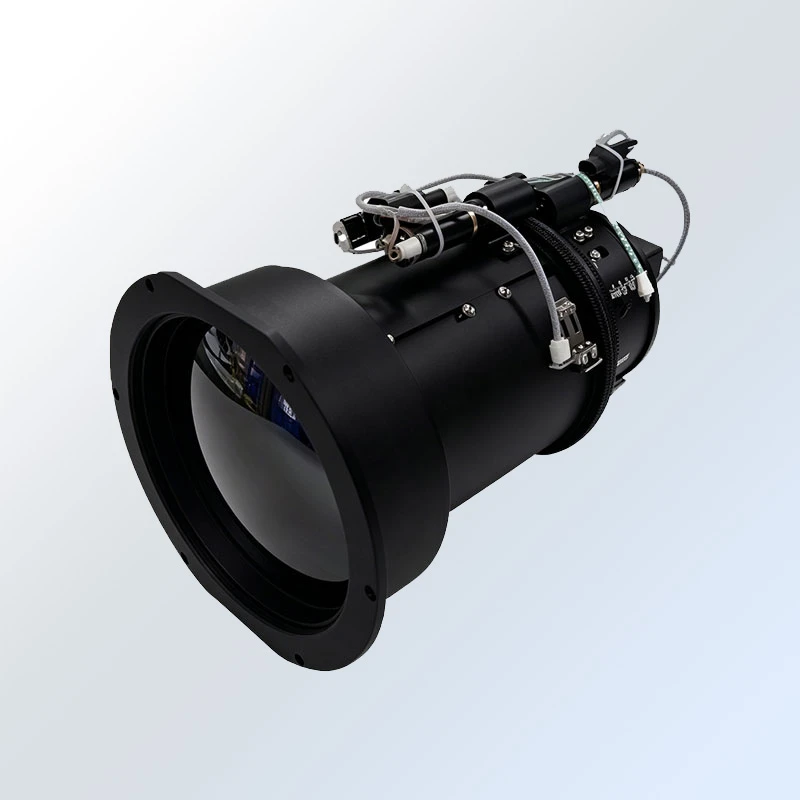

HD Thermal Vision: 1280×1024 Uncooled Thermal Module
Ultra-HD Imaging Clarity Equipped with a high-sensitivity 1280×1024 VOx focal plane detector and sophisticated imaging algorithms, LWIR module delivers exceptionally sharp, ultra-smooth thermal images with outstanding detail restoration.
Precision Continuous Zoom & Compact Structure Adopting a miniaturized AS+DOE hybrid optical system, the module supports flawless continuous zoom. It perfectly integrates fast wide-area search and high-precision long-distance observation capabilities in one compact unit.
All-Weather Environmental Adaptability Professionally engineered to penetrate dust, smoke, rain, snow and harsh weather conditions, it maintains stable and clear imaging in total darkness and complex scenarios, enabling full-time situational awareness.
Lightweight & Easy Deployment Featuring a streamlined and lightweight design, the module greatly reduces installation difficulty and integration costs, making it a premium solution for a wide range of professional thermal imaging applications.
KEY FEATURES
Elite Clarity, Weather-Defying Performance With ultra-high sensitivity (NETD ≤40mK) and SDE detail enhancement, this module captures crisp thermal imagery and locks onto concealed targets, even in the most unforgiving weather.
Fluid Zooming, Remote Precision The AS+DOE optics and 3CAM high-precision design ensure seamless zooming, perfectly balancing wide-area situational awareness with pinpoint long-range identification.
Autonomous AI Intelligence Enable 24/7 unattended monitoring with integrated analytics, featuring real-time fire alarms and perimeter intrusion detection for total peace of mind.
Ruggedized for the Extremes Housed in an IP67-rated, high-strength aluminum alloy chassis with sun-damage protection, it is engineered to thrive in scorching heat and freezing cold.
TECHNICAL SPECIFICATIONS TABLE
|
Parameter |
Specification |
|
Detection |
Vehicle 8400m, Human 3400m; |
|
Recognition |
Vehicle 2400m, Human 1000m； |
|
Detector |
VOx uncooled detector, |
|
Resolution |
1280×1024 |
|
Lens |
25-100mm, F1.3, continuous optical zoom lens |
|
Network Interface |
IP network interface, supports ONVIF / RTSP / GB/T28181 protocols |
|
Intelligent Analysis Function |
Temperature display, hotspot alarm, motion detection, intrusion detection, boundary crossing, object entry & departure, loitering detection, focus detection, rapid movement detection, obstruction detection |
CUSTOMIZATION OPTIONS
Optical Customization
Tailor focal length, zoom ratios, F-number, and DLC coating parameters to your specific requirements.
Structural Customization
Modify lens dimensions, interfaces, IP ratings, and thermal management designs for seamless integration.
Motor Control Optimization
Fine-tune zoom/focus speeds and customize communication protocols and drive modes.
Brand Personalization
Enhance your market presence with custom logos, neutral packaging, and branded user manuals.
Functional Customization
Access custom calibration parameters and dedicated SDKs perfectly matched to your detectors.
Full OEM & ODM Development
Partner with us for exclusive optical schemes and fully integrated thermal lens modules.
APPLICATION
Seaport and airport monitoring
Water system monitoring
Oilfield & oil depot security
Fire source prevention & monitoring

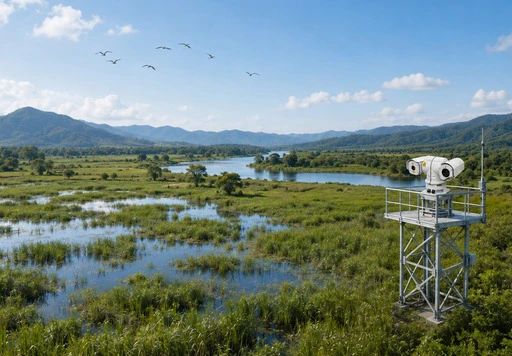

Ecological and environmental monitoring
Anti-UAV applications
Highways and railways monitoring
