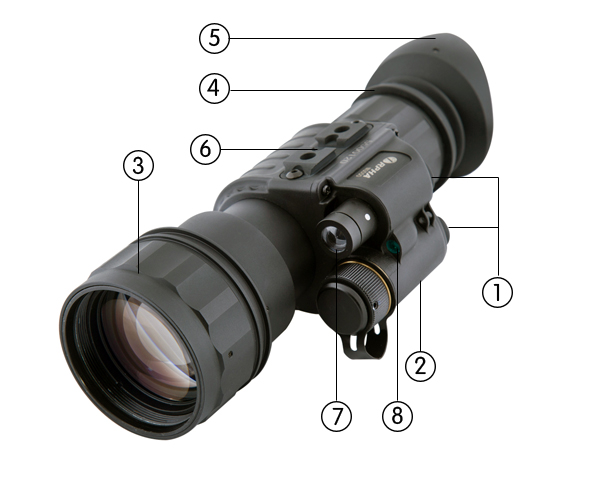

Structure name:
1. Power switch
2. Battery compartment
3. Objective lens
4. Eyepiece
5. Goggles
6. Mounting part
7. IR illuminator
8. Light detector
Products
Hope-Wish develops cooled/uncooled IR lenses, thermal modules and night vision devices, with OEM & ODM available.
HP-DM2013/3013 is a widely popular multi-functional night vision device. As a classic monocular low-light night vision unit, it delivers high magnification and long observation range.
Place of Origin: China
Model Number: HP-DM2013
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW
HP-DM2013/3013 is a widely popular multi-functional night vision device. As a classic monocular low-light night vision unit, it delivers high magnification and long observation range. Equipped with a large objective lens for high light transmittance, it supports optional Gen 2+ or quasi-Gen3 (G450+) image intensifier tubes to satisfy customized demands.
This multi-purpose monocular can connect to mobile phones and cameras to enable night shooting with compatible functional accessories. Diverse optional accessories greatly expand its application scenarios. Highly practical, it fits night hunting, night fishing, forest fire prevention, power line inspection, home security, public security night patrol, investigation and evidence collection and other tasks.
KEY FEATURES
Dual-grade image intensifier optional
Configurable with Gen 2+ or quasi-3rd-generation tubes to match different budget levels and operational requirements, balancing cost and night vision performance.
Military-grade multi-layer anti-reflection coating
Ultra-broadband lens coating suppresses surface reflection, reduces light loss and greatly improves low-light observation clarity.
Strong expandability & multi-scene compatibility
Supports external IR intensifier, night sight accessory, and connection with phones/cameras/camcorders for night shooting and diversified applications.
IP68 extreme environmental adaptability
Full IP68 waterproof and dustproof rating ensures stable operation in fog, rain, dust, sandstorms and other harsh conditions.
Intelligent eye-protection imaging control
Features automatic brightness stabilization and 40Lux anti-glare auto-shutdown, delivering stable viewing and effective image tube protection.
Humanized & ultra-reliable structure design
Lightweight non-slip ergonomic body with wide comfortable eyepiece, spring-embedded battery structure and zero standby power consumption for long-term field use.
TECHNICAL SPECIFICATIONS TABLE
|
Model |
HP-DM2013 |
HP-DM3013 |
|
IIT |
Gen2+ |
Gen3 |
|
Resolution (lp/mm) |
57-64 |
57-64 |
|
Photocathode type |
S25 |
GaAs |
|
S/N (dB) |
17-21 |
21-24 |
|
Luminous sensitivity (μА/lm) |
500-600 |
1500-1800 |
|
MTTF (hrs) |
10,000 |
10,000 |
|
Magnification |
3x |
3x |
|
FOV (deg) |
40 |
40 |
|
Detection distance (m) |
220-240 |
250-280 |
|
Diopter (deg) |
+5/-5 |
+5/-5 |
|
Lens system |
F1.2, 50mm |
F1.2, 50mm |
|
Range of focus (m) |
0.25--∞ |
0.25--∞ |
|
Dimensions (mm) |
158X73X54 |
158X73X54 |
|
Weight (g) |
578 |
578 |
|
Power supply (v) |
2.0-4.2V |
2.0-4.2V |
|
Battery type (v) |
1 3V CR123A lithium battery |
1 3V CR123A lithium battery |
|
Battery life (hrs) |
80(w/o IR) 40(w IR) |
80(w/o IR) 40(w IR) |
|
Operating temperature(℃) |
-40/+60 |
-40/+60 |
|
Environmental rating |
IP67 |
IP67 |
Structure name:
1. Power switch
2. Battery compartment
3. Objective lens
4. Eyepiece
5. Goggles
6. Mounting part
7. IR illuminator
8. Light detector
CUSTOMIZATION OPTIONS
Optical customization
Adjust magnification, objective aperture, light transmittance and image intensifier parameters.
Structural customization
Modify body size, interface type, IP rating and ergonomic structure.
Function customization
Customize brightness threshold, auto-protection parameters and intelligent sensing settings.
Accessory customization
Match infrared intensifier, sight bracket, eyecup and adaptive functional accessories.
Software customization
Customize display parameters, device protocols and supporting operation manuals.
Brand customization
Custom logo, neutral packaging and personalized product documentation.
OEM & ODM full development
Exclusive structural design and customized functional integration solutions.
APPLICATION
Night patrol
Night hunting
Field search, rescue
Outdoor field exploration
