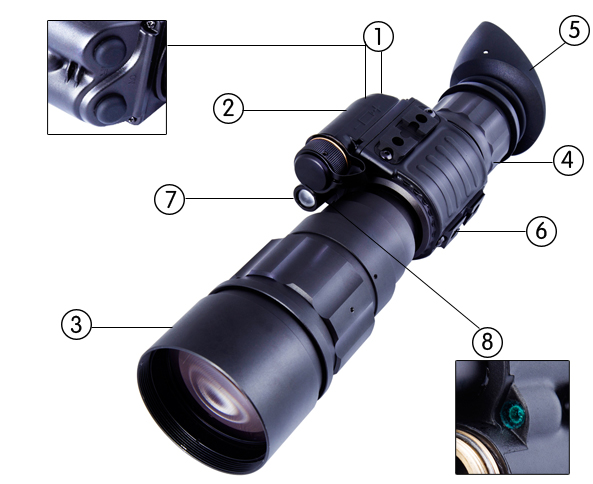

Structure name:
1. Power work switch
2. Battery compartment
3. Objective lens
4. Eyepiece
5. Goggles
6. Cards
7. Infrared auxiliary light source
8. Environmental detectors
Products
Hope-Wish develops cooled/uncooled IR lenses, thermal modules and night vision devices, with OEM & ODM available.
HP-DM2015 & HP-DM3015 night vision monoculars provide high magnification and great light transmittance, configurable with Gen 2+ / quasi-Gen3 image intensifier tubes.
Place of Origin: China
Model Number: HP-DM2015 3015
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW
HP-DM2015 & HP-DM3015 night vision monoculars provide high magnification and great light transmittance, configurable with Gen 2+ / quasi-Gen3 image intensifier tubes. Compatible with mobile phones and cameras for night shooting and expandable via various accessories, they are widely used for hunting, inspection, police patrol and other night observation tasks.
KEY FEATURES
Dual image intensifier options: Configurable with Gen 2+ or quasi-3rd generation tubes to match different operational requirements.
Robust construction with exquisite craftsmanship and ultra-broadband multi-layer anti-reflection lens coating, minimizing light loss and optimizing low-light observation performance.
Strong expandability: Supports external infrared illuminator and connection with smartphones, cameras and camcorders to realize night shooting.
IP67 dustproof and waterproof structure, capable of stable operation in fog, rain, dusty and sandstorm conditions.
Built-in anti-glare protection mechanism effectively prevents internal components from being damaged by strong ambient light.
Zero standby power consumption, together with embedded spring battery cover and concealed indicator design for reliable field deployment.
TECHNICAL SPECIFICATIONS TABLE
|
Model |
HP-DM2015 |
HP-DM3015 |
|
IIT |
Gen2+ |
Gen3 |
|
Resolution (lp/mm) |
57-64 |
57-64 |
|
Photocathode type |
S25 |
GaAs |
|
S/N (dB) |
17-21 |
21-24 |
|
Luminous sensitivity (μА/lm) |
500-600 |
1500-1800 |
|
MTTF (hrs) |
10,000 |
10,000 |
|
Magnification |
5x |
5x |
|
FOV (deg) |
40 |
40 |
|
Detection distance (m) |
220-240 |
250-280 |
|
Diopter (deg) |
+5/-5 |
+5/-5 |
|
Lens system |
F1.2, 60mm |
F1.2, 60mm |
|
Range of focus (m) |
0.25--∞ |
0.25--∞ |
|
Dimensions (mm) |
235X77X61 |
235X77X61 |
|
Weight (g) |
793 |
793 |
|
Power supply (v) |
2.0-4.2V |
2.0-4.2V |
|
Battery type (v) |
1 3V CR123A lithium battery |
1 3V CR123A lithium battery |
|
Battery life (hrs) |
80(w/o IR) 40(w IR) |
80(w/o IR) 40(w IR) |
|
Operating temperature(℃) |
-40/+60 |
-40/+60 |
|
Environmental rating |
IP67 |
IP67 |
Structure name:
1. Power work switch
2. Battery compartment
3. Objective lens
4. Eyepiece
5. Goggles
6. Cards
7. Infrared auxiliary light source
8. Environmental detectors
CUSTOMIZATION OPTIONS
Optical customization
Adjust magnification, objective aperture, light transmittance and image intensifier parameters.
Structural customization
Modify body size, interface type, IP rating and ergonomic structure.
Function customization
Customize brightness threshold, auto-protection parameters and intelligent sensing settings.
Accessory customization
Match infrared intensifier, sight bracket, eyecup and adaptive functional accessories.
Software customization
Customize display parameters, device protocols and supporting operation manuals.
Brand customization
Custom logo, neutral packaging and personalized product documentation.
OEM & ODM full development
Exclusive structural design and customized functional integration solutions.
APPLICATION
Night patrol
Night hunting
Outdoor field exploration
Field search, rescue
