Structure name:
1. Operation Button
2. Battery Compartment
3. Objective Lens
4. Protective Cover
5. Eyepiece
6. Rubber Eye Cap
7. Mounting Part
8. IR Illuminator
9. Light Detector
Products
Hope-Wish develops cooled/uncooled IR lenses, thermal modules and night vision devices, with OEM & ODM available.
HP-DM2041 and HP-DM3041 individual night vision monoculars enjoy wide market recognition. Featuring flexible installation methods, they support head/helmet wearing and weapon mounting to meet hunting needs. In addition, they can be connected to cameras for night scene recording.
Place of Origin: China
Model Number: HP-DM2041 3041
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW
HP-DM2041 and HP-DM3041 individual night vision monoculars enjoy wide market recognition. Featuring flexible installation methods, they support head/helmet wearing and weapon mounting to meet hunting needs. In addition, they can be connected to cameras for night scene recording.
KEY FEATURES
IP67 dustproof and waterproof available as an option for all-weather deployment.

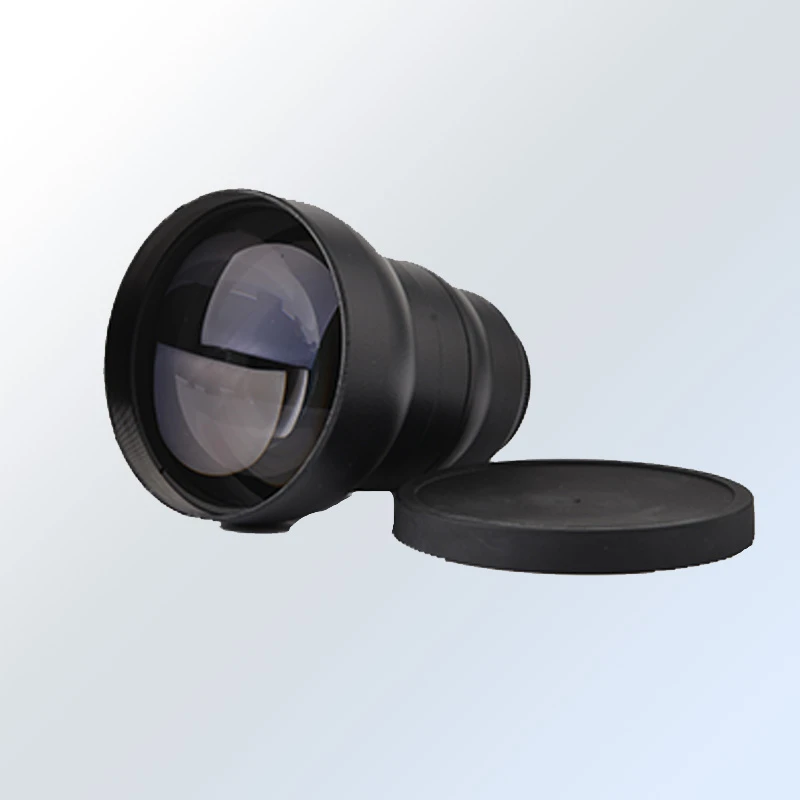

Magnification customizable via interchangeable objective lenses: 3x, 5x, 6x optional.
Built-in direction-sensing auto switch and auto brightness adjustment realize intelligent image control.
External infrared booster can be equipped to improve observation effect under ultra-low light.
Adjustable helmet mounting system accommodates various head shapes for stable wearing.
Energy-saving zero standby drain; embedded spring contact design optimizes battery connection and durability.
TECHNICAL SPECIFICATIONS TABLE
|
Model |
HP-DM2041 |
HP-DM3041 |
|
IIT |
Gen2+ |
Gen3 |
|
Resolution (lp/mm) |
57-64 |
57-64 |
|
Photocathode type |
S25 |
GaAs |
|
S/N (dB) |
17-21 |
21-24 |
|
Luminous sensitivity (μА/lm) |
500-600 |
1500-1800 |
|
MTTF (hrs) |
10,000 |
10,000 |
|
Magnification |
1x |
1x |
|
FOV (deg) |
40 |
40 |
|
Detection distance (m) |
220-240 |
250-280 |
|
Diopter (deg) |
+5/-5 |
+5/-5 |
|
Lens system |
F1.2, 25.8mm |
F1.2, 25.8mm |
|
Range of focus (m) |
0.25--∞ |
0.25--∞ |
|
Dimensions (mm) |
110 x 68 x 42 |
110 x 68 x 42 |
|
Weight (g) |
309 / 327( with battery) |
309 / 327( with battery) |
|
Power supply (v) |
2.0-4.2V |
2.0-4.2V |
|
Battery type (v) |
1 3V CR123A lithium battery |
1 3V CR123A lithium battery |
|
Battery life (hrs) |
80(w/o IR) 40(w IR) |
80(w/o IR) 40(w IR) |
|
Operating temperature(℃) |
-40/+60 |
-40/+60 |
|
Environmental rating |
IP67 |
IP67 |

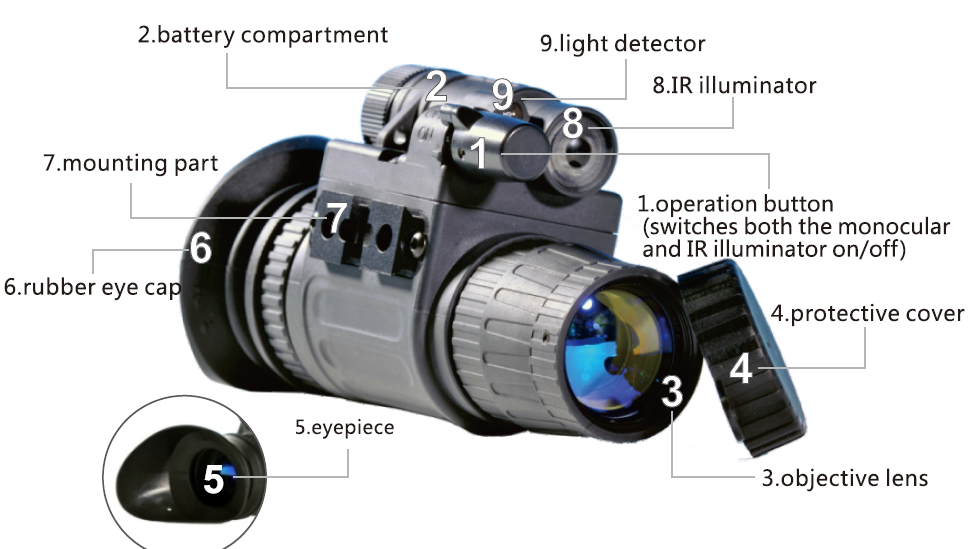

Structure name:
1. Operation Button
2. Battery Compartment
3. Objective Lens
4. Protective Cover
5. Eyepiece
6. Rubber Eye Cap
7. Mounting Part
8. IR Illuminator
9. Light Detector
CUSTOMIZATION OPTIONS
Optical customization
Adjust magnification, objective aperture, light transmittance and image intensifier parameters.
Structural customization
Modify body size, interface type, IP rating and ergonomic structure.
Function customization
Customize brightness threshold, auto-protection parameters and intelligent sensing settings.
Accessory customization
Match infrared intensifier, sight bracket, eyecup and adaptive functional accessories.
Software customization
Customize display parameters, device protocols and supporting operation manuals.
Brand customization
Custom logo, neutral packaging and personalized product documentation.
OEM & ODM full development
Exclusive structural design and customized functional integration solutions.
APPLICATION
Night patrol
Night hunting
Outdoor field exploration
Field search, rescue
