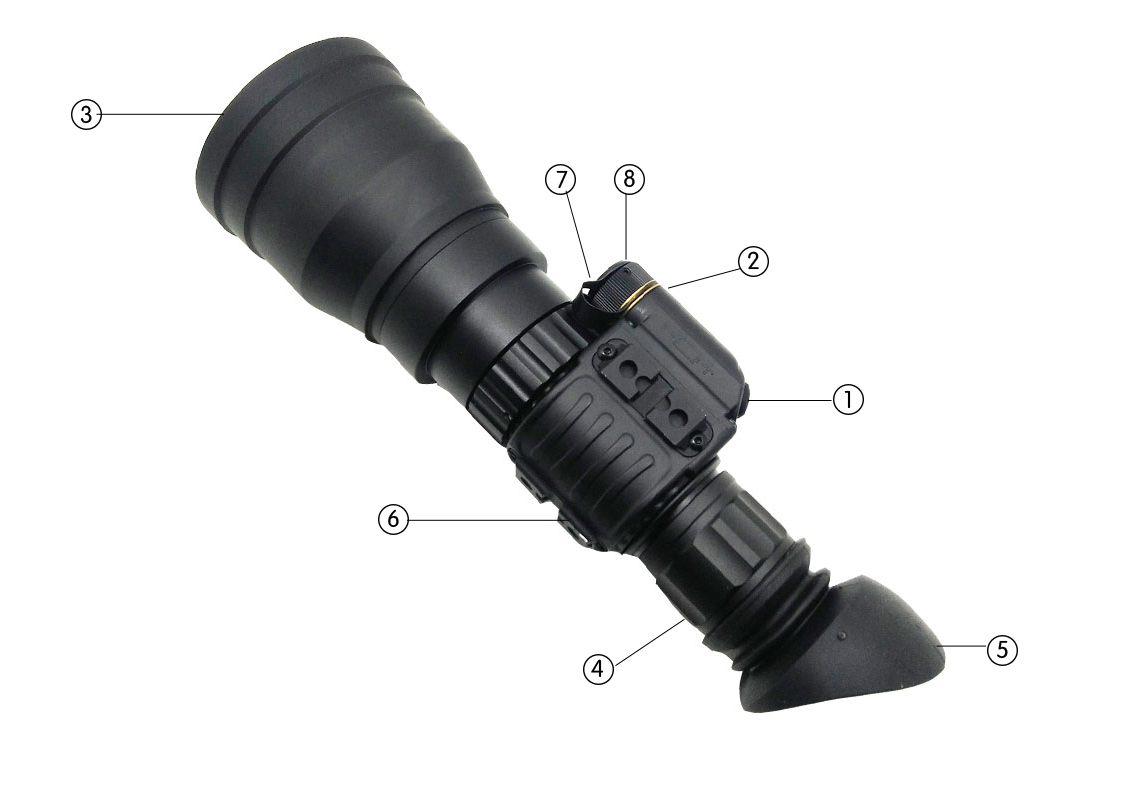

Structure name:
1. Power work switch
2. Battery compartment
3. Objective lens
4. Eyepiece
5. Goggles
6. Mounting part
7. Infrared auxiliary light source
8. Environmental detectors
Products
Hope-Wish develops cooled/uncooled IR lenses, thermal modules and night vision devices, with OEM & ODM available.
HP-DM2016 and HP-DM3016 are well-received multi-functional night vision monoculars on the market.
Place of Origin: China
Model Number: HP-DM2016 3016
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW
HP-DM2016 and HP-DM3016 are well-received multi-functional night vision monoculars on the market. Featuring high magnification for long observation distances and a large objective lens for excellent light transmittance, they can be fitted with Gen 2+ or quasi-Gen3 image intensifier tubes based on customer requirements.
As versatile monocular night vision devices, they can connect to smartphones, cameras and other equipment for night shooting with supporting functional accessories. A wide selection of optional attachments greatly extends the application range of the night vision monocular.
KEY FEATURES
Optional Gen 2+ or quasi-3rd generation image intensifier tubes to satisfy different observation performance requirements.
Robust body with exquisite craftsmanship; ultra-broadband multi-layer anti-reflection lens coating cuts light loss and improves low-light viewing performance.
Supports external infrared illuminator and connection to mobile phones, cameras and camcorders to realize nighttime photography.
IP67 dustproof and waterproof construction ensures stable operation in fog, splashes, dust and sandstorm environments.
Built-in anti-glare protection prevents the image intensifier from being damaged by strong ambient light.
Thoughtful practical design: embedded spring battery cover, eyepiece-mounted indicators and zero standby power consumption for long-time field missions.
TECHNICAL SPECIFICATIONS TABLE
|
Model |
HP-DM2016 |
HP-DM3016 |
|
IIT |
Gen2+ |
Gen3 |
|
Resolution (lp/mm) |
57-64 |
57-64 |
|
Photocathode type |
S25 |
GaAs |
|
S/N (dB) |
17-21 |
21-24 |
|
Luminous sensitivity (μА/lm) |
500-600 |
1500-1800 |
|
MTTF (hrs) |
10,000 |
10,000 |
|
Magnification |
6x |
6x |
|
FOV (deg) |
40 |
40 |
|
Detection distance (m) |
220-240 |
250-280 |
|
Diopter (deg) |
+5/-5 |
+5/-5 |
|
Lens system |
F1.2, 25.8mm |
F1.2, 25.8mm |
|
Range of focus (m) |
0.25--∞ |
0.25--∞ |
|
Dimensions (mm) |
275X85X83 |
275X85X83 |
|
Weight (g) |
1047 |
1047 |
|
Power supply (v) |
2.0-4.2V |
2.0-4.2V |
|
Battery type (v) |
1 3V CR123A lithium battery |
1 3V CR123A lithium battery |
|
Battery life (hrs) |
80(w/o IR) 40(w IR) |
80(w/o IR) 40(w IR) |
|
Operating temperature(℃) |
-40/+60 |
-40/+60 |
|
Environmental rating |
IP67 |
IP67 |
Structure name:
1. Power work switch
2. Battery compartment
3. Objective lens
4. Eyepiece
5. Goggles
6. Mounting part
7. Infrared auxiliary light source
8. Environmental detectors
CUSTOMIZATION OPTIONS
Optical customization
Adjust magnification, objective aperture, light transmittance and image intensifier parameters.
Structural customization
Modify body size, interface type, IP rating and ergonomic structure.
Function customization
Customize brightness threshold, auto-protection parameters and intelligent sensing settings.
Accessory customization
Match infrared intensifier, sight bracket, eyecup and adaptive functional accessories.
Software customization
Customize display parameters, device protocols and supporting operation manuals.
Brand customization
Custom logo, neutral packaging and personalized product documentation.
OEM & ODM full development
Exclusive structural design and customized functional integration solutions.
APPLICATION
Night patrol
Night hunting
Outdoor field exploration
Field search, rescue
GET A FREE QUOTE！
Quick response: share your needs with us please, we'll contact your in very short time.
