Hope-Wish develops cooled/uncooled IR lenses, thermal modules and night vision devices, with OEM & ODM available.

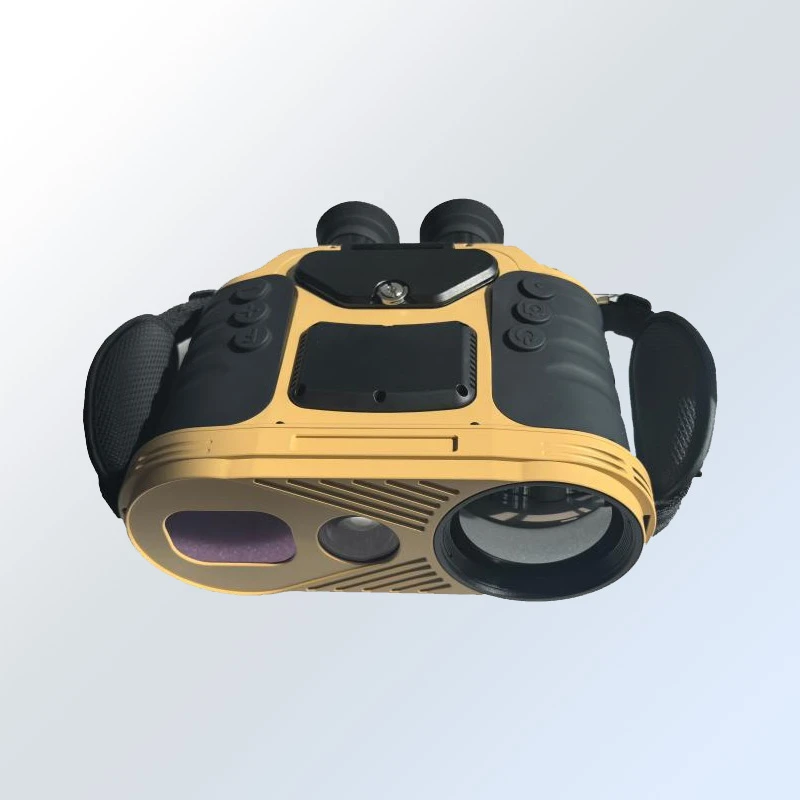

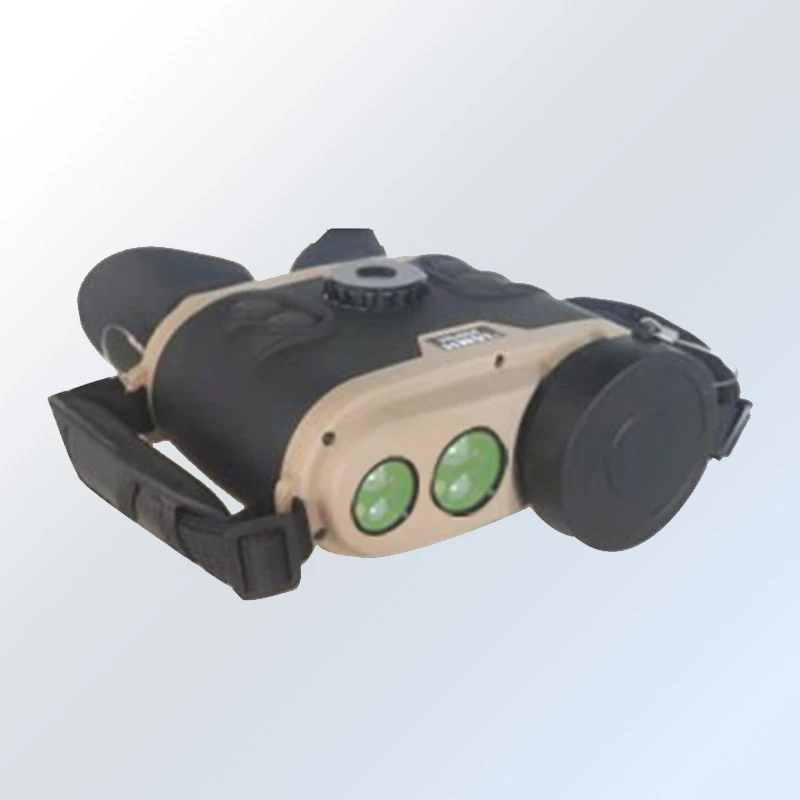

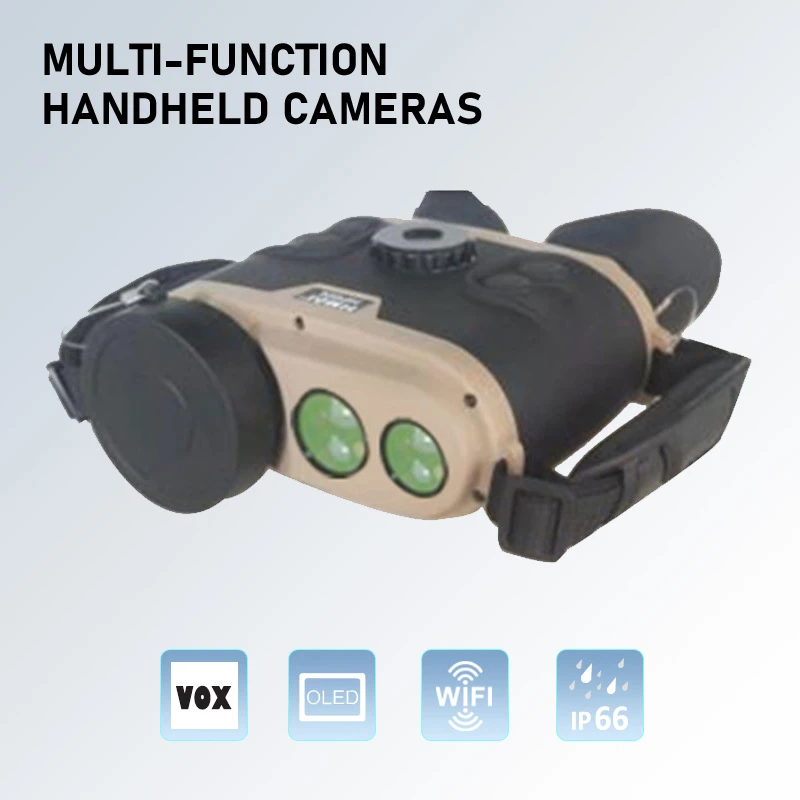

The multi-function day-night observer adopts high-sensitivity new-generation uncooled infrared focal-plane detector together with sophisticated imaging circuitry.
Place of Origin: China
Model Number: HP-GMF-650
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW
The multi-function day-night observer adopts high-sensitivity new-generation uncooled infrared focal-plane detector together with sophisticated imaging circuitry. Built around low-power architecture, the device offers over 5-hour continuous runtime via rechargeable battery, and also supports external power supply for extended field missions.
Engineered with ergonomic optimized form factor, this binocular unit integrates an electronic compass and satellite positioning module for fast target geolocation, while a laser module is available as an optional upgrade. It supports photo-video capture with advanced image compression. Optional WiFi wireless transmission module is configurable to realize long-term monitoring and on-site evidence collection. Benefiting from lightweight construction and human-centered ergonomic shaping, it provides comfortable handling and superior operating experience for long-time observation.
KEY FEATURES
High-performance Infrared Imaging Core New sensitive uncooled infrared focal-plane detector paired with advanced imaging circuit for reliable day-night observation.
Flexible Power Supply Solution Low-power design delivers more than 5-hour continuous operation with rechargeable battery; external power input is also supported.
Target Positioning Capability Built-in electronic compass and satellite positioning module, with optional laser module to achieve rapid target location.
Recording & Wireless Transmission Option Supports photo and video recording in compressed format. Optional Wi-Fi module enables remote monitoring and evidence gathering.
Ergonomic Binocular Structure Optimized human-oriented shape, lightweight build, delivering comfortable grip and improved user experience.
TECHNICAL SPECIFICATIONS TABLE
|
Item |
Specification |
|
Infrared thermal imaging |
|
|
Detector Type |
Non-cooled FPA |
|
Detector Specifications |
384×288@17μm；640×512@12μm（optional） |
|
Working band |
8～12μm |
|
Frame Rate |
50Hz |
|
NETD |
≤40mk |
|
Focal length |
50mm |
|
field of view |
7.5°×5.6° |
|
Focus method |
Manual focus |
|
Electronic zoom |
1×～8× |
|
Image polarity |
White Hot/Black Hot/False Color (9 types) |
|
Display control |
Brightness/Contrast/Auto Mode |
|
Image Processing |
Digital filtering/detail enhancement |
|
Reticle |
Eight Kind |
|
Hot spot capture |
support |
|
Laser ranging (optional) |
|
|
Working band |
905nm(safe for human eyes) |
|
Ranging range |
10m～1200m * |
|
Ranging accuracy |
<±1m |
|
Ranging frequency |
1 times/second |
|
Ranging efficiency |
>98% |
|
* Test conditions: visibility≥17km, target reflectivity≥30% |
|
CUSTOMIZATION OPTIONS
Optical Lens Customization
Customizable focal length and field of view to adjust detection range and magnification for different observation distances.
Imaging Parameter Tuning
Support customized thermal palettes, brightness, contrast and zoom parameters to adapt to various outdoor environments.
Temperature Measurement Customization
Adjustable temperature range, emissivity and temperature alarm threshold for different detection scenarios.
Mounting & Accessory Customization
Optional customized brackets and accessories to switch freely between handheld and fixed monitoring modes.
Appearance & Structure Customization
Support personalized grip design and exterior treatment while maintaining IP66 protection and nitrogen sealing performance.
Function Expansion Customization
Customizable recording, storage, shortcut keys and system calibration to meet diverse field operation needs.
APPLICATION
Night patrol
Night hunting
Outdoor field exploration
Field search, rescue
