Hope-Wish develops cooled/uncooled IR lenses, thermal modules and night vision devices, with OEM & ODM available.

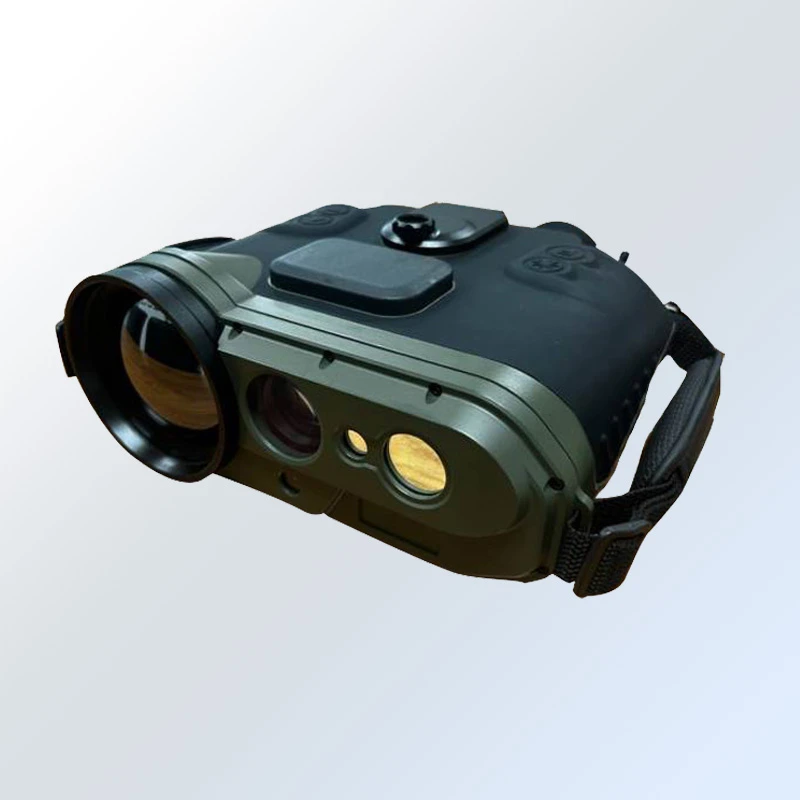

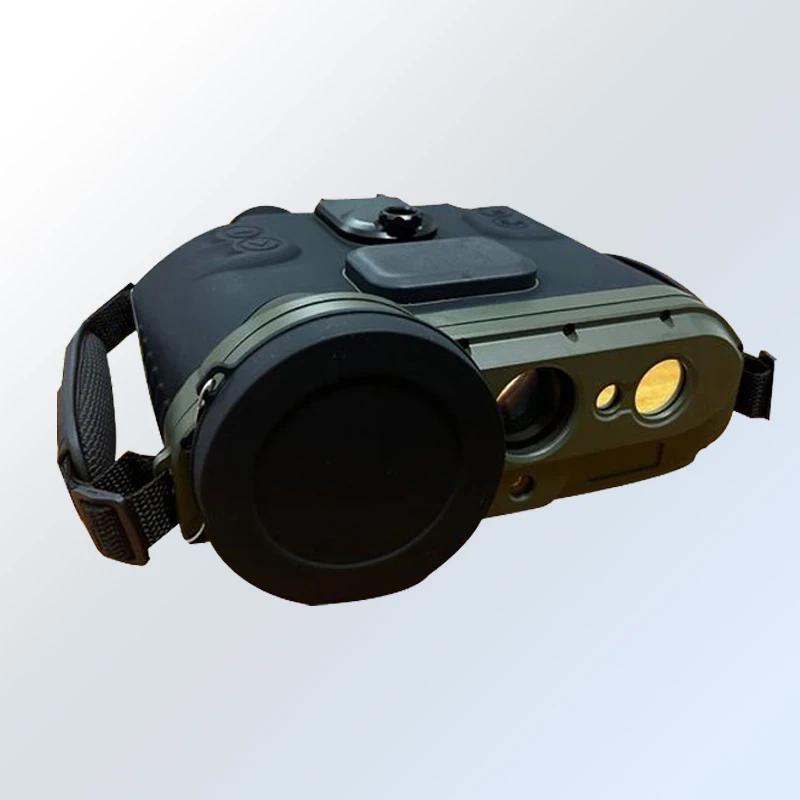

HP-MTC6107-LRF multi-purpose is a day and night handheld observation instrument, which composed of sensors, signal processing circuits and optical components.
Place of Origin: China
Model Number: HP-MTC6107-LRF6GY
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW
HP-MTC6107-LRF multi-purpose is a day and night handheld observation instrument, which composed of sensors, signal processing circuits and optical components. Equipped with a 640×512 non-cooled infrared detector, the system can provide high-quality high-resolution infrared images even under haze and smoke environments all night. The colorful daylight combined with the use of infrared detectors to help users find and compare hidden targets.
HP-MTC6107-LRF also integrates remote human eye safe laser ranging, GPS and high-precision digital electronic compass, which can help users quickly discover and dispose the target. The system uses advanced image compression algorithm to record real-time images, which can help users to sample and obtain evidence synchronously. The system has excellent waterproof and dust-proof performance, compact structure, light weight, durable, anti-seismic and anti-interference, and can be used in the whole climate environment.
KEY FEATURES
640×512 uncooled infrared plus color daylight sensor, can penetrates smoke and haze;
Eye‑safe laser rangefinder, GPS and digital electronic compass onboard for fast target positioning and disposal.
Advanced image compression supports on-site, real-time recording, convenient for synchronous sampling and evidence collection.
Lightweight and compact structure for easy handheld operation during long‑time outdoor tasks.
Waterproof, dust-proof, shock-resistant and anti-interference, delivers stable performance in various harsh field environments.
TECHNICAL SPECIFICATIONS TABLE
|
Item |
Specification |
|
Model |
HP-MTC6107-LRF |
|
Infrared Image |
|
|
Detector Type |
VOx FPA |
|
Detector Size |
640×512@12μm |
|
Spectral Range |
8~12μm |
|
Infrared Focal Length |
75 mm (F #1.0) |
|
Field of View |
5.9° × 4.7° |
|
Focus |
Motorized |
|
Zoom |
1x~2x |
|
Polarity |
White hot/black hot/Pseudo-color(8 kind) |
|
Display Control |
Brightness/Contrast |
|
Display |
2×1280×960 OLED |
|
Eyepiece Zoom |
12x(Diopter adjustment ) |
|
Colorful Daylight |
|
|
Detector |
Ultra Low light colorful CMOS |
|
Resolution |
2688×1520 |
|
Focal Length |
50mm |
|
Features |
3D DNR, Auto shutter, Wide dynamic |
|
Laser Rangefinder |
|
|
Wavelength range |
1535 nm (Eye Safety) |
|
Range |
50 m ~6000 mTest conditions: visibility ≥17km target reflectivity ≥30% |
|
Accuracy |
±2m |
|
Efficiency |
>98% |
|
Repetition Rate |
5/S |
|
GPS/BDS/COMPASS |
|
|
CEP |
CEP ＜2m |
|
Digital Compass |
Azimuth accuracy ＜0.8° (RMS)Pitch angle accuracy ＜0.3°(RMS) |
|
Photo/Video Storage |
|
|
Photo Snap |
JPEG |
|
Video Recording |
MP4 |
|
Recording Storage |
128Gb |
|
Video Data Output |
High speed USB2.0 |
|
WIFI |
|
|
Distance |
20m |
|
Mode |
AP / STA |
|
Power Supply |
|
|
Replaceable Lithium Batteries |
3×18650 |
|
Working Hours |
~ 4hours (IR mode) |
|
Environmental Parameters |
|
|
Protect Standard |
IP66 |
|
Operating Temperature |
-30℃~+55℃ |
|
Storage Temperature |
-40℃~+65℃ |
|
Humidity |
5%~95%(non-condensation) |
|
Vibration |
Sweep frequency:5-200-5Hz, G-force:2.5g |
|
Impact |
10g/11ms Half sine wave |
|
Physical Parameters |
|
|
Total Weight |
~2.2kg |
|
Dimensions (mm) |
256(L)×215(W)×95(H) |

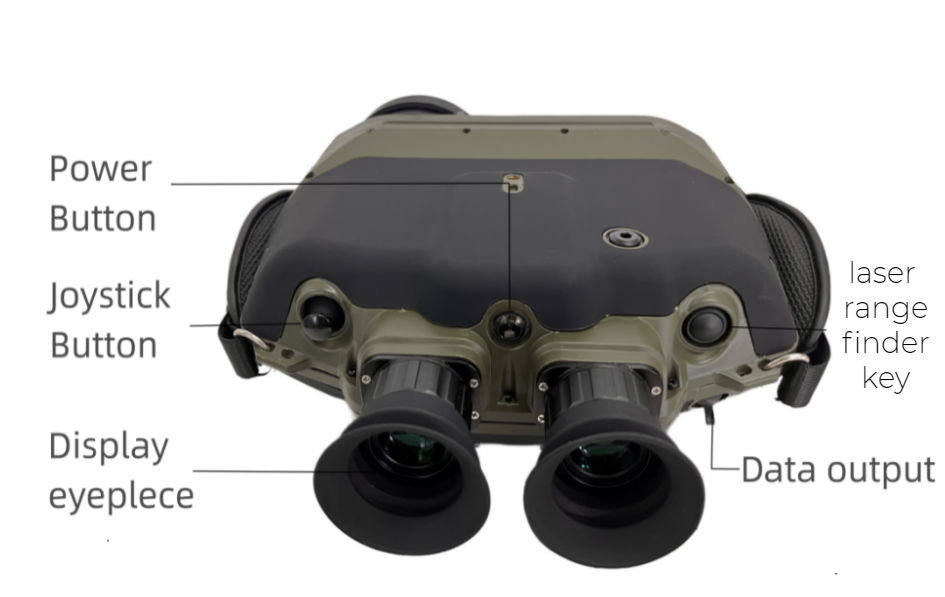

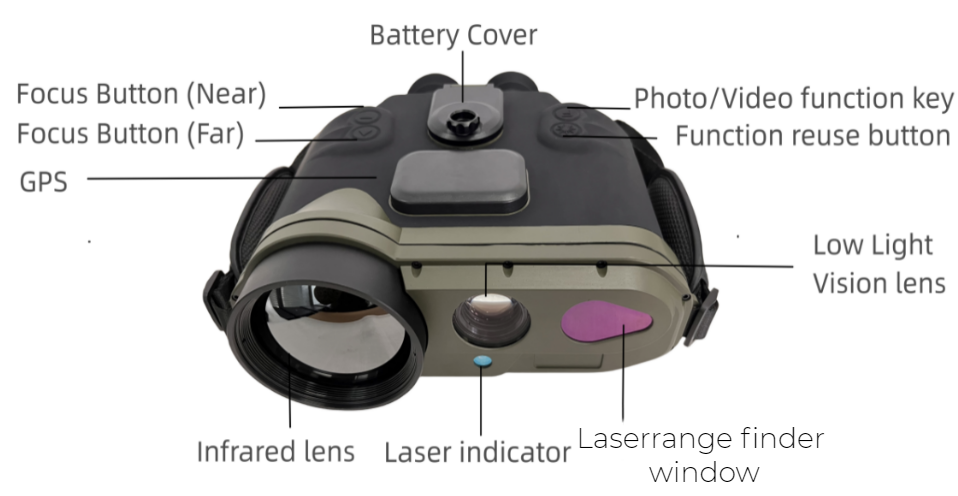

Product illustrate
CUSTOMIZATION OPTIONS
Optical Lens Customization
Customizable focal length and field of view to adjust detection range and magnification for different observation distances.
Imaging Parameter Tuning
Support customized thermal palettes, brightness, contrast and zoom parameters to adapt to various outdoor environments.
Temperature Measurement Customization
Adjustable temperature range, emissivity and temperature alarm threshold for different detection scenarios.
Mounting & Accessory Customization
Optional customized brackets and accessories to switch freely between handheld and fixed monitoring modes.
Appearance & Structure Customization
Support personalized grip design and exterior treatment while maintaining IP66 protection and nitrogen sealing performance.
Function Expansion Customization
Customizable recording, storage, shortcut keys and system calibration to meet diverse field operation needs.
APPLICATION
Night patrol
Night hunting
Outdoor field exploration
Field search, rescue
