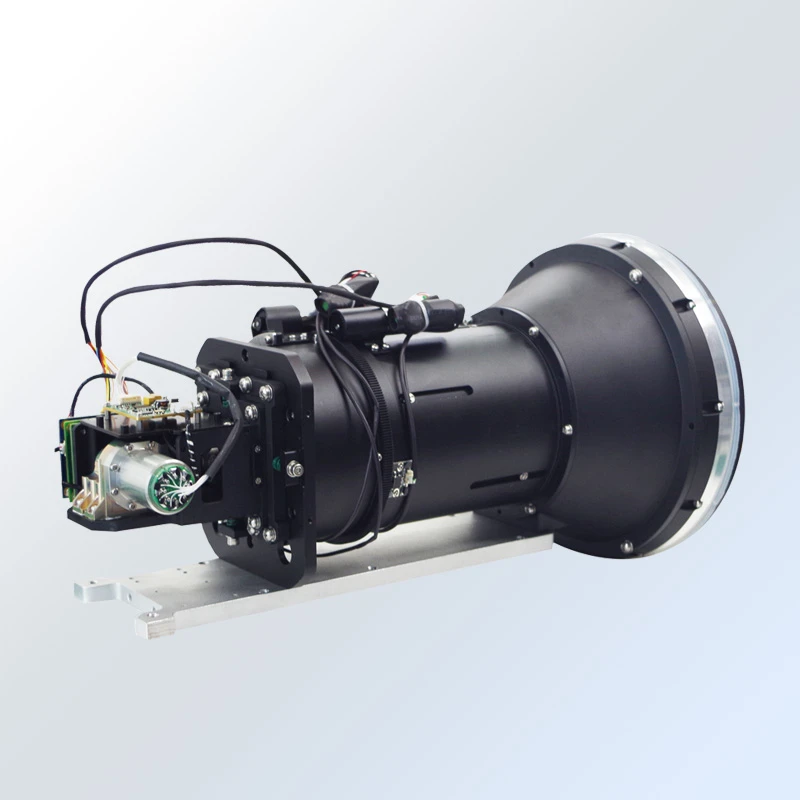

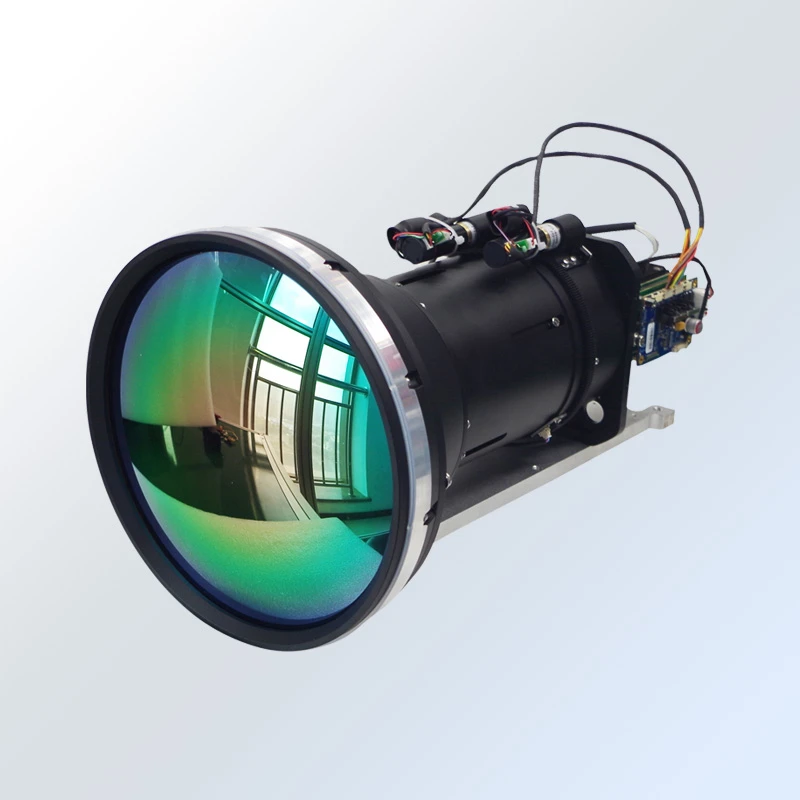

HP-CTC690110 cooled MWIR modules leverages advanced cooled infrared imaging and continuous zoom optical technology.
Place of Origin: China
Model Number: HP-CTC690110
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW
HP-CTC690110 cooled MWIR modules leverages advanced cooled infrared imaging and continuous zoom optical technology. Equipped with a high-sensitivity 640×512 cooled FPA detector featuring 15μm pixel pitch, it adopts sophisticated digital circuits and image processing algorithms to generate smooth, fine-grained thermal imagery.
The integrated miniaturized AS+DOE continuous zoom infrared lens enables a compact and lightweight form factor. Capable of wide-area scanning and detailed target observation, the module simplifies mechanical installation and system integration.
Combining high-performance infrared detector and premium electro-optical systems, HP-CTC690110 penetrates smoke, dust, precipitation and complete darkness to deliver reliable all-weather thermal surveillance.
KEY FEATURES
High Detection Sensitivity: NETD up to 20mK. Higher sensitivity than conventional modules, captures tiny temperature differences and provides finer thermal imaging details.
Premium Optical Design: Unique AS+DOE continuous zoom optics combined with high-precision 3CAM opto-mechanical structure. Enables seamless zoom switching for both wide scanning and long-distance recognition.
Advanced Non-uniformity Correction: Guarantees excellent image uniformity and wide dynamic range. Maintains stable and consistent image quality during long-time operation.
SDE Image Detail Enhancement: Smooths images and suppresses noise; supports 255-level adjustable image enhancement. Allows flexible tuning for different monitoring environments.
Anti-sun Damage Protection: Active strong light protection function to avoid detector solar burn-out. Shields intense sunlight and protects cooled detector from permanent damage.
TECHNICAL SPECIFICATIONS TABLE
|
Parameter |
Specification |
|
Detection |
Vehicle 22000m,Human 18000m； |
|
Recognition |
Vehicle 15000m; Human 9000m； |
|
Detector |
Cooled MCT Focal Plane Array |
|
Resolution |
640×512 pixels |
|
Spectral Range |
3.7μm～4.8μm |
|
NETD |
25mK |
|
Lens |
90mm～1100mm, 12x continuous optical zoom |
|
Network Interface |
IP network interface, supports ONVIF/RTSP/GB/T28181 protocols |
|
Intelligent Analysis Functions |
Motion detection, intrusion detection, boundary crossing, object entry & departure, loitering detection, focus detection, rapid movement detection, obstruction detection |
CUSTOMIZATION OPTIONS
Optical customization
Adjust focal length, zoom ratio, F-number and DLC coating parameters
Structural customization
Modify lens size, interface, IP rating and heat dissipation design
Motor control customization
Optimize zoom/focus speed, communication protocol and drive mode
Brand customization
logo, neutral packaging and branded user manuals
Function customization
Custom calibration parameters, matched SDK for detectors
OEM & ODM full development
Exclusive optical scheme and integrated thermal lens modules
APPLICATION
Seaport and airport monitoring
Water system monitoring
Highways and railways monitoring
