Hope-Wish develops cooled/uncooled IR lenses, thermal modules and night vision devices, with OEM & ODM available.

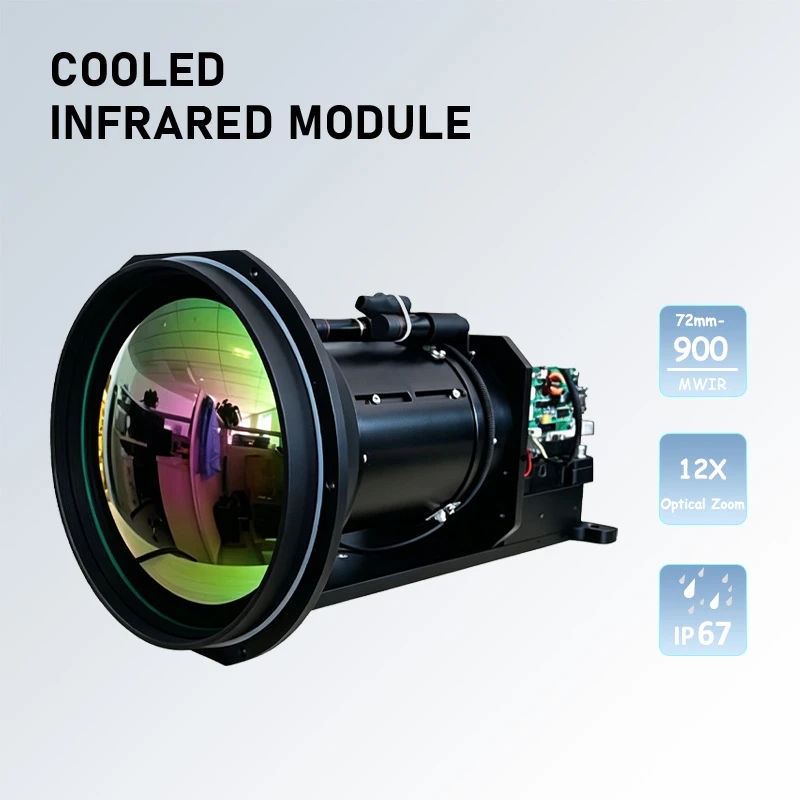

HP-CTC127290 is a high-precision MWIR modules designed for low-contrast and long-range detection scenarios. Featuring a 1280×1024 high-resolution FPA detector and self-developed zoom optics, it excels at capturing tiny temperature variations and hidden target details.
Place of Origin: China
Model Number: HP-CTC127290
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW
HP-CTC127290 is a high-precision MWIR modules designed for low-contrast and long-range detection scenarios. Featuring a 1280×1024 high-resolution FPA detector and self-developed zoom optics, it excels at capturing tiny temperature variations and hidden target details.
Integrated multi-algorithm processing systems including adaptive denoising and SDE enhancement greatly optimize image uniformity and visual definition. With adjustable dynamic range and stable 1280×1024@50Hz output across -40℃ to +60℃, the module adapts dynamically to changing scenes for reliable all-condition industrial imaging.
KEY FEATURES
Independent & Domestic Supply Chain: High-definition cooled detector, infrared zoom lens, infrared FPGA image processor and SoC processor adopt mature domestic components. Features open interfaces for easy secondary development.
High Detection Sensitivity: NETD up to 20mK. Higher sensitivity than conventional modules, reduces infrared signal attenuation in smoke, dust and haze.
Premium Optical Design: Unique AS+DOE continuous zoom optics combined with high-precision 3CAM opto-mechanical structure. Achieves compact size while retaining high zoom imaging performance.
SDE Image Detail Enhancement: Smooths images and suppresses noise; supports 255-level adjustable image enhancement. Optimizes faint target display and improves recognition accuracy.
Built-in Intelligent Functions: Support cross-line detection, intrusion detection, target recognition and other smart analytics. Realizes automatic alarm and intelligent monitoring.
Diversified Display Modes: Multiple pseudo-color palettes and black-hot / white-hot polarity options. Matches various observation habits and application standards.
TECHNICAL SPECIFICATIONS TABLE
|
Parameter |
Specification |
|
Detection |
Vehicle 22000m,Human 18000m； |
|
Recognition |
Vehicle 15000m; Human 9000m； |
|
Detector |
Cooled MCT Focal Plane Array |
|
Resolution |
1280×1024 pixels |
|
Spectral Range |
3.7μm～4.8μm |
|
NETD |
20mK |
|
Lens |
72mm～900mm, continuous optical zoom, F4.0 |
|
Network Interface |
IP network interface, supports ONVIF / RTSP / GB/T28181 protocols |
|
Intelligent Analysis |
Motion detection, intrusion detection, boundary crossing, object entry & departure, loitering detection, focus detection, rapid movement detection, obstruction detection |
CUSTOMIZATION OPTIONS
Optical customization
Adjust focal length, zoom ratio, F-number and DLC coating parameters
Structural customization
Modify lens size, interface, IP rating and heat dissipation design
Motor control customization
Optimize zoom/focus speed, communication protocol and drive mode
Brand customization
logo, neutral packaging and branded user manuals
Function customization
Custom calibration parameters, matched SDK for detectors
OEM & ODM full development
Exclusive optical scheme and integrated thermal lens modules
APPLICATION
Seaport and airport monitoring
Urban security and anti-UAV applications
Highways and railways monitoring
