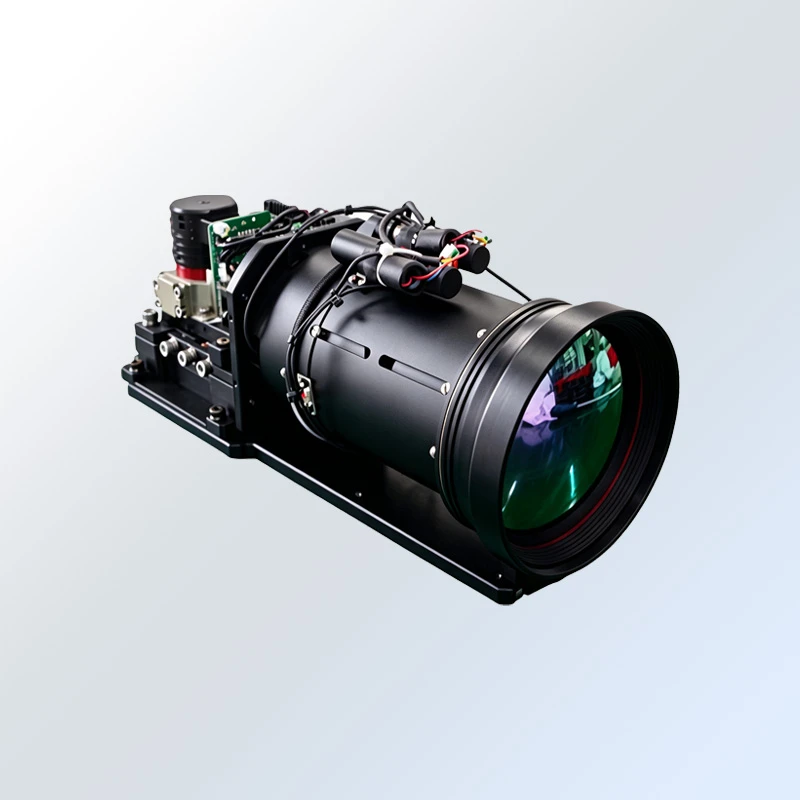

HP-CTC62245 cooled MWIR modules is developed based on cutting-edge cooled infrared technology and continuous zoom infrared optical technology.
Place of Origin: China
Model Number: HP-CTC62245
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW
HP-CTC62245 cooled MWIR modules is developed based on cutting-edge cooled infrared technology and continuous zoom infrared optical technology. It adopts a high-sensitivity cooled FPA detector with 640×512 resolution and 15μm pixel pitch. Advanced digital circuits and image processing algorithms deliver delicate and smooth thermal images.
Equipped with a miniaturized infrared lens designed with AS+DOE continuous zoom optical technology, the module features compact size and light weight. It meets both wide-area search and target observation requirements and facilitates installation and integration.
Integrated with ultra-sensitive infrared detector and state-of-the-art electronic and optical systems, HP-CTC62245 can penetrate dust, smoke, rain, snow and darkness to support all-weather observation.
KEY FEATURES
High Detection Sensitivity: NETD up to 20mK. Higher sensitivity than conventional modules, delivering clearer thermal details in fog, rain and snow with minimal weather interference.
Premium Optical Design: Unique AS+DOE continuous zoom optics combined with high-precision 3CAM opto-mechanical structure. Offers high infrared transmittance and smooth zoom for search and long-range observation.
Advanced Non-uniformity Correction: Guarantees excellent image uniformity and wide dynamic range. Corrects picture deviation and adapts to complex temperature scenes.
SDE Image Detail Enhancement: Smooths images and suppresses noise; supports 255-level adjustable image enhancement. Sharpens target edges while effectively reducing image noise.
Diversified Display Modes: Multiple pseudo-color palettes and black-hot / white-hot polarity options. Improves identification of low-contrast and hidden thermal targets.
TECHNICAL SPECIFICATIONS TABLE
|
Parameter |
Specification |
|
Detection |
Vehicle 19000m,Human 12000m； |
|
Recognition |
Vehicle 9000m; Human 4500m； |
|
Detector |
Cooled MCT Focal Plane Array |
|
Resolution |
640×512 Pixels |
|
Spectral Range |
3.7μm～4.8μm (MWIR) |
|
NETD |
20mK |
|
Lens |
22mm～450mm, 20× continuous optical zoom |
|
Network Interface |
IP network interface, supports ONVIF/RTSP/GB/T28181 protocols |
|
Intelligent Analysis Functions |
Motion detection, intrusion detection, boundary crossing, object entry & departure, loitering detection, focus detection, rapid movement detection, obstruction detection |
CUSTOMIZATION OPTIONS
Optical customization
Adjust focal length, zoom ratio, F-number and DLC coating parameters
Structural customization
Modify lens size, interface, IP rating and heat dissipation design
Motor control customization
Optimize zoom/focus speed, communication protocol and drive mode
Brand customization
logo, neutral packaging and branded user manuals
Function customization
Custom calibration parameters, matched SDK for detectors
OEM & ODM full development
Exclusive optical scheme and integrated thermal lens modules
APPLICATION
Seaport and airport monitoring
Ecological and environmental monitoring
Urban security and anti-UAV applications
Highways and railways monitoring
