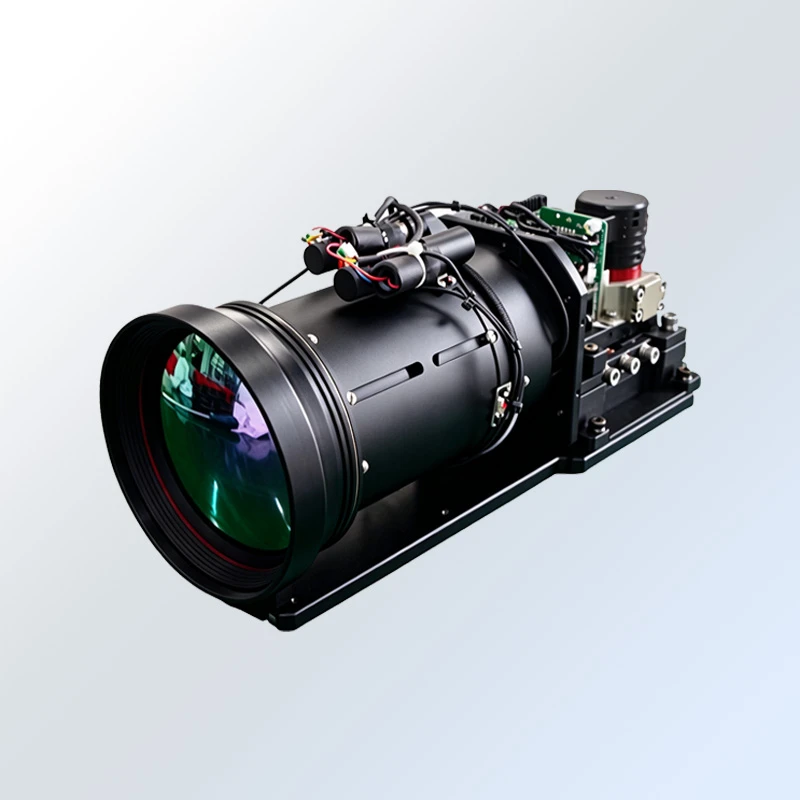

The HP-CTC122245 high-definition cooled MWIR modules are equipped with a 1280×1024 ultra-high-resolution cooled FPA detector and self-developed long-focal continuous zoom lens.
Place of Origin: China
Model Number: HP-CTC122245
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW
The HP-CTC122245 high-definition cooled MWIR modules are equipped with a 1280×1024 ultra-high-resolution cooled FPA detector and self-developed long-focal continuous zoom lens. It accurately captures subtle target features in long-distance and low-temperature-difference scenarios.
Adopting AS and DOE hybrid optical technology with precise 3CAM opto-mechanical integration, the compact zoom lens realizes smooth stepless switching from wide-angle to telephoto view. Built with advanced DSP architecture, adaptive noise reduction and SDE detail enhancement algorithms, the module eliminates fixed-pattern noise and improves low-contrast target recognition.
It stably outputs 1280×1024@50Hz HD video within -40℃~+60℃, with adaptive dynamic range for harsh industrial and scientific applications.
KEY FEATURES
High Detection Sensitivity: NETD up to 20mK. Higher sensitivity than conventional modules, performs excellently in low-temperature difference and bad weather scenarios.
Premium Optical Design: Unique AS+DOE continuous zoom optics combined with high-precision 3CAM opto-mechanical structure. Boosts infrared transmittance and extends effective detection distance.
Advanced Non-uniformity Correction: Guarantees excellent image uniformity and wide dynamic range. Eliminates fixed pattern noise and improves overall image layering.
Diversified Display Modes: Multiple pseudo-color palettes and black-hot / white-hot polarity options. Helps operators quickly locate hidden targets in low visibility.
Anti-sun Damage Protection: Active strong light protection function to avoid detector solar burn-out. Ensures safe outdoor all-day thermal imaging operation.
TECHNICAL SPECIFICATIONS TABLE
|
Parameter |
Specification |
|
Detection |
Vehicle 19000m,Human 12000m； |
|
Recognition |
Vehicle 9000m; Human 4500m； |
|
Detector |
Cooled MCT Focal Plane Array |
|
Resolution |
1280×1024 pixels |
|
Spectral Range |
3.7μm～4.8μm |
|
NETD |
20mK |
|
Lens |
22mm～450mm, 20× continuous optical zoom |
|
Network Interface |
IP network interface, supports ONVIF/RTSP/GB/T28181 protocols |
|
Intelligent Analysis Functions |
Motion detection, intrusion detection, boundary crossing, object entry & departure, loitering detection, focus detection, rapid movement detection, obstruction detection |
CUSTOMIZATION OPTIONS
Optical customization
Adjust focal length, zoom ratio, F-number and DLC coating parameters
Structural customization
Modify lens size, interface, IP rating and heat dissipation design
Motor control customization
Optimize zoom/focus speed, communication protocol and drive mode
Brand customization
logo, neutral packaging and branded user manuals
Function customization
Custom calibration parameters, matched SDK for detectors
OEM & ODM full development
Exclusive optical scheme and integrated thermal lens modules
APPLICATION
Seaport and airport monitoring
Urban security and anti-UAV applications
Highways and railways monitoring
