Hope-Wish develops cooled/uncooled IR lenses, thermal modules and night vision devices, with OEM & ODM available.

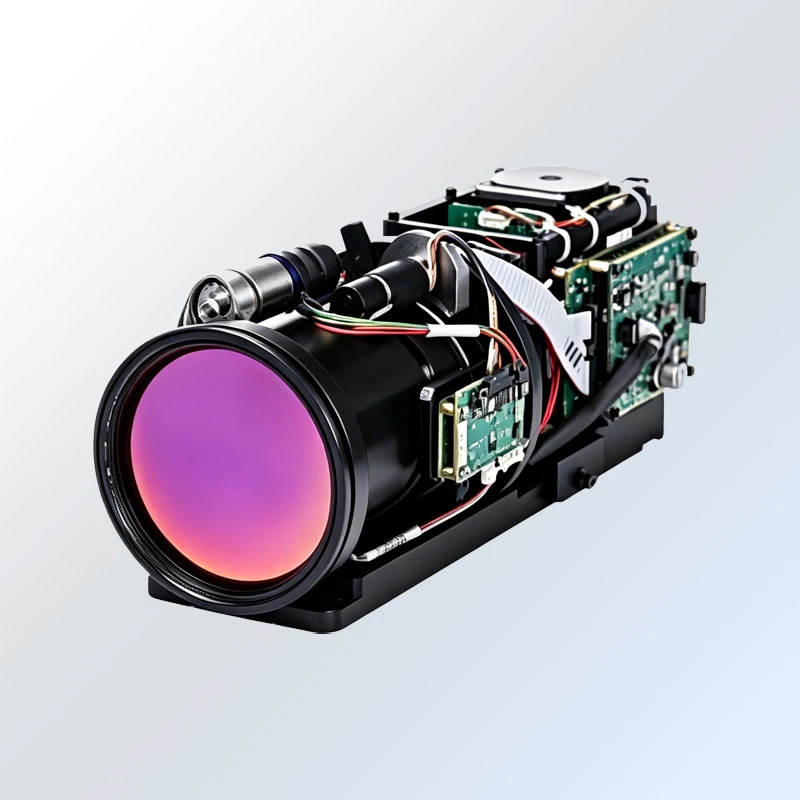

HP-CTC61532 MWIR modules adopts cutting-edge cooled infrared technology paired with continuous zoom infrared optics.
Place of Origin: China
Model Number: HP-CTC61532
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW
HP-CTC61532 MWIR modules adopts cutting-edge cooled infrared technology paired with continuous zoom infrared optics. It utilizes 640×512 resolution cooled FPA detector with 15μm pixel pitch. Robust digital circuits and image processing deliver clear, smooth thermal images.
Designed with miniaturized AS+DOE zoom lens, the lightweight compact module satisfies dual demands of large-range search and precise target observation, lowering difficulties for equipment assembly.
Integrated high-sensitivity detector and advanced electro-optical components allow the module to operate through dust, smoke, adverse weather and zero-light conditions, supporting round-the-clock field monitoring tasks.
KEY FEATURES
High Detection Sensitivity: NETD up to 20mK. Higher sensitivity than conventional modules, less affected by fog, rain and snow, delivering richer image details.
Premium Optical Design: Unique AS+DOE continuous zoom optics combined with high-precision 3CAM opto-mechanical structure. High infrared transmittance and smooth zoom performance for wide-area search and long-range identification.
Advanced Non-uniformity Correction: Guarantees excellent image uniformity and wide dynamic range.
SDE Image Detail Enhancement: Smooths images and suppresses noise; supports 255-level adjustable image enhancement.
Diversified Display Modes: Multiple pseudo-color palettes and black-hot / white-hot polarity options. Easy to detect low-contrast hidden targets for various scenarios.
TECHNICAL SPECIFICATIONS TABLE
|
Parameter |
Specification |
|
Detection |
Vehicle 18000m,Human 11000m； |
|
Recognition |
Vehicle 7000m; Human 3500m； |
|
Detector |
Cooled MCT Focal Plane Array |
|
Resolution |
640×512 pixels |
|
Spectral Range |
3.7μm～4.8μm |
|
NETD |
20mK |
|
Lens |
15mm～300mm, 20× continuous optical zoom |
|
Network Interface |
IP network interface, supports ONVIF/RTSP/GB/T28181 protocols |
|
Intelligent Analysis |
Motion detection, intrusion detection, boundary crossing, object entry & departure, loitering detection, focus detection, rapid movement detection, obstruction detection |
CUSTOMIZATION OPTIONS
Optical Customization
Tailor focal length, zoom ratios, F-number, and DLC coating parameters to your specific requirements.
Structural Customization
Modify lens dimensions, interfaces, IP ratings, and thermal management designs for seamless integration.
Motor Control Optimization
Fine-tune zoom/focus speeds and customize communication protocols and drive modes.
Brand Personalization
Enhance your market presence with custom logos, neutral packaging, and branded user manuals.
Functional Customization
Access custom calibration parameters and dedicated SDKs perfectly matched to your detectors.
Full OEM & ODM Development
Partner with us for exclusive optical schemes and fully integrated thermal lens modules.
APPLICATION

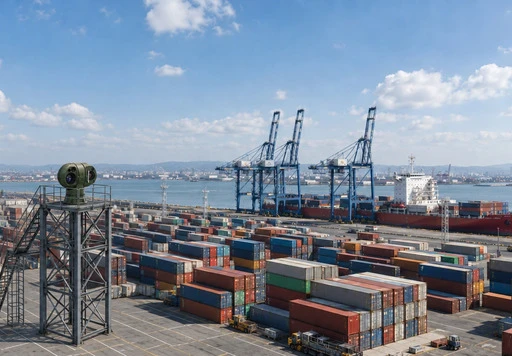

Seaport and airport monitoring
Water system monitoring
Urban security and anti-UAV applications
Highways and railways monitoring
