Hope-Wish develops cooled/uncooled IR lenses, thermal modules and night vision devices, with OEM & ODM available.
MWIR (Medium-Wave Infrared) Lenses operate within the 3.7μm～4.8μm atmospheric transmission window.
Place of Origin: China
Model Number: HP-CTC3030
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW

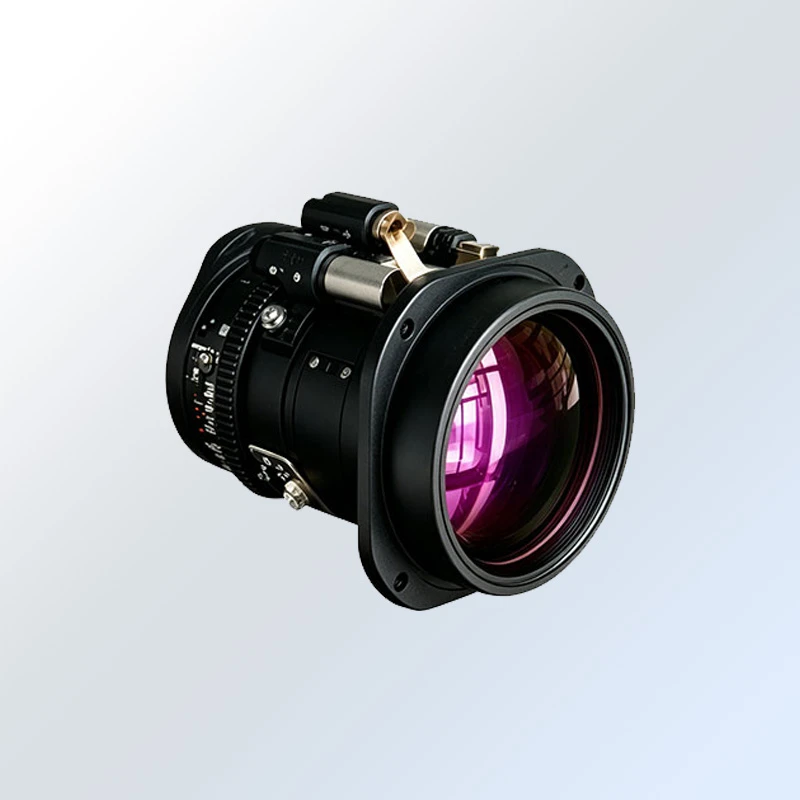

MWIR (Medium-Wave Infrared) Lenses operate within the 3.7μm～4.8μm atmospheric transmission window. They deliver excellent thermal imaging performance under low light, haze and smoke conditions, widely adopted for perimeter surveillance, airborne observation, target tracking and industrial thermal inspection.
KEY FEATURES
Cooled infrared lens, supporting up to 10x or more optical continuous zoom;
Utilizing AS+DOE optical design, it boasts excellent image quality and high lens transmittance;
Employing a 3CAM zoom structure design, it meets high optical axis precision requirements, achieving zoom optical axis stabilization accuracy of up to 3 pixels;
Supports brushless motor drive, providing high-precision feedback and an ultra-long lifespan, with a motor lifespan of up to 10 million cycles;
Precision optical design with an ultra-long optical focal length, reaching up to 1500mm, making it widely applicable for long-distance observation;
Supports 1280 resolution detectors, producing clear images without vignetting or dark corners;
TECHNICAL SPECIFICATIONS
|
Parameter |
Specification |
|
Wavelength |
3.7μm～4.8μm |
|
Pixel pitch |
15μm |
|
Resolution |
640×512 |
|
Lens |
30mm～300mm, 10× continuous optical zoom, F5.5 |
|
Angular Resolution |
0.5mrad～0.05mrad |
|
Field of View (FOV) |
18.2°×14.6°～1.8°×1.5° |
|
Lens Control |
Motorized zoom, motorized focus |
|
Operating Temperature |
-40℃～+60℃ |
|
Protection Rating |
IP67 |
CUSTOMIZATION OPTIONS
Optical Customization
Adjust focal length, zoom ratio, F-number and DLC coating parameters
Structural Customization
Modify lens size, interface, IP rating and heat dissipation design
Motor control customization
Optimize zoom/focus speed, communication protocol and drive mode
Brand customization
Logo, neutral packaging and branded user manuals
Functional Customization
Custom calibration parameters, matched SDK for detectors
OEM & ODM full development
Exclusive optical scheme and integrated thermal lens modules
Application
Seaport and airport monitoring

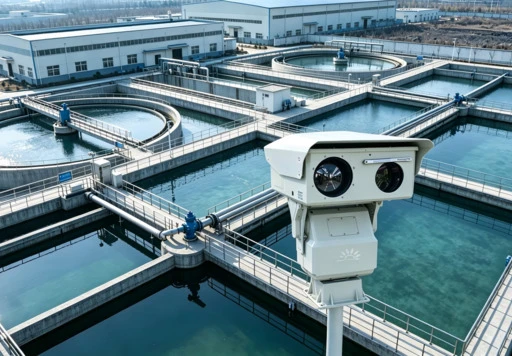

Water system monitoring
Urban security and anti-UAV applications
Highways and railways monitoring
