Hope-Wish develops cooled/uncooled IR lenses, thermal modules and night vision devices, with OEM & ODM available.

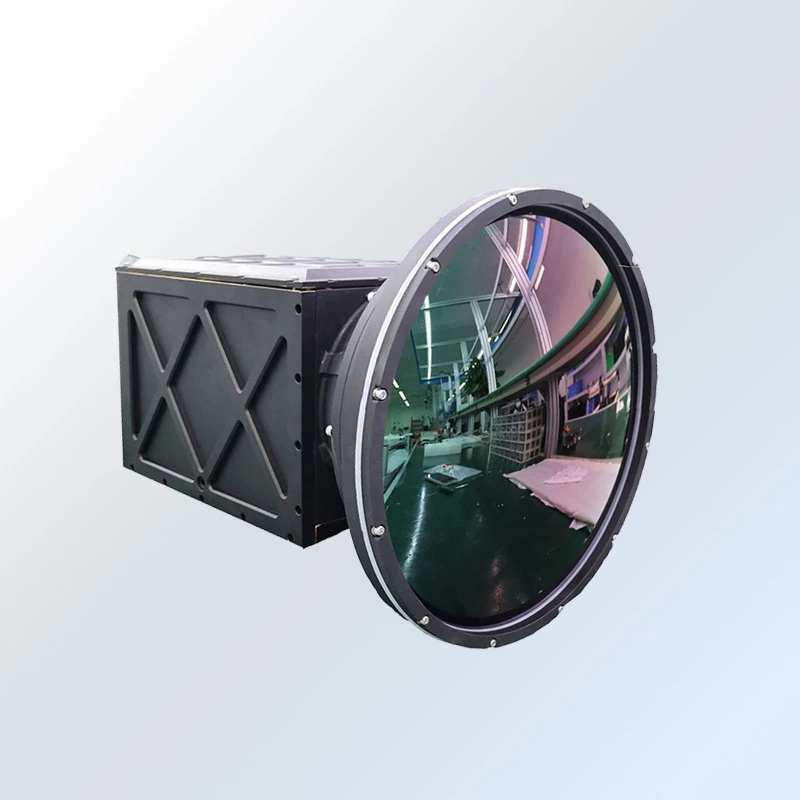

MWIR (Medium-Wave Infrared) Lenses deliver excellent thermal imaging performance under low light, haze and smoke conditions, widely adopted for perimeter surveillance, airborne observation, target tracking and industrial thermal inspection.
Place of Origin: China
Model Number: HP-CTC120150
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW
MWIR (Medium-Wave Infrared) Lenses deliver excellent thermal imaging performance under low light, haze and smoke conditions, widely adopted for perimeter surveillance, airborne observation, target tracking and industrial thermal inspection.
Supports up to 12x or more of continuous optical zoom; Employs AS+DOE optical design for superior image quality and high lens transmittance; Utilizes a 3CAM zoom structure design to meet high optical axis precision requirements, achieving zoom optical axis stabilization accuracy of up to 3 pixels;
KEY FEATURES
Supports brushless motor drive, providing high-precision feedback and an ultra-long lifespan, with a motor lifespan of up to 10 million cycles;
Precision optical design with an ultra-long optical focal length, making it widely applicable for long-distance observation;
Supports 1280X1024 resolution detectors, producing clear images without vignetting or dark corners;
Outstanding optical design, it significantly reduces infrared cold reflection effects, providing superior image quality due to its extremely low cold reflection phenomenon.
TECHNICAL SPECIFICATIONS TABLE
|
Parameter |
Specification |
|
Wavelength |
3.7μm～4.8μm |
|
Pixel pitch |
15μm |
|
Resolution |
640×512 |
|
Lens |
120mm～1500mm, 12× continuous optical zoom, F4.0 |
|
Angular Resolution |
0.13mrad～0.01mrad |
|
Field of View (FOV) |
4.6°×3.7°～0.37°×0.29° |
|
Lens Control |
Motorized zoom, motorized focus |
|
Operating Temperature Range |
-40℃～+60℃ |
|
Protection Rating |
IP67 (front lens only) |
CUSTOMIZATION OPTIONS
Optical customization
Adjust focal length, zoom ratio, F-number and DLC coating parameters
Structural customization
Modify lens size, interface, IP rating and heat dissipation design
Motor control customization
Optimize zoom/focus speed, communication protocol and drive mode
Brand customization
logo, neutral packaging and branded user manuals
Function customization
Custom calibration parameters, matched SDK for detectors
OEM & ODM full development
Exclusive optical scheme and integrated thermal lens modules
APPLICATION
Seaport and airport monitoring
Urban security and anti-UAV applications
Highways and railways monitoring
