Hope-Wish develops cooled/uncooled IR lenses, thermal modules and night vision devices, with OEM & ODM available.
MWIR (Medium-Wave Infrared) Lenses operate within the 3.7μm～4.8μm atmospheric transmission window.
Place of Origin: China
Model Number: HP-CTC3066HD
Minimum Order Quantity: 1 set

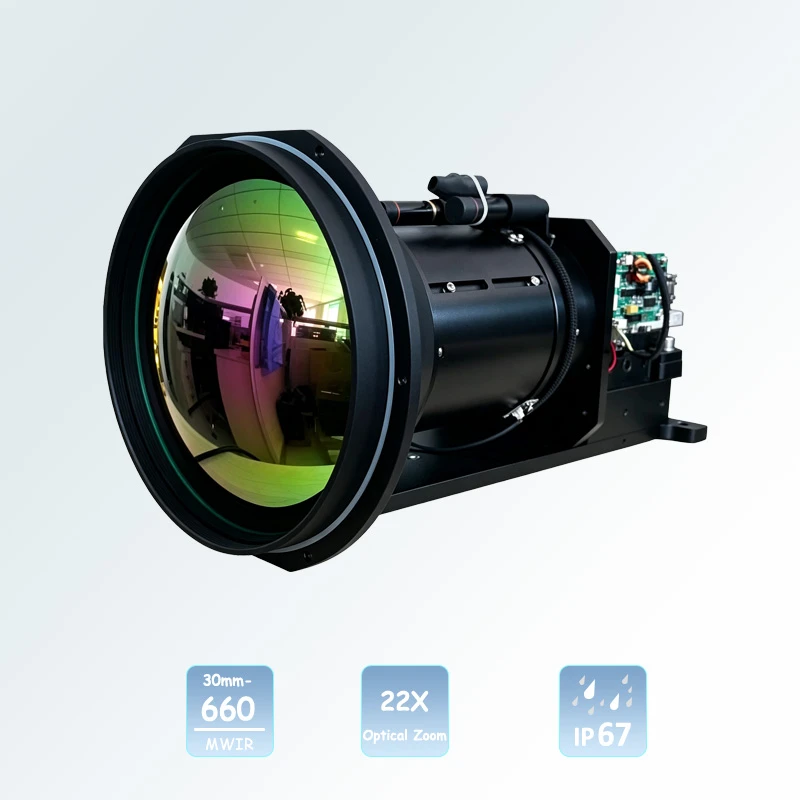

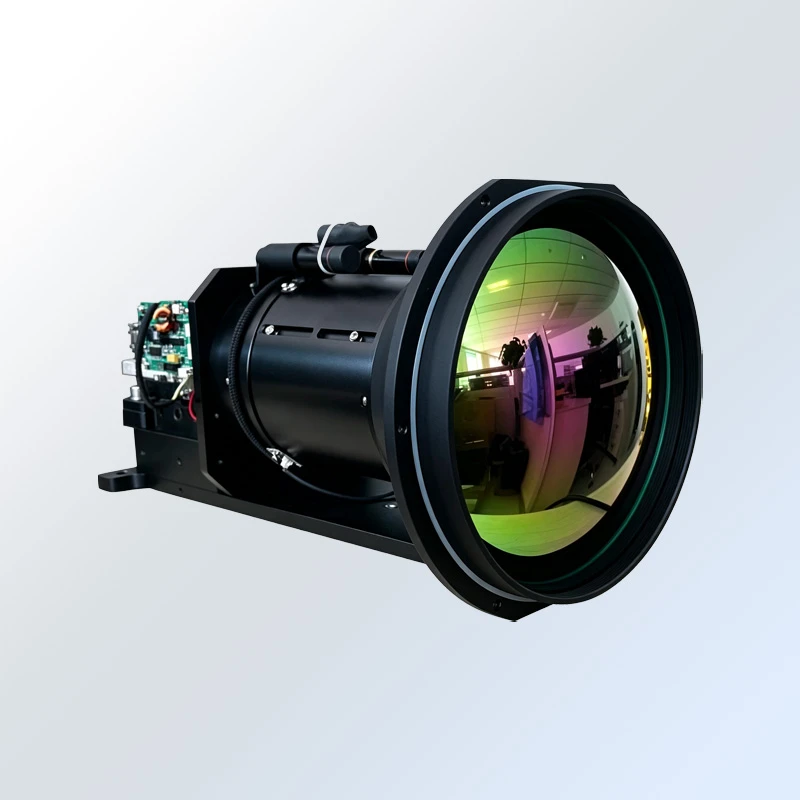

PRODUCT OVERVIEW
MWIR (Medium-Wave Infrared) Lenses operate within the 3.7μm～4.8μm atmospheric transmission window. They deliver excellent thermal imaging performance under low light, haze and smoke conditions, widely adopted for perimeter surveillance, airborne observation, target tracking and industrial thermal inspection.
Supports up to 22X optical zoom; Employs AS+DOE optical design for superior image quality and high lens transmittance; Utilizes a 3CAM zoom structure design to meet high optical axis precision requirements, achieving zoom optical axis stabilization accuracy of up to 3 pixels;
KEY FEATURES
Supports brushless motor drive, providing high-precision feedback and an ultra-long lifespan, with a motor lifespan of up to 10 million cycles;
Precision optical design with an ultra-long optical focal length, reaching up to 1500mm, making it widely applicable for long-distance observation;
Supports 1280 resolution detectors, producing clear images without vignetting or dark corners;
TECHNICAL SPECIFICATIONS TABLE
|
Parameter |
Specification |
|
Wavelength |
3.7μm～4.8μm |
|
Pixel pitch |
10μm |
|
Resolution |
1280×1024 |
|
Lens |
30mm～660mm, 22× continuous optical zoom, F4.0 |
|
Angular Resolution |
0.33mrad～0.015mrad |
|
Field of View (FOV) |
24.1°×19.4°～1.11°×0.89° |
|
Lens Control |
Motorized zoom, motorized focus |
|
Operating Temperature Range |
-40℃～+60℃ |
|
Protection Rating |
IP67 (front element only) |
CUSTOMIZATION OPTIONS
Optical Customization
Tailor focal length, zoom ratios, F-number, and DLC coating parameters to your specific requirements.
Structural Customization
Modify lens dimensions, interfaces, IP ratings, and thermal management designs for seamless integration.
Brand Personalization
Enhance your market presence with custom logos, neutral packaging, and branded user manuals.
Functional Customization
Access custom calibration parameters and dedicated SDKs perfectly matched to your detectors.
Full OEM & ODM Development
Partner with us for exclusive optical schemes and fully integrated thermal lens modules.
APPLICATION

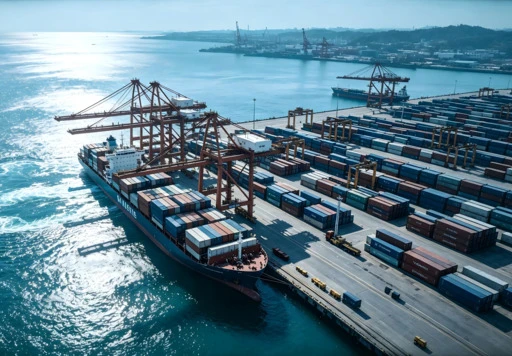

Seaport and airport monitoring

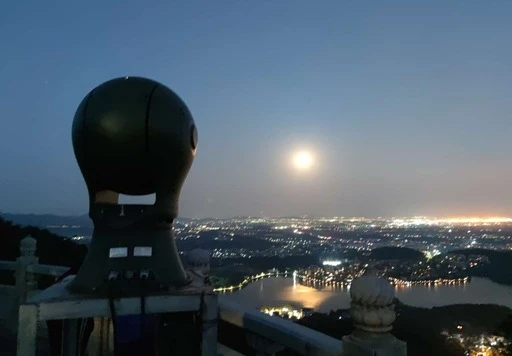

City security and anti-UAV applications
Highways and railways monitoring
