Hope-Wish develops cooled/uncooled IR lenses, thermal modules and night vision devices, with OEM & ODM available.

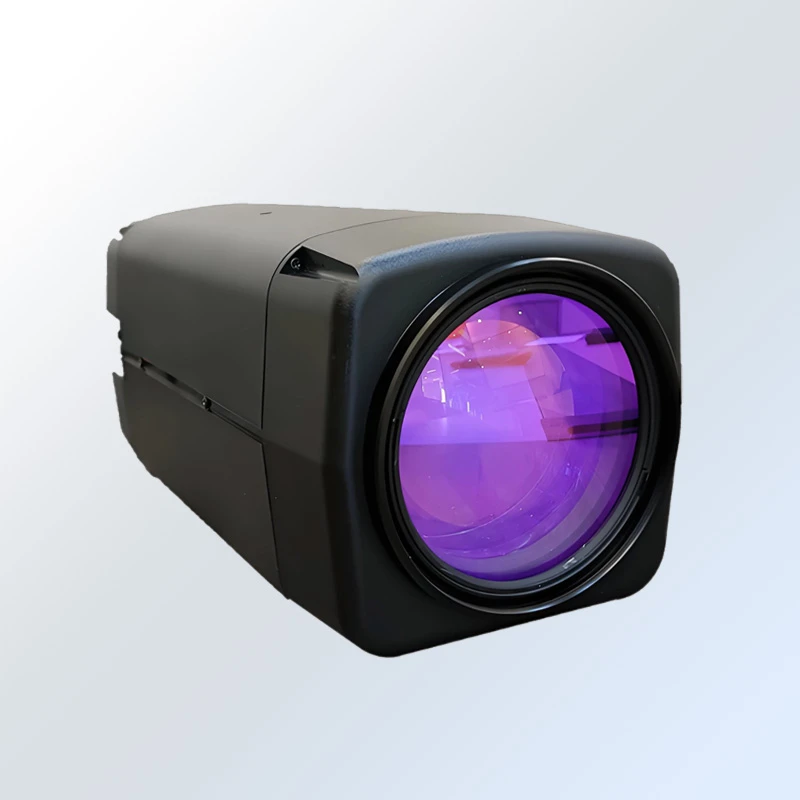

This high-performance SWIR modules adopts a 1/2" InGaAs SWIR sensor with resolution of 1280×1024 and 5μm pixel pitch for delicate target imaging.
Place of Origin: China
Model Number: HP-SC122750
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW
This high-performance SWIR modules adopts a 1/2" InGaAs SWIR sensor with resolution of 1280×1024 and 5μm pixel pitch for delicate target imaging. It integrates a 18–500mm lens with 27× optical zoom and variable F-number F3.5–6.9, supporting motorized zoom as well as electric / auto focus.
Equipped with Ethernet and SDI output interfaces, the module supports AGC, brightness & contrast adjustment, image rotation and mirror functions. Capable of stable operation within -40℃ ~ 60℃, it is suitable for long-range observation, outdoor inspection and industrial vision applications.
KEY FEATURES
Operates at 0.9–1.7μm short-wave infrared band with high-sensitivity InGaAs FPA sensor
Uncooled design, compact dimension, low power consumption and fast startup
Good penetration against smoke, dust and thin mist, stable imaging under low-light conditions
Visible-light-like image features, convenient for target recognition and algorithm processing
Supports passive ambient light mode or active imaging with SWIR illumination
Equipped with standard interfaces such as GigE Vision and USB for easy system integration
TECHNICAL SPECIFICATIONS TABLE
|
Parameter |
Specification |
|
Detector |
1/2" InGaAs SWIR Sensor |
|
Resolution |
1280×1024, 5μm pixel pitch |
|
Lens |
18mm～500mm, 27× continuous optical zoom |
|
F-number |
F3.5～F6.9 |
|
Lens Control |
Motorized zoom, motorized / auto focus |
|
External Interfaces |
Ethernet, SDI, etc. |
|
Camera Control |
AGC control, brightness & contrast adjustment, image rotation, image mirroring, etc. |
|
Operating Temperature |
-40℃～+60℃ |
CUSTOMIZATION OPTIONS
Optical customization
Adjust focal length, zoom ratio, F-number and DLC coating parameters
Structural customization
Modify lens size, interface, IP rating and heat dissipation design
Motor control customization
Optimize zoom/focus speed, communication protocol and drive mode
Brand customization
logo, neutral packaging and branded user manuals
Function customization
Custom calibration parameters, matched SDK for detectors
OEM & ODM full development
Exclusive optical scheme and integrated thermal lens modules
APPLICATION
Seaport and airport monitoring
Urban security and anti-UAV applications
Highways and railways monitoring
