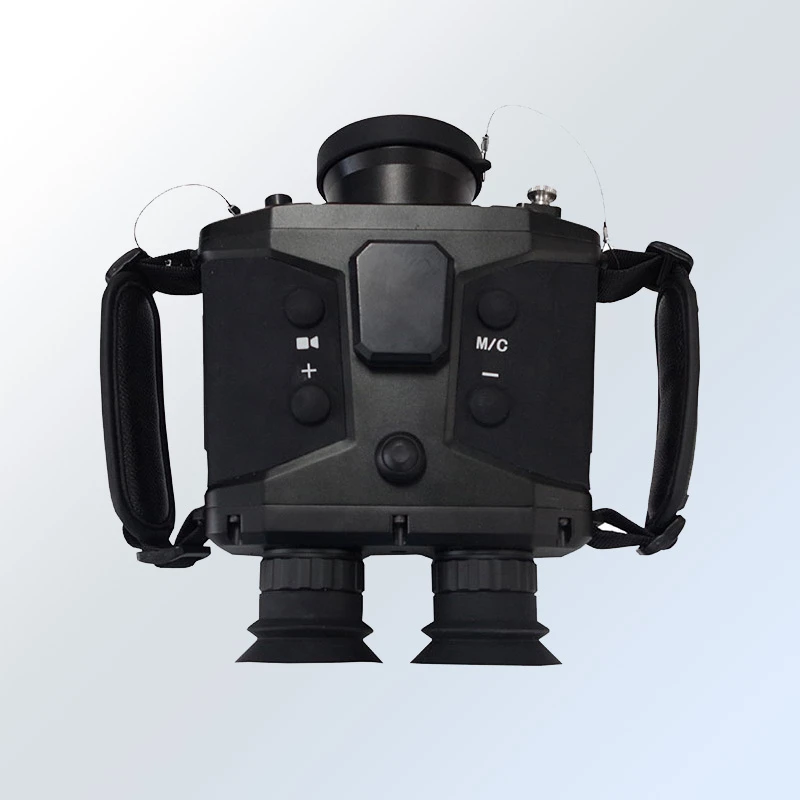

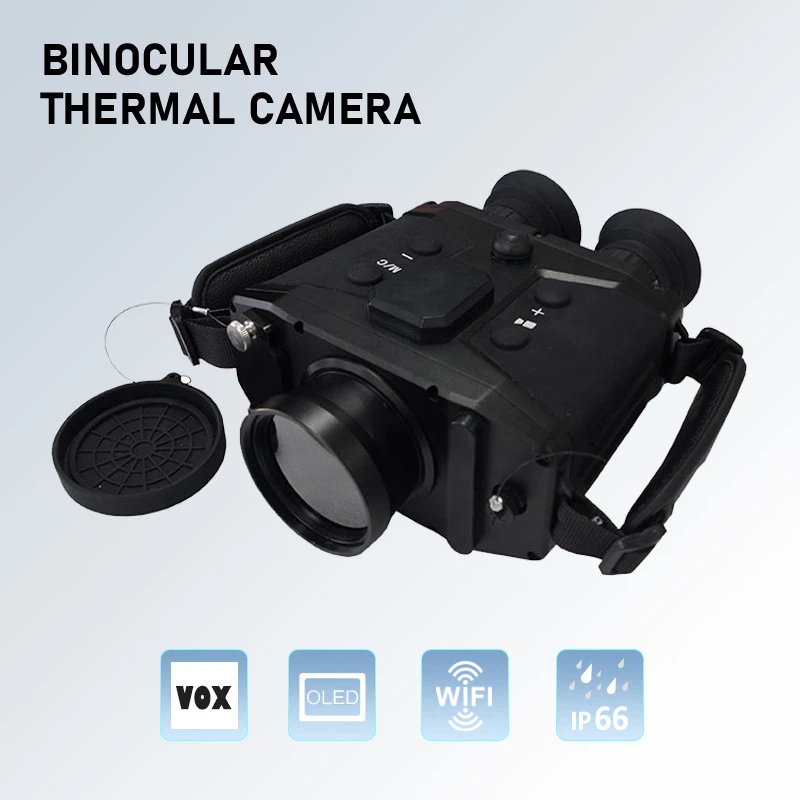

The MTC series of portable thermal imagers are designed for long-range mobile surveillance in the field, employing an advanced uncooled infrared core, proprietary imaging circuitry, and a high-quality AS optical system.
Place of Origin: China
Model Number: HP-MTC4105
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW
The MTC series of portable thermal imagers are designed for long-range mobile surveillance in the field, employing an advanced uncooled infrared core, proprietary imaging circuitry, and a high-quality AS optical system. It realizes effective target search and observation capability at distances reaching 5 km, ideal for large-area open-field missions. Its compact lightweight build and low-power design reduce user burden during extended field deployment.
Widely applied to nighttime evidence gathering and long-range target search tasks. Constructed from monolithic aluminum alloy enclosure with internal nitrogen purge against lens fogging, the unit achieves IP66 protection to sustain steady imaging performance under rough outdoor meteorological conditions.
KEY FEATURES
Lightweight low-power form for mobile observation Tailored for field mobile surveillance. Low weight and minimal power draw support extended handheld operation during outdoor missions.
Robust aluminum-alloy enclosure with IP66 rating Solid aluminum alloy construction delivers IP66-grade defense against rain and dust, keeping the unit reliable under tough outdoor conditions.
5th-generation uncooled thermal sensor onboard Powered by modern fifth-generation uncooled infrared detector, laying solid foundation for dependable thermal detection performance.
50 mK NETD for superior environmental adaptability Featuring NETD up to 50 mK for outstanding thermal sensitivity. Rain, fog and snow exert limited interference, enabling finer thermal image output.
SDE technology for noise-free image presentation Integrated SDE image detail enhancement suppresses noise artifacts, sharpening target details for clearer observation.
Flexible B-W and inverted B-W display modes Both standard black-white and reversed black-white color schemes are available for quick target identification against varied backgrounds.
TECHNICAL SPECIFICATIONS TABLE
|
Model |
HP-MTC4105 |
|
Detection
|
Vehicle 3800m |
|
Human 1300m |
|
|
Identification
|
Vehicle 970m |
|
Human 400m |
|
|
Sensor |
5th generation UFPA |
|
Resolution |
336*256 |
|
Wave length |
7.5~14μm |
|
Digital zoom |
2x ; 4 x |
|
Color mode |
Hot-white/Hot-black |
|
Lens |
50mm, F1.0 |
|
FOV |
10°*8° |
|
Eyepiece display |
640*480 , binocular display with eyeshade, high hidden |
|
Image storage/video |
4G memory card, 1000photos in JPEG format, video for 3.5 hours in AVI format, USB export |
|
ECO mode |
Auto |
|
Operation |
Four buttons, two at each side |
|
Battery parameter |
Operation voltage DC: +2.6V～+5.5V; |
|
Power consumption＜2.8W (video time); |
|
|
2xlithium battery,25500，3000 mAh ; |
|
|
Continuous working time : > 5 hours at no record, >3.5 hours at record. |
|
|
Using life > 500 times , charge/ discharge cycles |
|
|
Starting time |
<3s |
|
Interface |
Video output |
|
Weatherproof |
IP66 |
|
Humidity |
5%～95%(non-condensing) |
|
Storage temperature |
-40℃~+70℃ |
|
Operation temp. |
-20℃~+60℃ |
|
Weight |
<1.5kg (Included battery) |
|
Accessories |

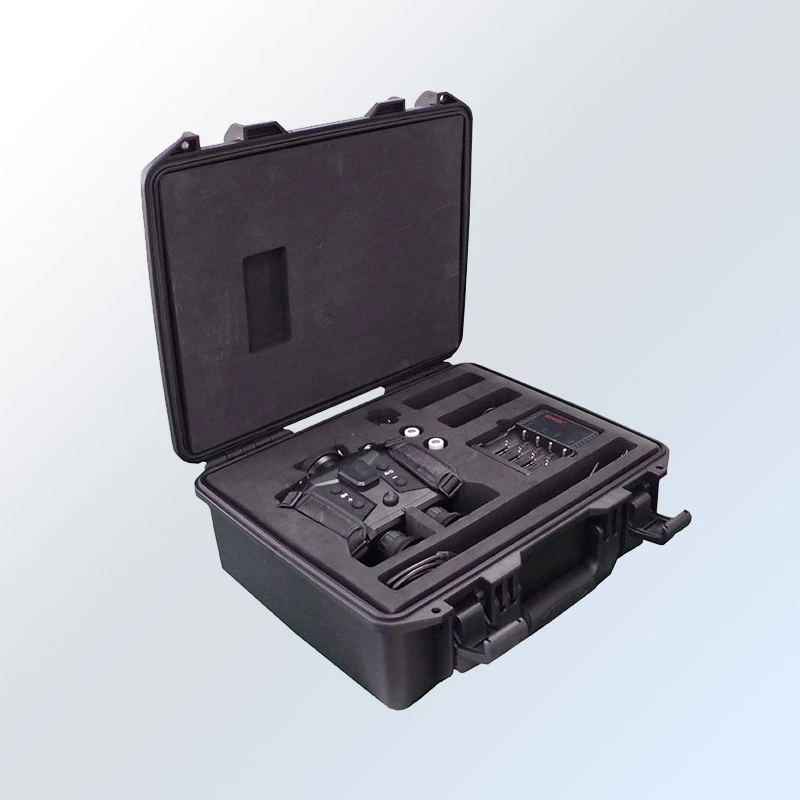

Video cable, lens cap, rubber covert, charger, lithium battery, suitcase |
CUSTOMIZATION OPTIONS
Optical Lens Customization
Customizable focal length and field of view to adjust detection range and magnification for different observation distances.
Imaging Parameter Tuning
Support customized thermal palettes, brightness, contrast and zoom parameters to adapt to various outdoor environments.
Temperature Measurement Customization
Adjustable temperature range, emissivity and temperature alarm threshold for different detection scenarios.
Mounting & Accessory Customization
Optional customized brackets and accessories to switch freely between handheld and fixed monitoring modes.
Appearance & Structure Customization
Support personalized grip design and exterior treatment while maintaining IP66 protection and nitrogen sealing performance.
Function Expansion Customization
Customizable recording, storage, shortcut keys and system calibration to meet diverse field operation needs.
APPLICATION
Night patrol
Night hunting
Outdoor field exploration
Field search, rescue
