Hope-Wish develops cooled/uncooled IR lenses, thermal modules and night vision devices, with OEM & ODM available.

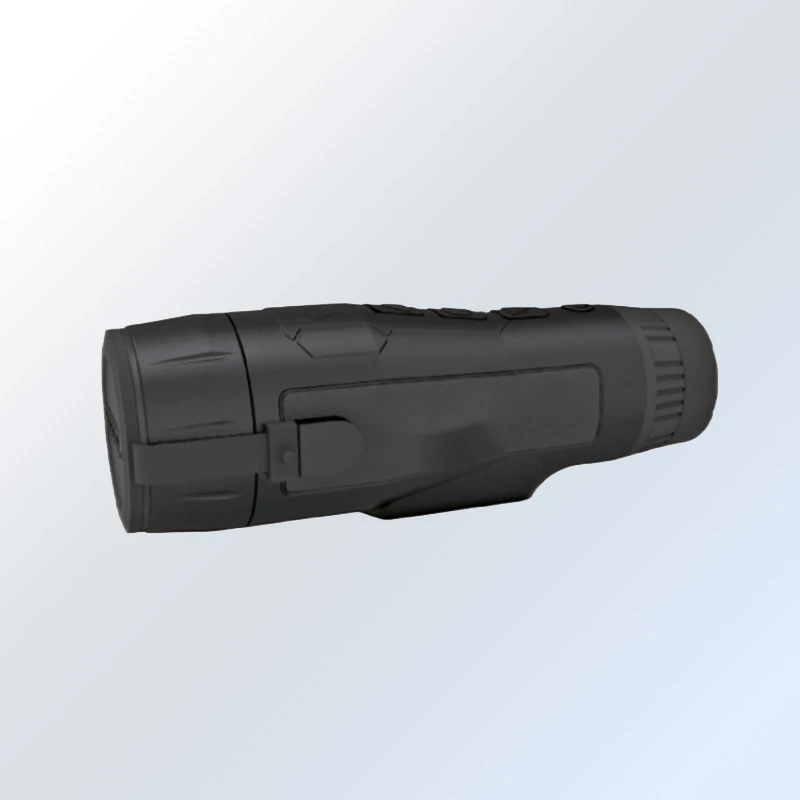

Hope-Wish handheld monocular thermal camera is professionally built for flexible mobile observation. Adopting advanced uncooled infrared detector technology, exclusive imaging circuit components and optimized AS optical system, it delivers precise target searching and clear observation in all dark environments.
Place of Origin: China
Model Number: HP-MTC4125
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW
Hope-Wish handheld monocular thermal camera is professionally built for flexible mobile observation. Adopting advanced uncooled infrared detector technology, exclusive imaging circuit components and optimized AS optical system, it delivers precise target searching and clear observation in all dark environments.
Featuring lightweight body and ultra-low power consumption, it supports long-time handheld operation. The ergonomic soft rubber grip fits human hands perfectly, suitable for both portable handheld use and fixed installation scenarios, ideal for night hunting and target searching.
Integrated with abundant practical functions including Wi-Fi transmission, auto gain, polarity conversion, reticle display, photo storage, adjustable brightness and digital zoom, it meets diverse operational demands. With standard IP66 dustproof and waterproof performance, the camera maintains stable working performance in complex and severe weather conditions.
KEY FEATURES
Equipped with uncooled infrared technology and exclusive AS optical design for accurate target detection and clear night imaging.
Ultra-light body reduces carrying burden, while low-power design supports long-duration field observation.
Humanized soft rubber grip supports handheld portable use and fixed installation for multi-scene application.
Integrates Wi-Fi, auto gain, polarity conversion, reticle, photo storage, brightness adjustment and digital zoom.
IP66 waterproof and dust-proof rating ensures reliable performance in harsh weather and complex environments.
Perfect for night hunting, outdoor patrol, target searching and all-day outdoor observation missions.
TECHNICAL SPECIFICATIONS TABLE
|
Items |
HP-MTC4125 |
|
|
Detection Distance |
Vehicle |
1500m |
|
Human |
1000m |
|
|
Recognition distance |
Vehicle |
485m |
|
Human |
335m |
|
|
Detector |
Type |
Uncooled FPA |
|
Resolution |
384×288 pixels |
|
|
Imaging |
FOV |
25mm |
|
Digital zoom |
2X/4X |
|
|
NETD |
≤40mk@30℃ |
|
|
Frame rate |
50HZ |
|
|
Focus |
Fixed and adjustment |
|
|
Spectral range |
8-14μm |
|
|
wifi |
Support |
|
|
Ranging |
Distance ranging |
By reticle |
|
Display |
Screen |
1024*768 |
|
Color palettes |
Black-hot、white-hot、red-hot、Iron |
|
|
Diopter adjustment |
Adjust by rotary knob |
|
|
Power supply |
Battery type |
Li-Ion battery，rechargeable |
|
Operating time |
5.5 hours continuous operation |
|
|
Charging |
Type C charging |
|
|
Power input |
DC 5V/2A（Micro USB） |
|
|
Environment |
Working temp. |
-20℃- +50℃ |
|
Storage temp. |
-40℃- +60℃ |
|
|
Protection class |
IP66 |
|
|
Drop resistance |
1 Meter |
|
|
Weight |
Weight |
520g |
|
Interface |
Power input |
Yes |
|
Video output |
PAL |
|
|
Type C |
Type C |
|
CUSTOMIZATION OPTIONS
Optical Lens Customization
Customizable focal length and field of view to adjust detection range and magnification for different observation distances.
Imaging Parameter Tuning
Support customized thermal palettes, brightness, contrast and zoom parameters to adapt to various outdoor environments.
Temperature Measurement Customization
Adjustable temperature range, emissivity and temperature alarm threshold for different detection scenarios.
Mounting & Accessory Customization
Optional customized brackets and accessories to switch freely between handheld and fixed monitoring modes.
Appearance & Structure Customization
Support personalized grip design and exterior treatment while maintaining IP66 protection and nitrogen sealing performance.
Function Expansion Customization
Customizable recording, storage, shortcut keys and system calibration to meet diverse field operation needs.
APPLICATION
Night patrol
Night hunting
Outdoor field exploration
Field search, rescue
