Hope-Wish develops cooled/uncooled IR lenses, thermal modules and night vision devices, with OEM & ODM available.

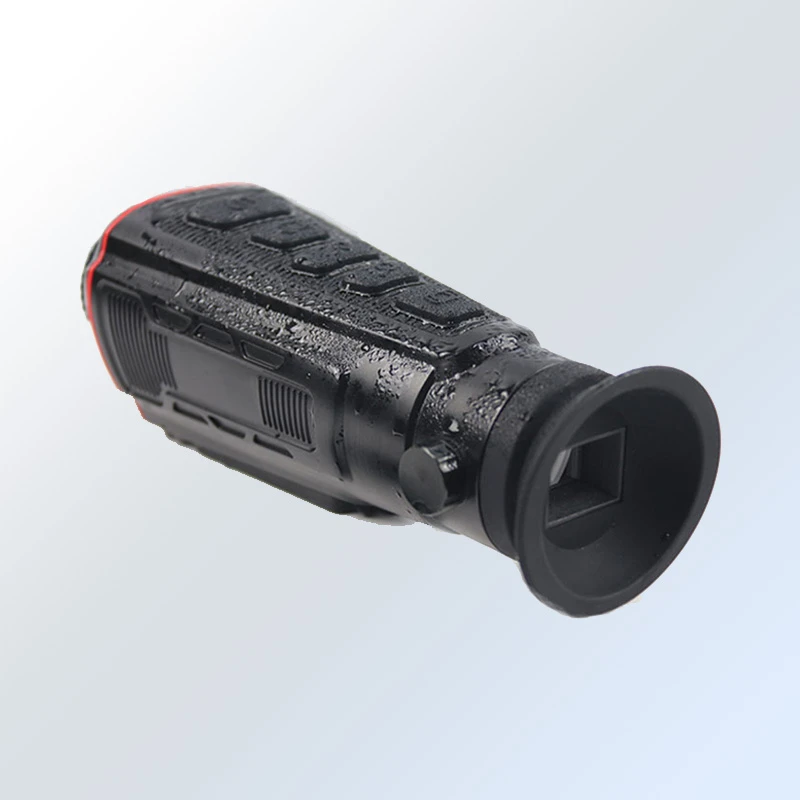

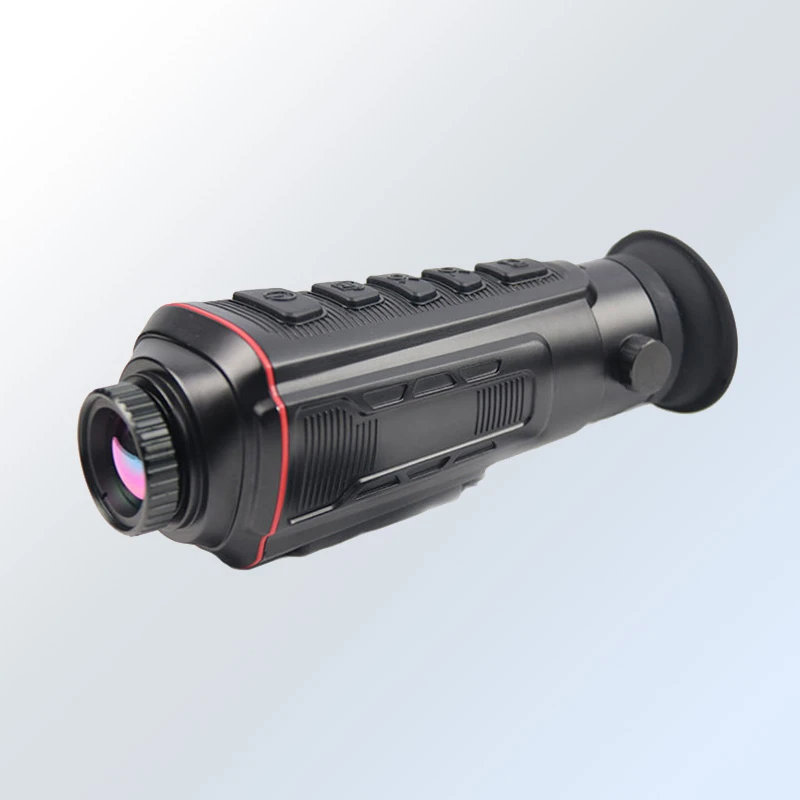

The MTC series portable thermal camera is engineered for flexible mobile observation.
Place of Origin: China
Model Number: HP-MTC4102
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW
The MTC series portable thermal camera is engineered for flexible mobile observation. Equipped with advanced uncooled infrared detector technology, exclusive imaging circuit components and optimized AS optical structure, it delivers reliable long‑range target detection and observation up to 1.5 km. Featuring ultra‑light weight and low power consumption, it ensures effortless long‑term handheld operation.Ergonomically designed with a high‑quality soft rubber grip, the MTC thermal camera supports both portable handheld use and fixed installation. It is perfectly suited for night target searching, outdoor surveillance and nighttime evidence collection. Adopting an integrated aluminum alloy housing with nitrogen sealing and IP66 waterproof and dustproof rating, it maintains stable and reliable performance in harsh weather and complex field environments.
KEY FEATURES
5th generation uncooled thermal sensor, decrease the size, weight and cost.
Aluminum alloy housing, weatherproof rate IP65, anti-rain, anti-dust.
NETD up to 50mk, higher sensitivity, little effect by rain, fog, and snow, obtain more delicate picture.
Unique AS optical design and high precision optical mechanical design, excellent image quality.
Excellent non-uniform image correct technology, good image and dynamic range, without TEC thermostatic control.
SDE image detail enhancement technology, no noise, B/W and B/W inverse color mode.
TECHNICAL SPECIFICATIONS TABLE
|
Model |
HP-MTC4102 |
|
Detection |
Vehicle 1500 |
|
Human 520 |
|
|
Identification
|
Vehicle 380 |
|
Human 180 |
|
|
Sensor |
5th generation UFPA |
|
Resolution |
384*288 |
|
Wave length |
8~14μm |
|
Digital zoom |
2x |
|
Color mode |
Hot-white/Hot-black |
|
Lens |
20mm |
|
FOV |
28°*21° |
|
Battery parameter |
Power consumption＜1W (video time); |
|
lithium battery,25500，3000 mAh ; |
|
|
Continuous working time : > 7 hours at no record, >5 hours at record. |
|
|
Starting time |
<3s |
|
Interface |
Video output |
|
Weatherproof |
IP66 |
|
Humidity |
5%～95%(non-condensing) |
|
Storage temperature |
-40℃~+70℃ |
|
Operation temp. |
-10℃~+50℃ |
|
Weight |
400g |
CUSTOMIZATION OPTIONS
Optical Lens Customization
Customizable focal length and field of view to adjust detection range and magnification for different observation distances.
Imaging Parameter Tuning
Support customized thermal palettes, brightness, contrast and zoom parameters to adapt to various outdoor environments.
Temperature Measurement Customization
Adjustable temperature range, emissivity and temperature alarm threshold for different detection scenarios.
Mounting & Accessory Customization
Optional customized brackets and accessories to switch freely between handheld and fixed monitoring modes.
Appearance & Structure Customization
Support personalized grip design and exterior treatment while maintaining IP66 protection and nitrogen sealing performance.
Function Expansion Customization
Customizable recording, storage, shortcut keys and system calibration to meet diverse field operation needs.
APPLICATION
Night patrol
Night hunting
Outdoor field exploration
Field search, rescue
