Hope-Wish develops cooled/uncooled IR lenses, thermal modules and night vision devices, with OEM & ODM available.

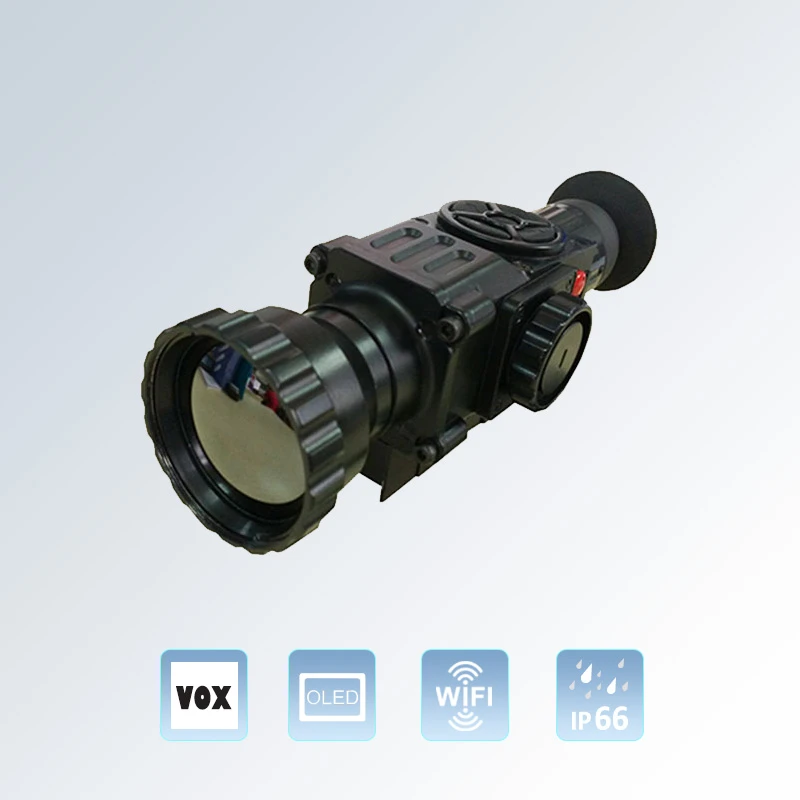

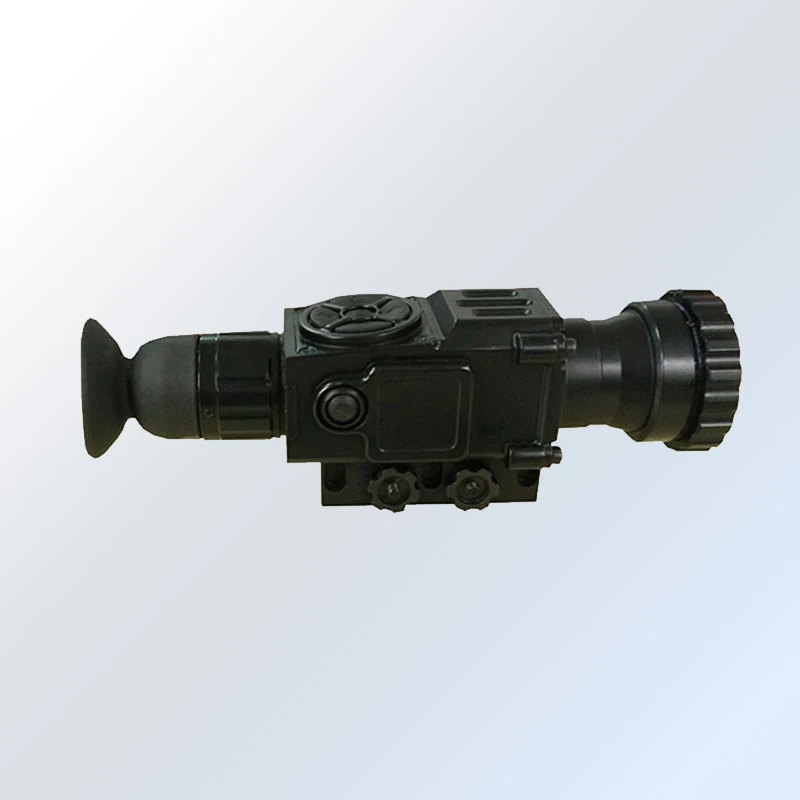

The FTC targeting thermal imaging camera is a thermal imager designed specifically for nighttime reconnaissance.
Place of Origin: China
Model Number: HP-FTC4105
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW
The FTC targeting thermal imaging camera is a thermal imager designed specifically for nighttime reconnaissance. Equipped with a high-performance 384×288 infrared detector, it outputs clear, high-resolution thermal images. Even in complete darkness or with fog and haze, it effectively detects targets, supporting both nighttime visual observation and rapid target acquisition.
Boasting low power draw and proprietary baffle-free technology, the unit features intuitive controls within a compact, rigid structure. With IP66 rated dust-water resistance, light weight, shock resistance and anti-interference capability, it delivers dependable all weather field performance.
KEY FEATURES
Resolution 384*288;
OLED Display 1024*768;
Working time up ≥ 6 hours;
Less Power Consumption
TECHNICAL SPECIFICATIONS TABLE
|
Model |
HP-FTC4105 |
|
Detector |
Uncooled FPA detector |
|
Resolution 384*288 |
|
|
Focal Length |
25mm, 35mm, 54mm,75mm |
|
FOV |
14.9°x11.2°；10.7°x8.0°； 14.9°x11.2°；10.7°x8.0°； |
|
Display |
1024X768 OLED |
|
Frame Rate |
50HZ |
|
Spectral Range |
8-14μm |
|
Zoom |
Digital zoom: 2X/4X |
|
Image Model |
Hot white/Hot black/Pseudo color |
|
Battery Type |
Built-in rechargeable battery |
|
Storage |
8G |
|
USB |
Type-C |
|
Operating Time |
6 hours continuous operation |
|
Automatic Shutdown |
Automatic shutdown 40 minutes |
|
Ingress Protection |
IP66 |
|
Working temp. |
-10℃- +45℃ |
|
Storage temp. |
-20℃- +60℃ |
|
Weight |
500g |
|
Dimension |
180x72x62mm（25mm lens） |
CUSTOMIZATION OPTIONS
Customizable Optical Lens
Focal length and field of view can be customized to adjust the detection range and magnification at different observation distances.
Imaging Parameter Optimization
Supports customizable thermal imaging color palettes, brightness, contrast, and zoom parameters to adapt to various outdoor environments.
Customizable Functionality Extensions
Customizable recording, storage, shortcut keys, and system calibration functions to meet various field operation needs.
APPLICATION
Night patrol
Night hunting
Field search, rescue
