Hope-Wish develops cooled/uncooled IR lenses, thermal modules and night vision devices, with OEM & ODM available.

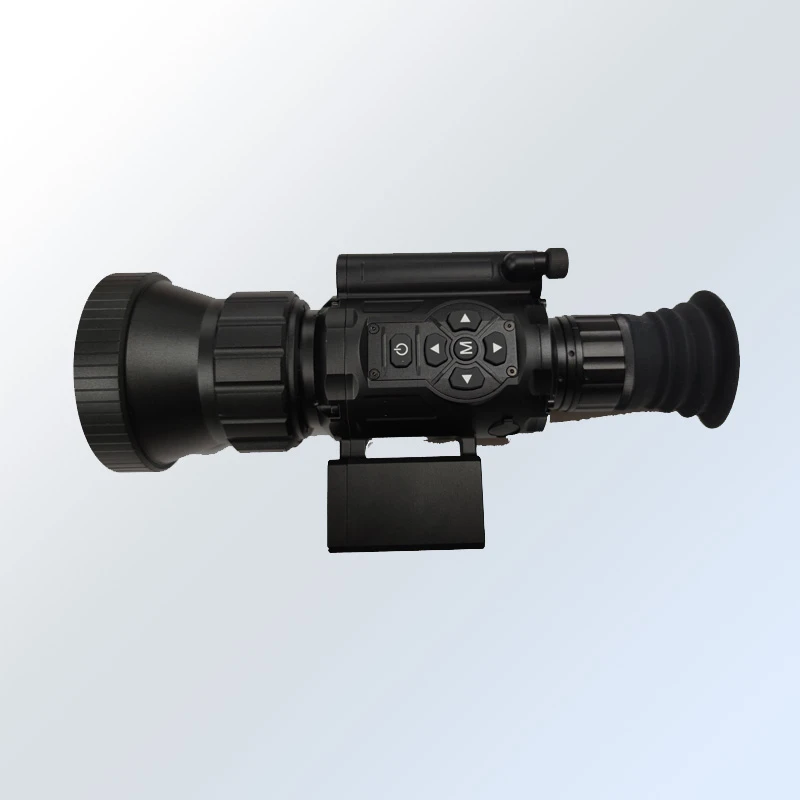

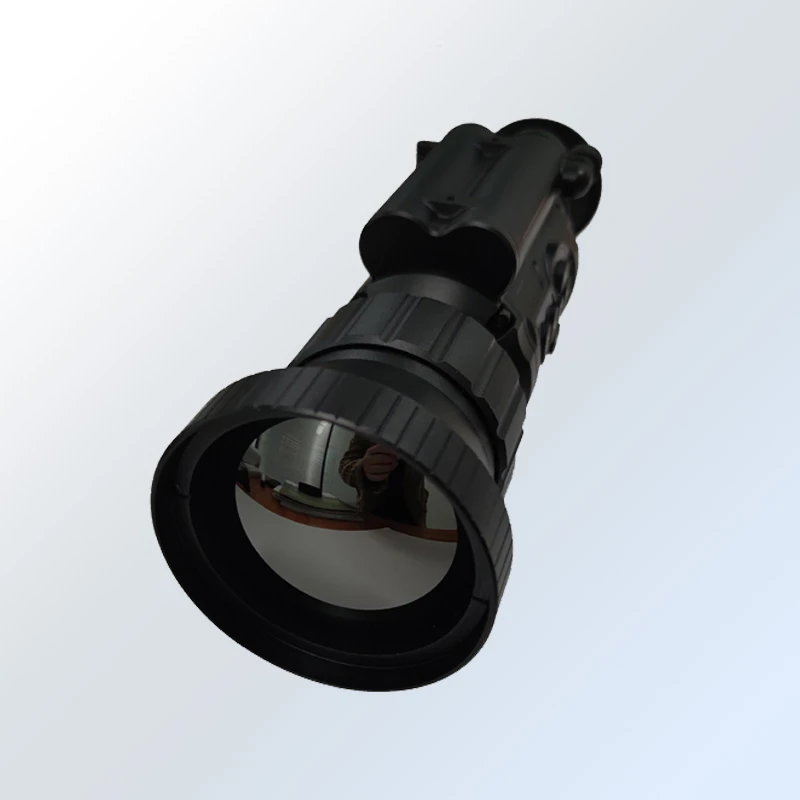

Designed for nighttime tactical scouting and target acquisition tasks, the FTC Sighting Thermal Imaging Camera is a versatile thermal sight equipped with selectable 384×288 or 640×480 high-performance infrared detectors to generate crisp, high-definition thermal images.
Place of Origin: China
Model Number: HP-FTC4107 6107
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW
Designed for nighttime tactical scouting and target acquisition tasks, the FTC Sighting Thermal Imaging Camera is a versatile thermal sight equipped with selectable 384×288 or 640×480 high-performance infrared detectors to generate crisp, high-definition thermal images. It reliably identifies targets under total darkness, heavy fog and haze caused signal disturbance, facilitating human target observation and fast target lock-on at night.
Featuring proprietary baffle-free design and ultra-low power consumption, the thermal camera comes with simple-to-operate controls and compact robust mechanical construction. Lightweight, shock-proof and anti-interfering, it achieves IP66 dust-proof and water-proof rating to guarantee stable all-weather performance in complex field conditions.
KEY FEATURES
Selectable Detector Options 384×288 / 640×480 detectors produce crisp thermal images for night-time tactical tasks.
Complex-environment Target Detection Identifies human targets in total darkness, fog, haze and firework interference for fast acquisition.
Dual-use Design Interchangeable adapters support weapon-mount for light firearms, or handheld for night reconnaissance.
Patented Baffle-free Technology Ultra-low power consumption enables extended field runtime.
Compact & Intuitive Operation Robust compact structure with easy-to-use controls.
Tactical-grade Ruggedness IP66 dust-water proof, lightweight, shock-resistant and anti-interference for all-weather deployment.
TECHNICAL SPECIFICATIONS TABLE
|
Model |
HP-FTC4107 |
HP-FTC6107 |
|
|
Thermal lens |
75mm |
||
|
Thermal Resolution |
384×288 |
640×480 |
|
|
Thermal Sensitivity |
＜50mk |
＜40mk |
|
|
Pixel |
17μm |
||
|
Spectral response |
8～14μm |
||
|
Calibration Method |
No shutter |
||
|
Frame rate |
50Hz |
||
|
FOV |
4.9×3.7 |
8.3×6.2 |
|
|
1.7m human recognition distance |
1.9km |
1.9km |
|
|
2.5m vehicle recognition distance |
2.8km |
2.8km |
|
|
Laser distance measurement |
N/A |
||
|
Video Function |
720×576,mp4/.jpg.32G |
||
|
WiFi |
Available |
||
|
Observation method |
OLED |
||
|
Display resolution |
1024×768 |
||
|
Electronic zoom |
2X,4X,6X,8X |
||
|
Picture-in-picture |
2X,4X,6X,8X |
||
|
Distance from pupil exit |
40mm |
||
|
Diopter Adjustment |
±5 |
||
|
Electronic compass |
Available |
||
|
Blind spot repair |
Available |
||
|
Pitch angle |
Available |
||
|
Hotspot tracking |
Available |
||
|
Dividing line |
6 types of crosses available |
||
|
Smart Zoom |
Crosshair Intelligent Focus in 2X 4X zoom mode |
||
|
Image modes |
White hot / Black hot / Edge / Red hot pseudo-colour / Iron red pseudo-colour / Sky |
||
|
Start-up time |
Less than 10 seconds |
Less than 15 seconds |
|
|
Aerial plug |
PAL composite video output, external power supply +5V |
||
|
Batteries |
2 x 18650 |
||
|
Standby time |
＞8 hours |
||
|
Housing material |
7075 aircraft alloy aluminium |
||
|
Operating temperature |
-40℃~+60℃ |
||
CUSTOMIZATION OPTIONS
Customizable Optical Lens
Focal length and field of view can be customized to adjust the detection range and magnification at different observation distances.
Imaging Parameter Optimization
Supports customizable thermal imaging color palettes, brightness, contrast, and zoom parameters to adapt to various outdoor environments.
Customizable Functionality Extensions
Customizable recording, storage, shortcut keys, and system calibration functions to meet various field operation needs.
APPLICATION
Night patrol
Night hunting
Field search, rescue
