Hope-Wish develops cooled/uncooled IR lenses, thermal modules and night vision devices, with OEM & ODM available.
The HP-SADAS100 vehicle monitoring system is adaptable to various harsh weather conditions, such as high temperatures, low temperatures, high humidity, sandstorms, salt spray, and high altitudes.
Place of Origin: China
Model Number: HP-SADAS100
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW
The HP-SADAS100 vehicle monitoring system is adaptable to various harsh weather conditions, such as high temperatures, low temperatures, high humidity, sandstorms, salt spray, and high altitudes. Furthermore, the system is equipped with an onboard shockproof design to ensure stable operation under various road conditions, effectively meeting the all-weather assisted driving needs of vehicles operating in the field, day and night, and in adverse weather conditions.

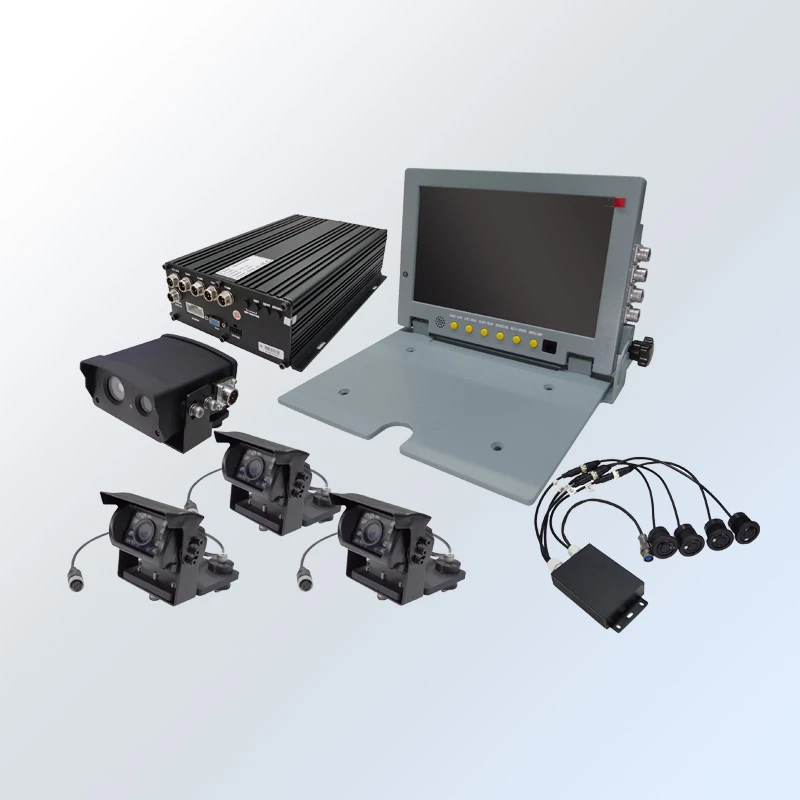

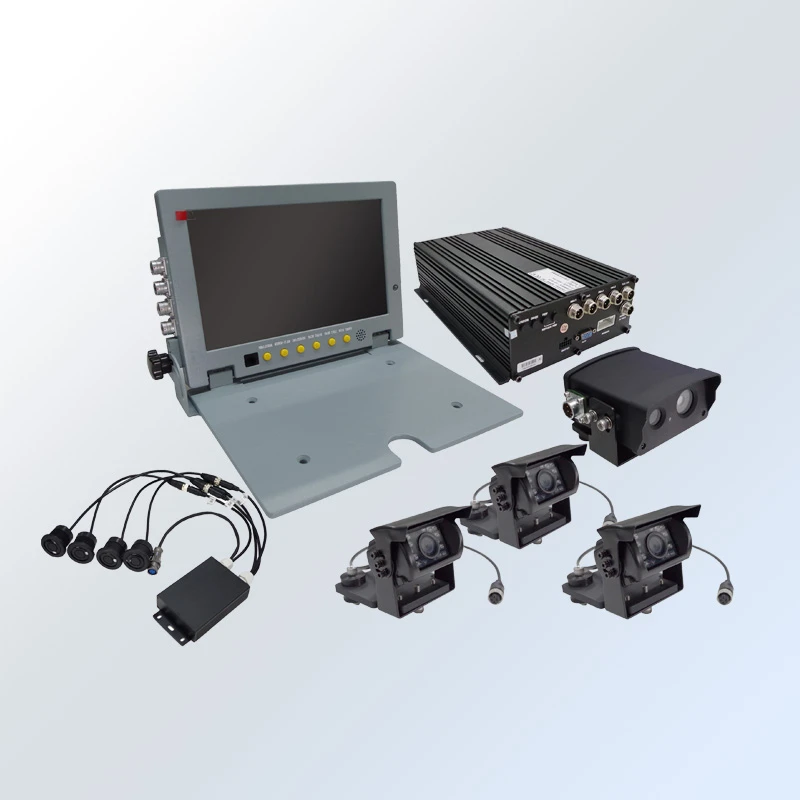

The HP-SADAS100 assisted driving system consists of a front-view component (one laser night vision camera), a rear-view component (one wide-angle infrared camera and four reversing radars), a side-view component (one wide-angle infrared camera each for left and right sides), an integrated display and control component (display and control unit and main unit), and cables. The system adopts a modular design, allowing for the combination of various subsystems for user convenience.
KEY FEATURES
Modular Standardized Design
Modular, universal structure supports flexible function configuration. It features high reliability with convenient fault localization and simple maintenance.
All-weather Day‑night Imaging Capacity
Low-light CCD sensor matched with ultra‑uniform near‑infrared laser illumination ensures stable assisted driving around the clock.
Vision-radar Dual Warning System
Panoramic cameras plus ultrasonic radar realize visual‑audio dual monitoring and early‑warning, offering comprehensive 3‑D driving protection.
Versatile Display Modes
Multiple view modes support automatic switching based on vehicle status or manual adjustment to satisfy varied monitoring requirements.
Vehicle grade Anti vibration Performance
Shock-absorbing and impact‑resistant construction fulfils anti‑vibration standards for onboard equipment on rough roads.
Excellent Environmental Adaptability
Boasts strong environmental adaptability, providing dependable protection against water, moisture, wind‑sand, salt spray and solar radiation.
TECHNICAL SPECIFICATIONS TABLE
|
Model |
HP-SADAS100 Vehicle-Mounted Surveillance Systems |
|
Forward-looking components |
≥120m with auxiliary light source illumination
|
|
Rearview Components |
1.Camera Type: Low-light CMOS 2. Detection Distance: ≥13m without auxiliary light source in 2×10⁻³ Lux environment; ≥30m with auxiliary light source illumination 3. Focal Length: 12mm 4. Resolution: 1280(H)×720(V) 5. Auxiliary Light Source: Infrared lamp, controllable 6. Mounting Method: Vehicle-mounted anti-vibration bracket, adjustable direction 7. Radar Probe Type: 40KHz ultrasonic ranging sensor 8. Radar Detection Range: 0.1m～5m 9. Radar Detection Accuracy: 0.1m 10. Dimensions: Rearview image ≤120mm×80mm×90mm; Radar control box ≤135mm×75mm×30mm |
|
Side-view components |
1. Camera Type: Low-light CMOS 2. Detection Distance: ≥13m without auxiliary light source in 2×10⁻³ Lux environment; ≥30m with auxiliary light source illumination 3. Focal Length: 12mm 4. Resolution: 1280(H)×720(V) 5. Auxiliary Light Source: Infrared lamp, controllable 6. Mounting Method: Vehicle-mounted anti-vibration bracket, adjustable direction 7. Dimensions: Rearview image ≤120mm×80mm×90mm |
|
Display and control unit |
1. Display Screen Size: 10.2 inches 2. Resolution: 800×480 3. Viewing Angle: 222.0(W)×132.48(H) mm 4. Display Screen Installation Method: Stand-mounted or wall-mounted, tiltable, with a minimum tilt angle of 90° on one side 5. System Buttons: Includes front view, left view, right view, rear view, multi-screen, auxiliary lighting, power, etc. |
|
Main unit |
1. Video Display: Single screen/4-screen/8-screen 2. Video Recording Format: H.264 3. Storage Media: Vehicle-mounted hard disk recorder 4. Hard Disk Capacity: 1TB SATA 2.5-inch, vehicle-mounted with shock absorption 5. Recording Start Method: Automatic recording upon power-on 6. Control Method: Wireless remote control + display screen button holes 7. Video Export: USB interface |
|
Complete unit |
1. Power Supply Voltage: DC 9V～36V 2. Maximum Power: ≤40W 3.Operating Temperature: -25℃～+55℃ (Military Standard Version: -40℃～+65℃) 4.Shock and Vibration: Complies with the relevant regulations for "Automobile and Containerized" loading equipment in GJB367A-2001 5. Low Atmospheric Pressure: Suitable for use at altitudes up to 5000 meters 6. Humidity and Heat: Complies with the relevant regulations in GJB367A-2001 7. Protection Rating: IP66, supports short-term immersion in water 8. MTBF: ≥3000h 9. MTTR: ≤0.5h |
CUSTOMIZATION OPTIONS
Camera configuration
Adjustable number and placement of front/rear/side cameras based on vehicle type and blind spot coverage needs
Radar integration
Optional addition or removal of ultrasonic radar sensors, with adjustable detection range and sensitivity settings
Display interface
Customizable multi-screen layouts (single / 4-split / 8-split), on-screen display content, and button functions
Auxiliary lighting
Selectable laser or infrared illumination, with manual or automatic light control modes
Storage capacity
Upgradeable HDD/SSD storage options for extended video recording duration
Mounting solutions
Tailored brackets and housings to fit various vehicle models, including armored vehicles, trucks, buses, and specialized industrial vehicles
Control methods
Customizable wireless remote control or integrated panel controls per user preference
Video export and connectivity
Flexible data retrieval options (USB, network, or wireless transfer) and integration with existing fleet management systems
Power configuration
Adaptable to different vehicle electrical systems within the DC 9V–36V range
APPLICATION
Industrial facilities and heavy machinery operations
Financial logistics and armored transport
