Engineered for field vehicle deployment, the HP‑SADAS200 Vehicle‑Mounted Surveillance System integrates abundant functional modules while keeping straightforward operation and high dependability.
Place of Origin: China
Model Number: HP-SADAS200
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW
Engineered for field vehicle deployment, the HP‑SADAS200 Vehicle‑Mounted Surveillance System integrates abundant functional modules while keeping straightforward operation and high dependability. Optimized against salt spray, dust storm, humidity and high‑altitude climate, it copes with various adverse natural environments. Special anti‑vibration structural design offsets vibration from bumpy roads. It delivers reliable day‑and‑night surveillance support and fulfills all‑weather assisted driving demands for field‑operating vehicles.

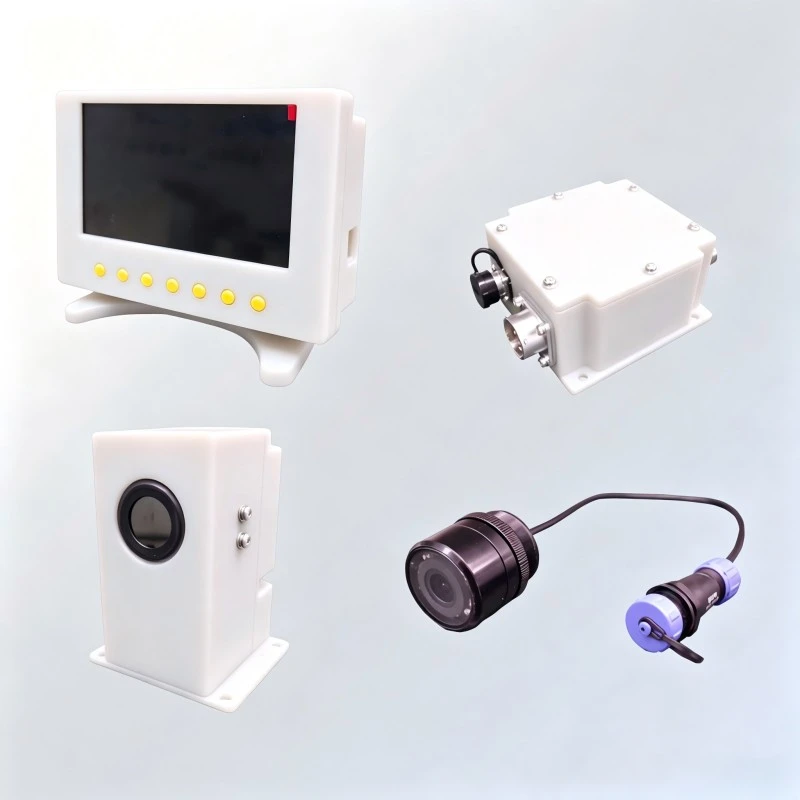

The HP-SADAS200 Vehicle-Mounted Surveillance Systems consist of a forward-looking module (one infrared thermal imager), a rear-looking module (one wide-angle infrared camera), an integrated display and control module (display and control unit, main unit box), and cables. The system adopts a modular design, and the various subsystems can be combined for user convenience.
KEY FEATURES
Flexible Modular Architecture
Standardized modular design brings rich configurable functions, high stability and easy troubleshooting.
Round‑the‑Clock Assisted Driving
Low‑light CCD with ultra‑uniform near‑infrared laser lighting delivers reliable imaging day and night.
Audio‑visual Dual Early‑warning
Panoramic cameras cooperate with ultrasonic radar to provide full‑range three‑dimensional driving protection.
Customizable Display Options
Display modes auto‑switch with driving status or can be manually selected for different usage scenarios.
Rugged Anti‑shock Onboard Build
Damping impact‑resistant structure adapts to heavy vibration from various poor road conditions.
Harsh‑environment Resistance
Well adapted to tough field conditions, with multi‑layer protection from water, humidity, sand, salt spray and solar radiation.
TECHNICAL SPECIFICATIONS TABLE
|
Model |
HP-SADAS200 Vehicle-Mounted Surveillance Systems |
|
Side-view components |
1. Detection Range: detection range 200m~300m. 2. Sensor Type: Uncooled infrared focal plane array, VOx 3. Resolution: 384 × 288, 17μm 4. Focal Length: 19mm 5. Field of View: 28° × 21° 6. Imaging Startup Time: ≤8 seconds 7. Focusing: Automatic (25m to infinity) 8. Automatic Heater: When the window temperature is below 2°C, the heater removes a 2mm thick layer of ice within 15 minutes. 9. Power Consumption: 2W (steady-state), maximum 6W (when the window heater is activated) Dimensions: 140mm × 100mm × 90mm |
|
Display and control unit |
1. Sensor: Low-light CMOS 2. Resolution: ≥656×492 (NTSC/PAL) 3. Minimum Illumination: ≥0.5Lux 4. Focal Length: 2.1mm 5. Field of View: ≥120 degrees 6. Other Functions: Automatic White Balance, Automatic Infrared Illumination 7. Installation Method: Concealed Installation 8.Dimensions: Ф30mm×40mm |
|
Main unit |
1. Display Size: 7 inches 2. Resolution: 800×480 3. Brightness: ≥200cd/m² 4. Screen Viewing Area: 133.2mm×73.8mm 5. Display Installation Method: Stand-mounted 6. System Buttons: Includes Menu, Up, Down, Confirm, Back, Front View, Back View, etc. 7. Dimensions: 210mm×140mm×160mm |
|
Complete unit |
1. Storage Media: SSD/miniSD Card 2. Storage Capacity: ≥32GB 3. Video Recording Format: H.264 4. Recording Startup Method: Automatic recording upon power-on 5. Video Retrieval and Playback: Supported 6. Dimensions: 130mm × 100mm × 50mm |
|
Side-view components |
1. Power Supply Voltage: DC 9V～36V 2. Maximum Power: ≤25W 3. Operating Temperature: -25℃～+55℃ (Military Standard Version: -40℃～+65℃) 4. Shock and Vibration: Complies with the relevant regulations for "Automobile and Containerized Vehicle" loading equipment in GJB367A-2001 5. Low Atmospheric Pressure: Suitable for use at altitudes up to 5000 meters 6. Humidity and Heat: Complies with the relevant regulations in GJB367A-2001 7. Protection Rating: IP66, supports short-term immersion in water 8. MTBF:≥3000h 9. MTTR:≤0.5h |
CUSTOMIZATION OPTIONS
Camera configuration
Adjustable number and placement of front/rear/side cameras based on vehicle type and blind spot coverage needs
Radar integration
Optional addition or removal of ultrasonic radar sensors, with adjustable detection range and sensitivity settings
Display interface
Customizable multi-screen layouts (single / 4-split / 8-split), on-screen display content, and button functions
Auxiliary lighting
Selectable laser or infrared illumination, with manual or automatic light control modes
Storage capacity
Upgradeable HDD/SSD storage options for extended video recording duration
Mounting solutions
Tailored brackets and housings to fit various vehicle models, including armored vehicles, trucks, buses, and specialized industrial vehicles
Control methods
Customizable wireless remote control or integrated panel controls per user preference
Video export and connectivity
Flexible data retrieval options (USB, network, or wireless transfer) and integration with existing fleet management systems
Power configuration
Adaptable to different vehicle electrical systems within the DC 9V–36V range
APPLICATION
Industrial facilities and heavy machinery operations
Financial logistics and armored transport
