HP‑SADAS300 Vehicle‑Mounted Surveillance System boasts rich functions, easy manipulation and solid system stability.
Place of Origin: China
Model Number: HP-SADAS300
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW
HP‑SADAS300 Vehicle‑Mounted Surveillance System boasts rich functions, easy manipulation and solid system stability. Capable of working under extreme temperature, humid, sand‑storm, salt‑spray and high‑altitude scenarios. Equipped with vehicle‑specific anti‑vibration design to adapt to different road conditions, it provides powerful all‑weather day‑night auxiliary driving support for field vehicles.

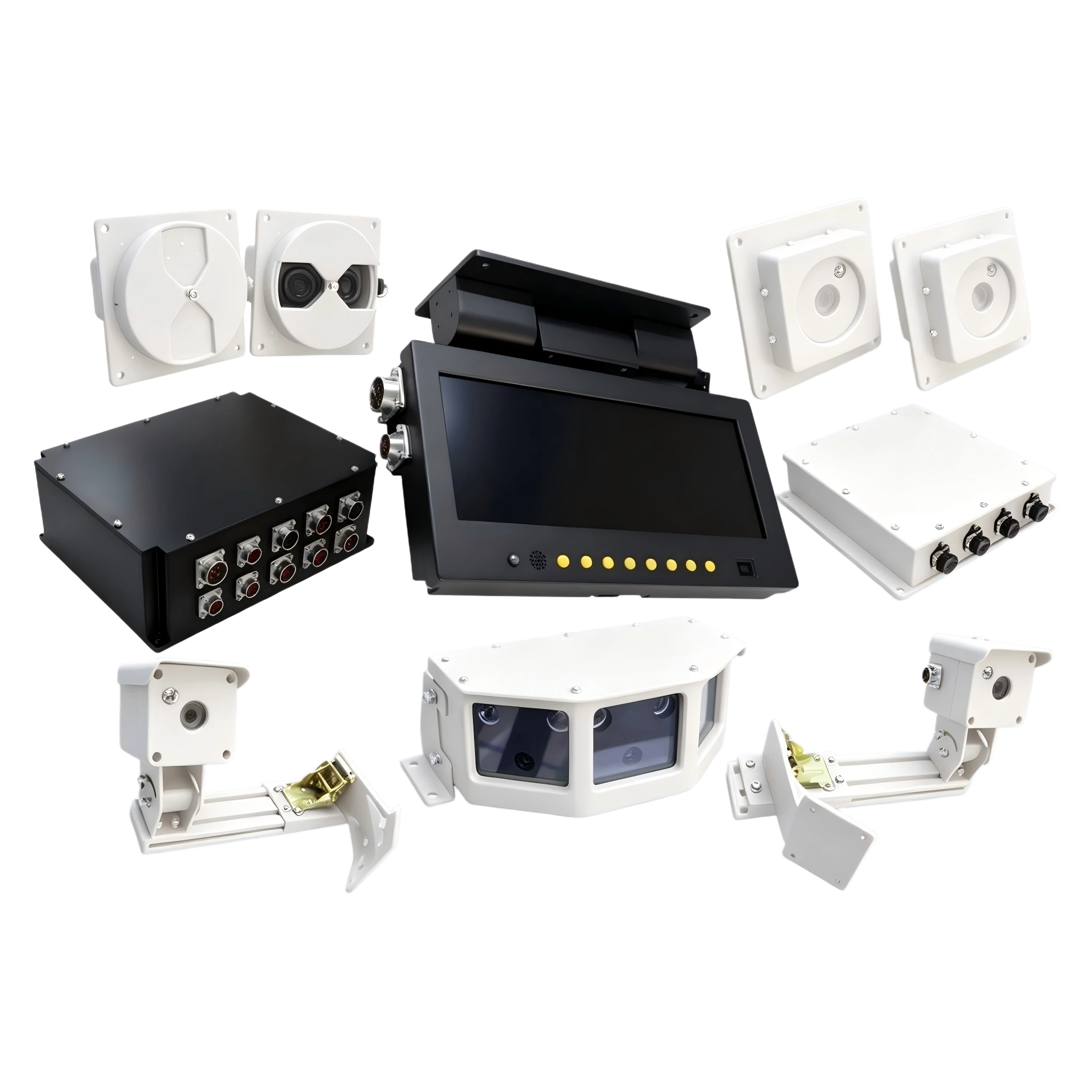

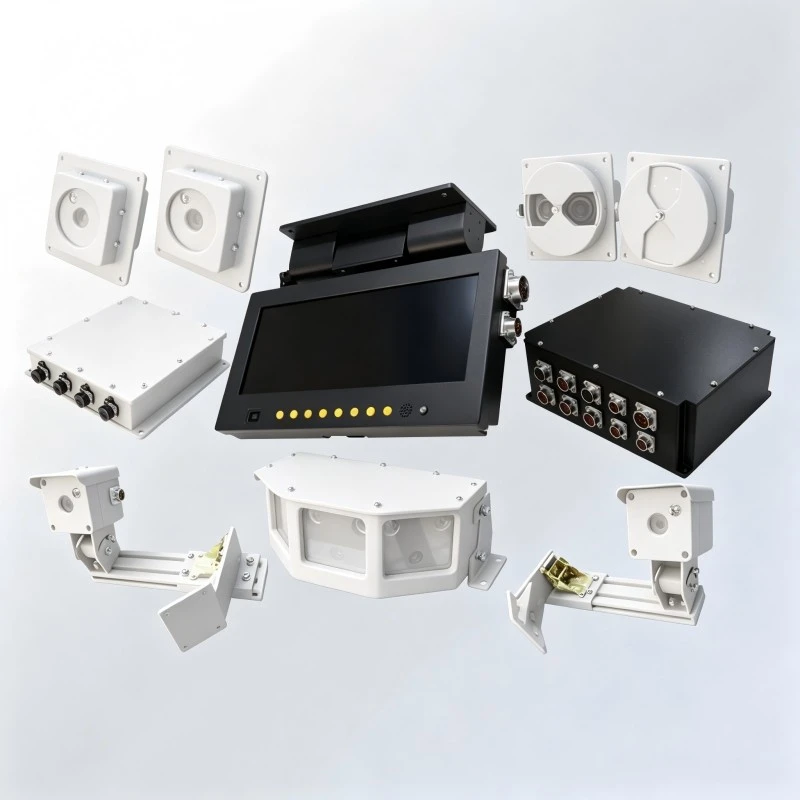

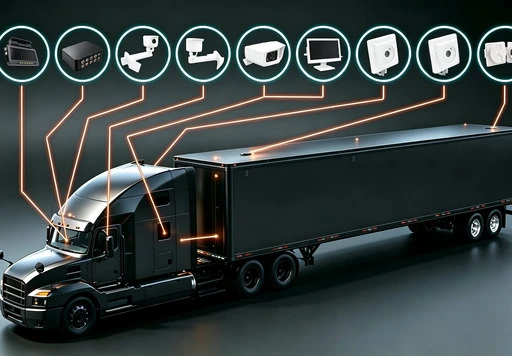

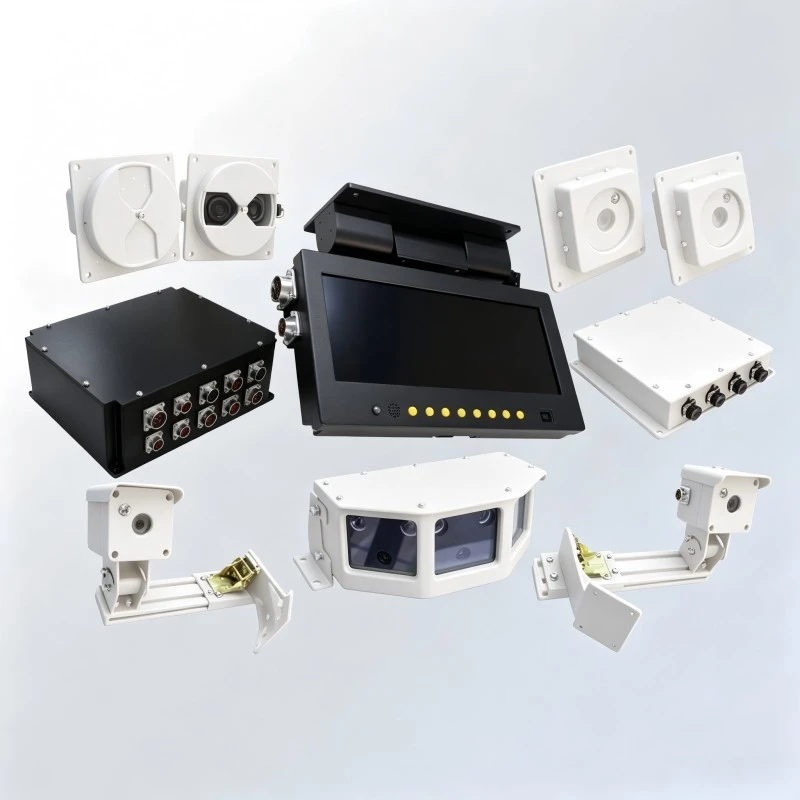

The HP-SADAS300 Vehicle-Mounted Surveillance Systems consist of a front-view module (one infrared camera module with three cameras stitched together), a rear-view module (two rear-view infrared cameras, two reversing radars, and one radar control box), a side-view module (one left and one right-view infrared camera), an integrated display and control module (one display and control unit and one main unit box), and cables. The system adopts a modular design, and the various subsystems can be combined for user convenience.
KEY FEATURES
Modular standardized design, flexible configuration, high reliability and easy maintenance
Low‑light CCD + ultra‑uniform near‑infrared laser illumination for day‑night all‑weather assisted driving
Panoramic camera & ultrasonic radar for visual‑audio dual warning and 3D driving protection
Multiple display modes with auto‑switch / manual selection to meet diverse monitoring demands
Shock‑absorbing impact‑resistant design adapts to vibration of onboard devices on adverse roads
Great environmental adaptability, resistant to water, moisture, wind‑sand, salt spray and solar radiation for outdoor onboard applications.
TECHNICAL SPECIFICATIONS TABLE
|
Model |
HP-SADAS300 Vehicle-Mounted Surveillance Systems |
|
Front View Component |
1. Camera Type: Low-light CMOS 2. Detection Distance: ≥30m without auxiliary light source ; ≥80m with auxiliary light source illumination 3. Field of View: 120°±5° (H) × 34°±5° (V) 4. Resolution: ≥720 (H) × 576 (V) 5. Auxiliary Light Source: Infrared lamp, controllable 6. Dimensions: ≤240mm × 180mm × 105mm |
|
Rear View Component |
1. Camera Type: Low-light CMOS 2. Detection Distance: ≥20m without auxiliary light source; ≥40m with auxiliary light source illumination 3. Field of View: 78°±5° (H) × 57°±5° (V) 4. Resolution: ≥720 (H) × 576 (V) 5. Auxiliary Light Source: Controllable infrared lamp 6. Radar Probe: 40kHz ultrasonic ranging sensor 7. Radar Detection Range: 0.1m～5m 8. Radar Detection Accuracy: 0.1m 9. Dimensions: Rearview image ≤160mm×160mm×100mm; Radar control box ≤135mm×75mm×30mm |
|
Side View Component |
1. Camera Type: Low-light CMOS 2. Detection Distance: ≥10m without auxiliary light source in 2×10⁻³ Lux environment; ≥20m with auxiliary light source illumination 3. Field of View: 75°±5° (H) × 55°±5° (V) 4. Resolution: ≥720 (H) × 576 (V) 5. Auxiliary Light Source: Controllable infrared lamp 6. Dimensions: Rearview image ≤100mm × 100mm × 110mm 7. Adjustment Bracket: Telescopic and tiltable, telescopic range 0～200mm, tilt angle ≥90° |
|
Display and Control Unit |
1. Display Screen Size: 12.3 inches 2. Resolution: 1920×720
3. Installation Method: Wall-mounted, tiltable, tilting at least 90° on one side 4. System Buttons: Includes front view (slicing), front surround view, rear view, rear surround view, video output, channel selection, lights, power, etc. |
|
Main Unit |
1. Video recording storage: Continuous storage time ≥ 48 hours 2. Storage medium: Vehicle-mounted hard disk video recorder 3. Installation location: Under the driver, outside the cab 4. System video export and playback operations |
|
Complete Unit |
1. Power Supply Voltage: DC 9V～36V 2. Maximum Power: ≤100W 3. Operating Temperature: -25℃～+55℃ (Military Standard Version: -40℃～+65℃) 4. Shock and Vibration: Complies with the relevant regulations for "Automobile and Containerized" loading equipment in GJB367A-2001 5. Low Atmospheric Pressure: Suitable for use at altitudes up to 5000 meters 6. Humidity and Heat: Complies with the relevant regulations in GJB367A-2001 7. Protection Rating: IP66, supports short-term immersion in water 8. MTBF:≥3000h 9. MTTR:≤0.5h |
CUSTOMIZATION OPTIONS
Camera configuration
Adjustable number and placement of front/rear/side cameras based on vehicle type and blind spot coverage needs
Radar integration
Optional addition or removal of ultrasonic radar sensors, with adjustable detection range and sensitivity settings
Display interface
Customizable multi-screen layouts (single / 4-split / 8-split), on-screen display content, and button functions
Auxiliary lighting
Selectable laser or infrared illumination, with manual or automatic light control modes
Storage capacity
Upgradeable HDD/SSD storage options for extended video recording duration
Mounting solutions
Tailored brackets and housings to fit various vehicle models, including armored vehicles, trucks, buses, and specialized industrial vehicles
Control methods
Customizable wireless remote control or integrated panel controls per user preference
Video export and connectivity
Flexible data retrieval options (USB, network, or wireless transfer) and integration with existing fleet management systems
Power configuration
Adaptable to different vehicle electrical systems within the DC 9V–36V range
APPLICATION
Industrial facilities and heavy machinery operations
Financial logistics and armored transport
