Hope-Wish develops cooled/uncooled IR lenses, thermal modules and night vision devices, with OEM & ODM available.

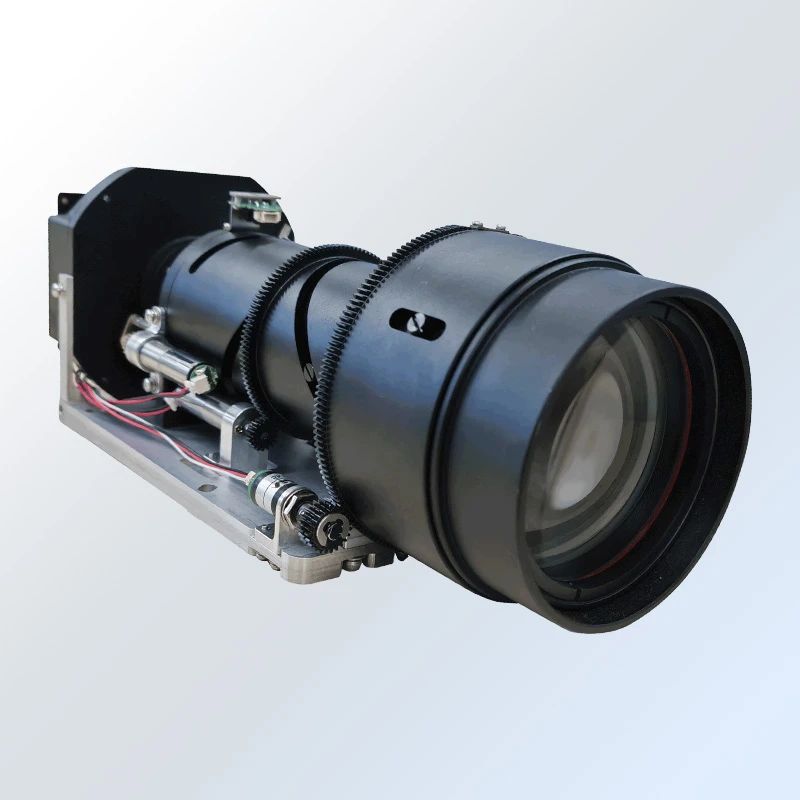

HP-HDZ2050M HD long-focus visible module uses 1/1.7-inch high-performance 2MP CMOS sensor.
Place of Origin: China
Model Number: HP-HDZ2050M
Minimum Order Quantity: 1 set
PRODUCT OVERVIEW
HP-HDZ2050M HD long-focus visible module uses 1/1.7-inch high-performance 2MP CMOS sensor. It integrates intelligent image processing, supporting WDR, BLC, AWB, digital noise reduction, EIS and strong light suppression. A high-precision encoder enables steady zoom and focus control. Optical-electronic dual fog penetration extends observation range by up to 1.7 times in fog and haze. TCS temperature compensation ensures clear imaging under sharp temperature changes. Built-in intelligent detection functions improve automatic emergency response.
KEY FEATURES
Adopts mature components; all hardware, software and algorithms are independently self-developed.
HD visible camera with large-aperture telephoto lens and high-magnification optical zoom satisfies low-light and long-distance monitoring requirements.
Integrated high-precision 3A algorithms paired with precision encoder enable fast, accurate auto refocusing against variations in object distance, scenes and temperature.
Special built-in image enhancement algorithm optimizes image details under foggy, humid and dusty conditions.
Equipped with TCS temperature compensation to deliver stable clear imaging amid dramatic temperature fluctuations.
Outstanding optical axis stability and consistency guarantee sharp, accurate imagery. It performs reliably for tracking, reconnaissance and surveillance.
TECHNICAL SPECIFICATIONS TABLE
|
Parameter |
Specification |
|
Detection |
Vehicle 18000m, Human 8000m; |
|
Recognition |
Vehicle 11000m, Human 5000m； |
|
Image Sensor |
2MP color-to-black CMOS sensor |
|
Lens |
25mm～500mm, 20× continuous optical zoom, autofocus |
|
Mechanical Performance |
Excellent low-temperature adaptability and mechanical clearance performance, 3-pixel axis drift |
|
Network Interface |
IP network interface with customizable interface |
|
Supported Protocols |
ONVIF / RTSP / GB/T28181 |
|
Weight |
2 kg |
CUSTOMIZATION OPTIONS
Optical customization
Adjust focal length, zoom ratio, F-number and DLC coating parameters
Structural customization
Modify lens size, interface, IP rating and heat dissipation design
Motor control customization
Optimize zoom/focus speed, communication protocol and drive mode
Brand customization
logo, neutral packaging and branded user manuals
Function customization
Custom calibration parameters, matched SDK for detectors
OEM & ODM full development
Exclusive optical scheme and integrated thermal lens modules
APPLICATION
Ecological and environmental monitoring
Highways and railways monitoring
