5.5-180mm Visible Light Camera Module

PRODUCT OVERVIEW

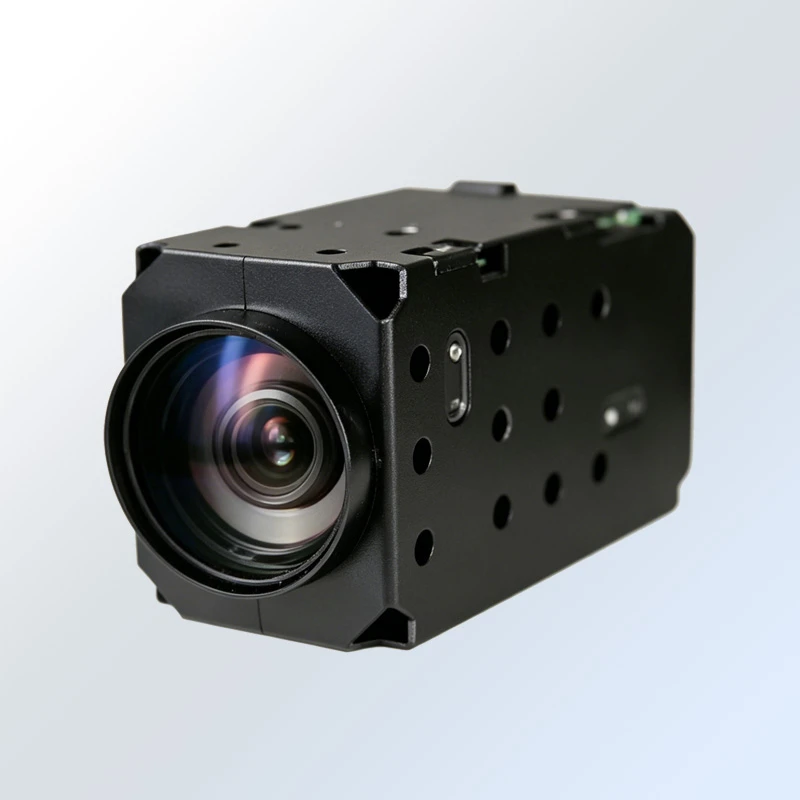

HP-HDZ1933 integrated HD visible module uses a 1/2.8-inch low-light color-to-black CMOS detector with 2 Mega pixel. It is equipped with an infrared-corrected lens with an aperture of F1.5–F4.0 and a continuous zoom range of 4.7mm–141mm, meeting the monitoring needs of long-distance and complex environments such as railways, forests, oil fields, rivers, and highways.

The internal industrial-grade embedded control electronics system enables high-precision and reliable control of the camera's zoom and focus. It supports image enhancement functions such as wide dynamic range, backlight compensation, automatic white balance, digital noise reduction, electronic image stabilization, and strong light suppression, ensuring image clarity and realism in various application scenarios. It features TCS temperature compensation, maintaining clear imaging even with drastic temperature changes. It integrates intelligent analysis functions such as motion detection, area intrusion detection, boundary crossing detection, and automatic tracking, as well as abnormal target behavior detection functions such as loitering, lingering, moving in the wrong direction, and gathering, meeting the needs of automatic monitoring of various events.

KEY FEATURES

High-magnification visible light optical module for clear imaging and long operating distance;

Large-area HD visible light camera, large-aperture telephoto lens, and high-magnification optical zoom meet various low-light, long-distance night vision surveillance needs;

Built-in superior high-precision 3A algorithm, combined with a high-precision encoder, enables faster and more accurate focusing, and can quickly and automatically refocus to address blurring caused by changes in object distance, scene, and temperature;

Internal dedicated image processing enhancement algorithm enhances image details in environments with fog, moisture, and dust;

Features optical and electronic dual fog-penetrating capabilities, effectively extending the visible light range by up to 1.7 times in adverse weather conditions such as fog and haze.

TECHNICAL SPECIFICATIONS TABLE

Parameter	Specification
Detection	Vehicle 4600m, Human 2000m;
Recognition	Vehicle 2200m, Human 1000m；
Image Sensor	2MP color-to-black CMOS sensor
Lens	4.7～141mm continuous optical zoom, autofocus
Network Interface	IP network interface, supports ONVIF / RTSP / GB/T28181 protocols
Weight	300g
