Continuous Zoom Visible Light Camera Module

PRODUCT OVERVIEW

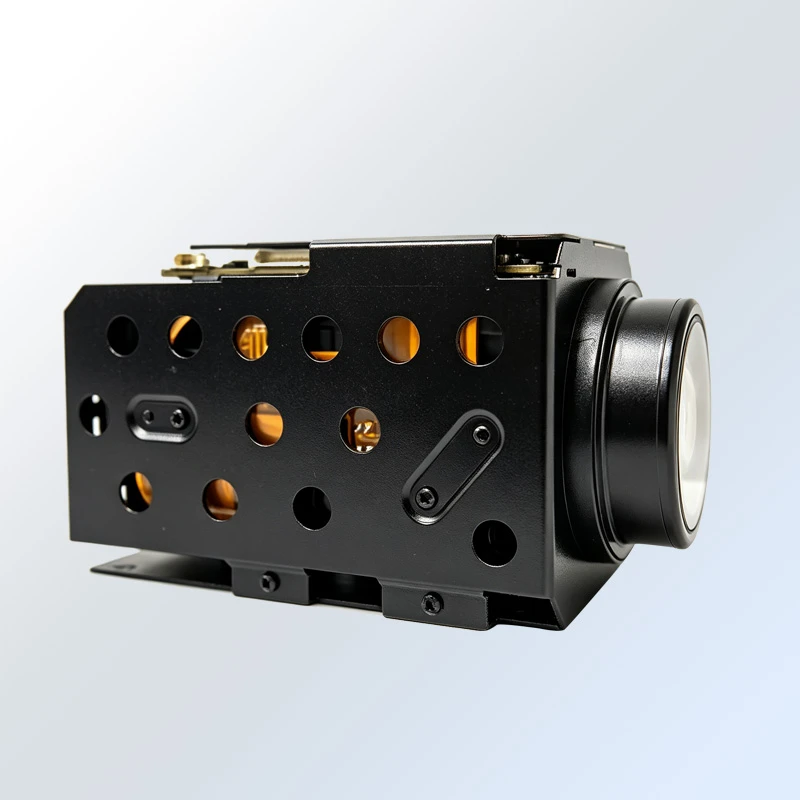

HP-HDZ4126 integrated HD visible camera uses a 1/1.8-inch 4MP low-light CMOS sensor. Featuring a 6.6–260mm F1.6–F5.2 continuous zoom lens with IR correction, it meets long-distance outdoor monitoring demands.

Industrial embedded control guarantees stable zoom and focus. Dual optical-electronic fog penetration improves visibility in foggy weather. Multiple image optimization functions and self-developed AI ISP achieve full-color imaging under extremely low light.

Pre-integrated intelligent analytics support target tracking and various abnormal behavior detection for diverse monitoring tasks.

KEY FEATURES

High-magnification visible optical module delivers sharp imaging and extended detection range.

Equipped with large-area HD sensor and large-aperture telephoto zoom lens to satisfy low-light and long-distance night surveillance requirements.

Integrated advanced high-precision 3A algorithms and precision encoder enable rapid, accurate focusing. It auto-refocuses to eliminate blurring induced by varying object distance, scenes and temperature drift.

Embedded specialized image enhancement algorithm improves target details under foggy, humid and dusty conditions.

Supports optical & electronic dual fog penetration, extending visible observation distance up to 1.7 times in fog and haze.

TECHNICAL SPECIFICATIONS TABLE

Parameter	Specification
Detection	Vehicle 12000m, Human 4800m;
Recognition	Vehicle 7500m, Human 3000m；
Image Sensor	4MP color-to-black CMOS sensor, low-light full-color, AIISP
Lens	6.6mm～260mm continuous optical zoom, autofocus
Network Protocol	IP network interface, supports ONVIF / RTSP / GB/T28181 protocols
Weight	500g
